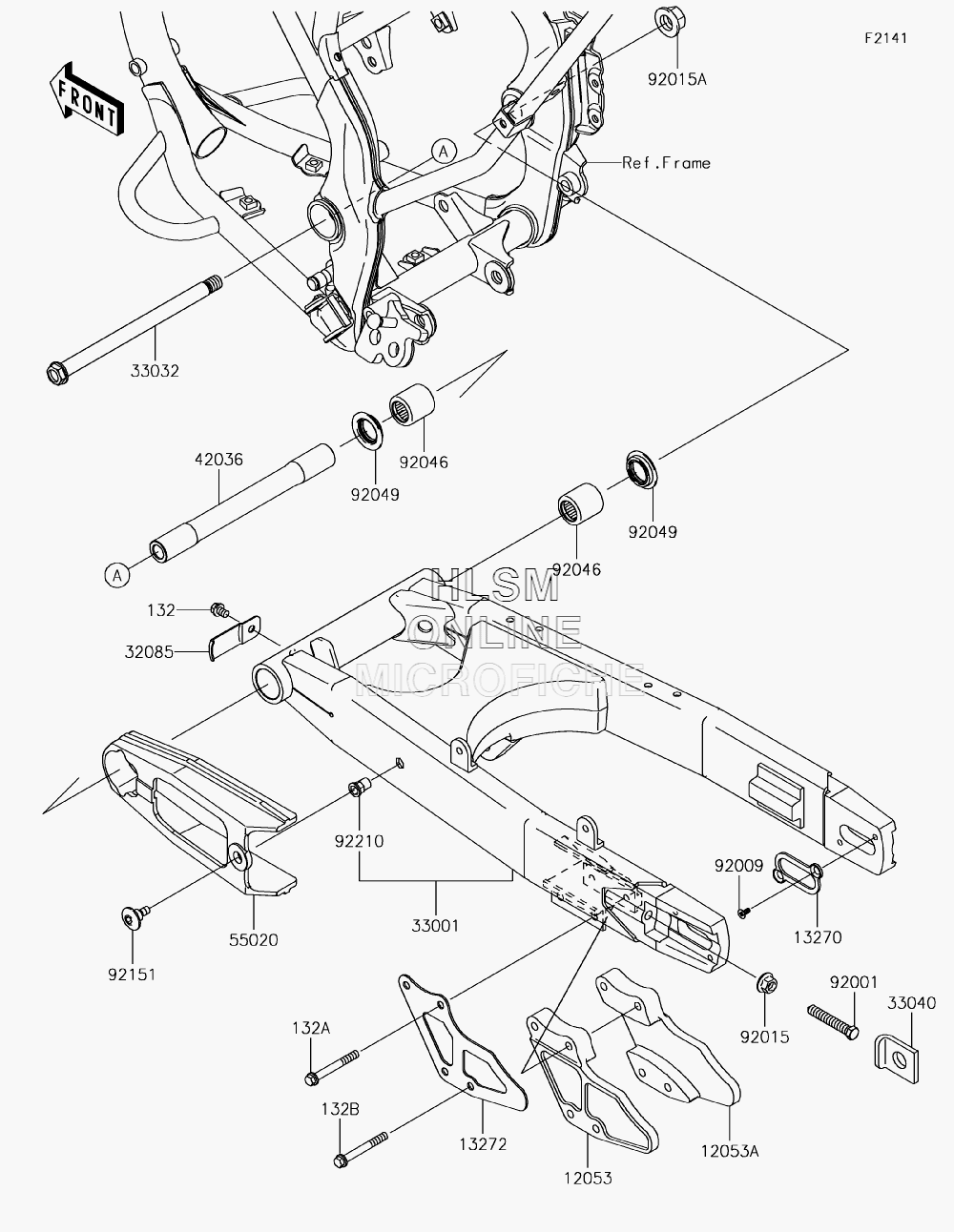

SUSPENSION - SWINGARM для Kawasaki KLX140 (KLX140AJF) - 2018 года выпуска
-
№АртикулНазвание
-
1205312053-0116 GUIDE-CHAINGUIDE-CHAIN
-
12053A12053-0118 GUIDE-CHAINGUIDE-CHAIN
-
132132BA0608 BOLT-FLANGED-SMALL, 6X8BOLT-FLANGED-SMALL, 6X8
-
1327013270-1899 PLATEPLATE
-
1327213272-0406 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
-
132A132BA0645 BOLT-FLANGED-SMALL, 6X45BOLT-FLANGED-SMALL, 6X45
-
132B132BA0650 BOLT-FLANGED-SMALL, 6X50BOLT-FLANGED-SMALL, 6X50
-
3208532085-0138 STOPPERSTOPPER
-
3300133001-0151 ARM-COMP-SWINGARM-COMP-SWING
-
3303233032-0030 SHAFT-SWING ARM, 14X227SHAFT-SWING ARM, 14X227
-
3304033040-0032 ADJUSTER-CHAINADJUSTER-CHAIN
-
4203642036-0045 SLEEVE, PIVOT, L=197.8SLEEVE, PIVOT, L=197.8
-
5502055020-0336 GUARD, CHAINGUARD, CHAIN
-
9200192001-1179 BOLT, 8X46BOLT, 8X46
-
9200992009-1828 SCREW, 5X10SCREW, 5X10
-
9201592015-1014 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-1407 NUT, 14MMNUT, 14MM
-
9204692046-1110 BEARING-NEEDLE, BM202726BEARING-NEEDLE, BM202726
-
9204692046-1110 BEARING-NEEDLE, BM202726BEARING-NEEDLE, BM202726
-
9204992049-1109 SEAL-OIL, ARMSEAL-OIL, ARM
-
9215192151-1149 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
9221092210-1397 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
