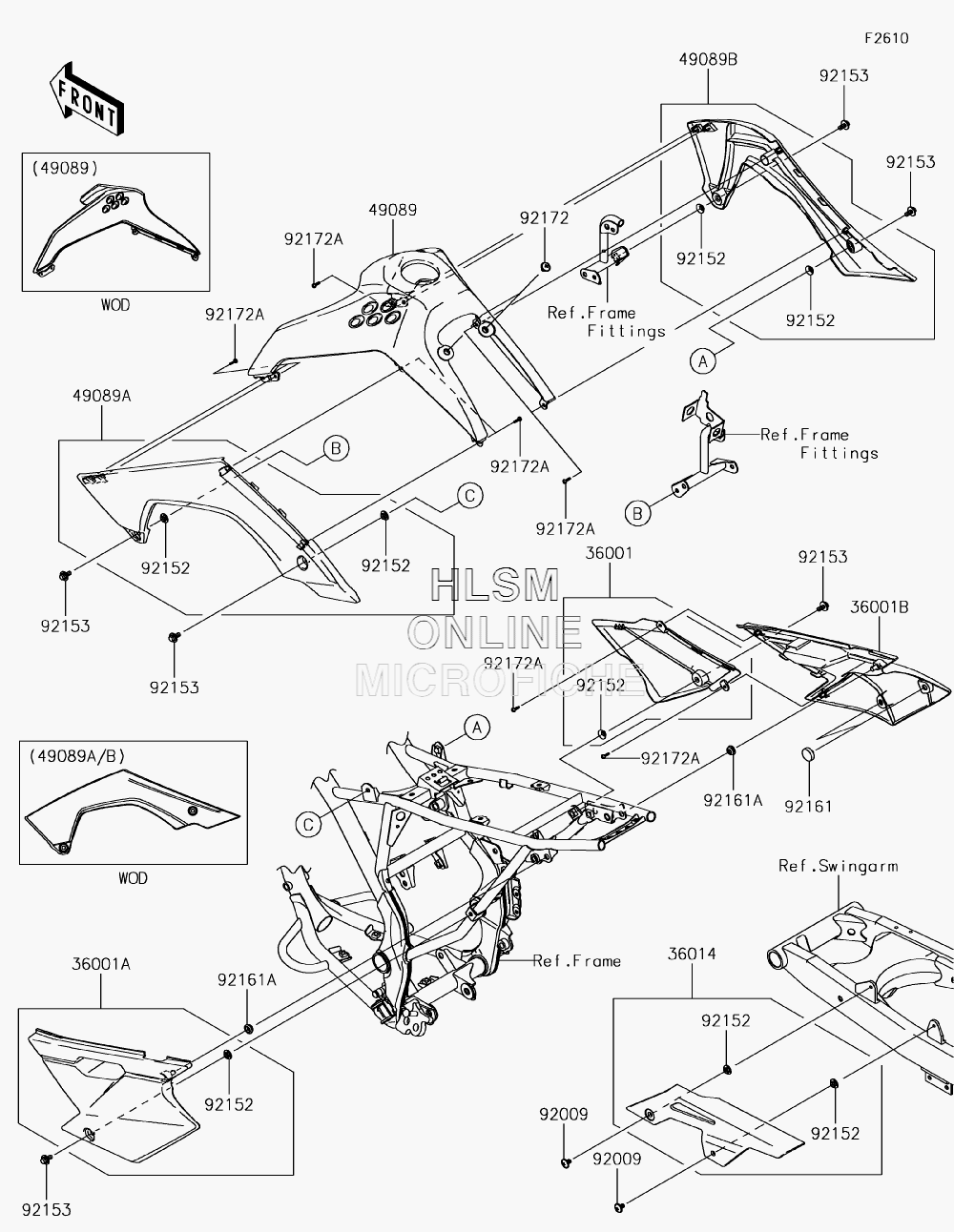

SIDE COVER(S) W/ CHAIN COVER для Kawasaki KLX140G (KLX140CJF) - 2018 года выпуска
-
№АртикулНазвание
-
3600136001-0125-266 COVER-SIDE, FRONT, RIGHT HAND, (B.WHITE)COVER-SIDE, FRONT, RIGHT HAND, (B.WHITE)
-
36001A36001-0154-266 COVER-SIDE, REAR, LEFT HAND, (B.WHITE)COVER-SIDE, REAR, LEFT HAND, (B.WHITE)
-
36001B36001-0156-266 COVER-SIDE, REAR, RIGHT HAND, (B.WHITE)COVER-SIDE, REAR, RIGHT HAND, (B.WHITE)
-
3601436014-0044 CASE-CHAINCASE-CHAIN
-
4908949089-0052-290 SHROUD-ENGINE, UPPER, (L.GREEN)SHROUD-ENGINE, UPPER, (L.GREEN)
-
49089A49089-0053-6C SHROUD-ENGINE, LEFT HAND, (EBONY)SHROUD-ENGINE, LEFT HAND, (EBONY)
-
49089B49089-0054-6C SHROUD-ENGINE, RIGHT HAND, (EBONY)SHROUD-ENGINE, RIGHT HAND, (EBONY)
-
9200992009-1729 SCREW, 6X10SCREW, 6X10
-
9215292152-0909 COLLAR, 8.8X11.2X4COLLAR, 8.8X11.2X4
-
9215392153-0936 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9216192161-0336 DAMPERDAMPER
-
92161A92161-0631 DAMPERDAMPER
-
9217292172-0098 SCREW, 6X10SCREW, 6X10
-
92172A92172-0233 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
