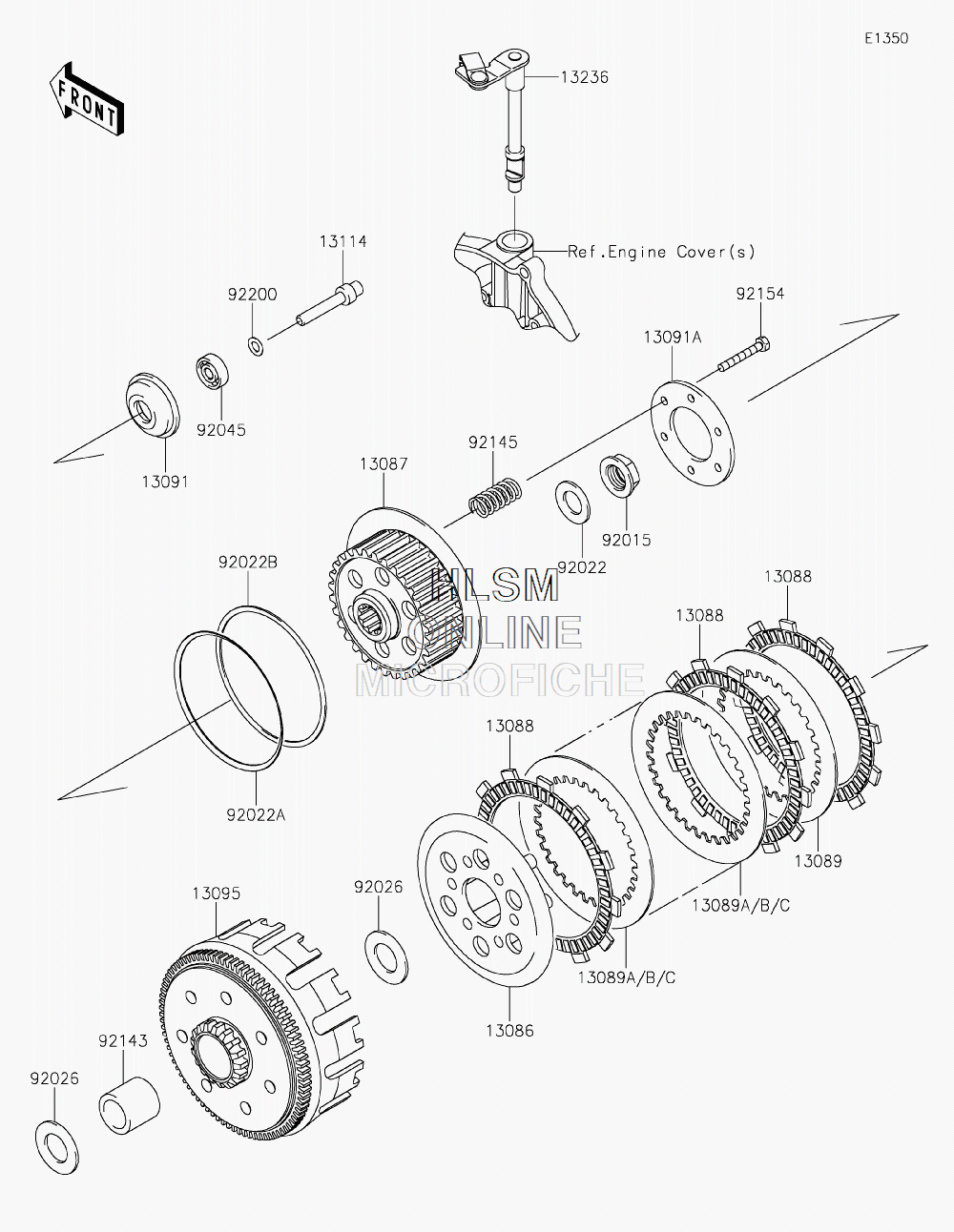

CLUTCH для Kawasaki KLX250 (KLX250SJFA) - 2018 года выпуска
-
№АртикулНазвание
-
1308613086-0004 WHEEL-CLUTCHWHEEL-CLUTCH
-
1308713087-0045 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0042 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-1085 PLATE-CLUTCHPLATE-CLUTCH
-
13089A13089-1094 PLATE-CLUTCH, T=1.6PLATE-CLUTCH, T=1.6
-
13089B13089-1116 PLATE-CLUTCH, T=2.0PLATE-CLUTCH, T=2.0
-
13089C13089-1117 PLATE-CLUTCH, T=1.2PLATE-CLUTCH, T=1.2
-
1309113091-1134 HOLDER, CLUTCH PUSHERHOLDER, CLUTCH PUSHER
-
13091A13091-1683 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
1309513095-0576 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1311413114-1068 PUSHER-CLUTCHPUSHER-CLUTCH
-
1323613236-0158 LEVER-COMPLEVER-COMP
-
9201592015-1581 NUT, 16MMNUT, 16MM
-
9202292022-1356 WASHER, 16.3X29X1.75WASHER, 16.3X29X1.75
-
92022A92022-1974 WASHER, JUDDER SPRINGWASHER, JUDDER SPRING
-
92022B92022-1993 WASHER, JUDDER SPRING SEATWASHER, JUDDER SPRING SEAT
-
9202692026-0725 SPACER, 20.3X36.6X2SPACER, 20.3X36.6X2
-
9204592045-1236 BEARING-BALL, 627BEARING-BALL, 627
-
9214392143-1959 COLLARCOLLAR
-
9214592145-0637 SPRINGSPRING
-
9215492154-0065 BOLT, UPSET, 5X35BOLT, UPSET, 5X35
-
9220092200-1197 WASHER, 7X12.5X0.8WASHER, 7X12.5X0.8
