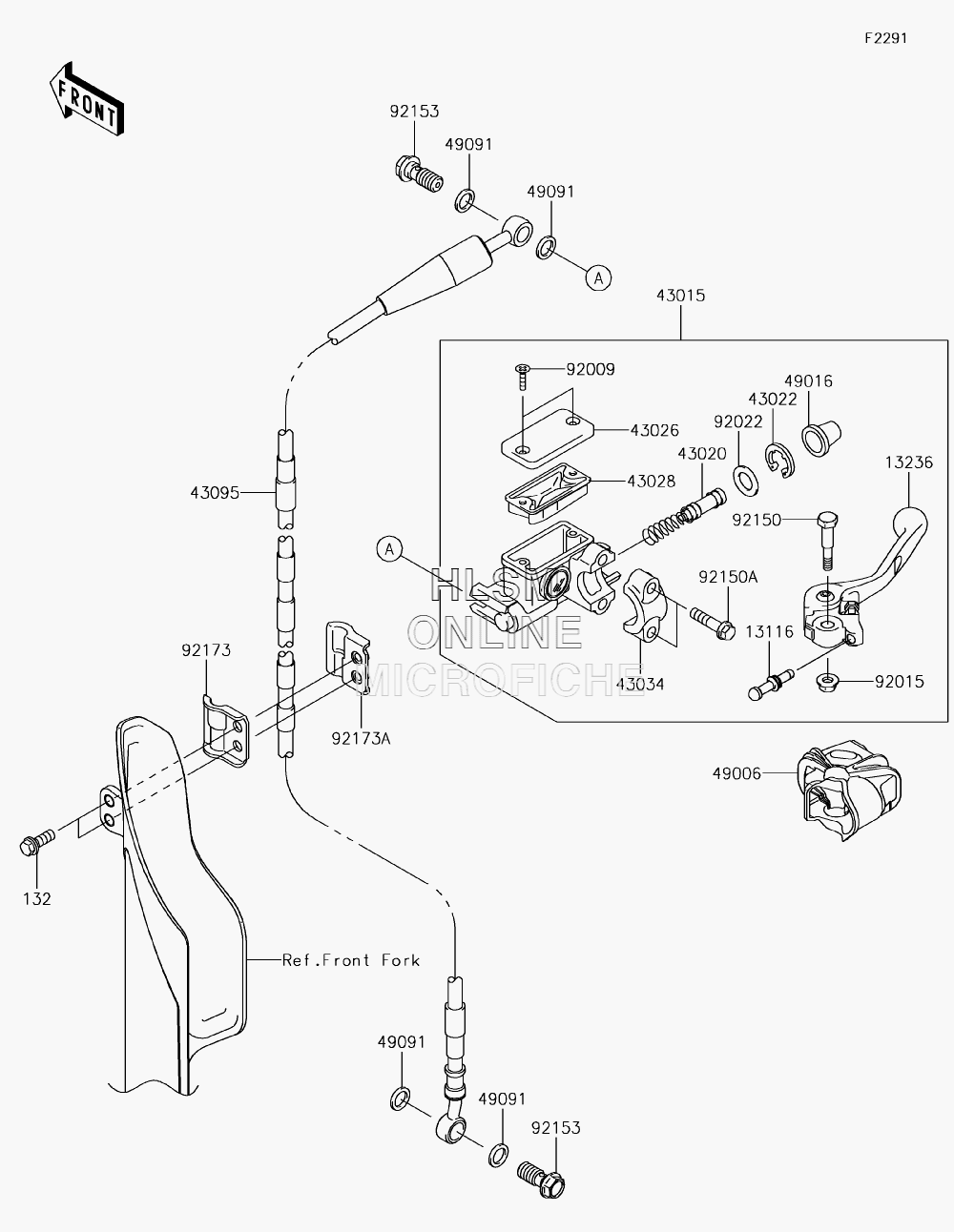

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KX250F (KX252AJF) - 2018 года выпуска
-
№АртикулНазвание
-
1311613116-0043 ROD-PUSHROD-PUSH
-
132132BA0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
1323613236-0763 LEVER-COMP, FRONT BRAKELEVER-COMP, FRONT BRAKE
-
4301543015-0619 CYLINDER-ASSY-MASTERCYLINDER-ASSY-MASTER
-
4302043020-1115 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
4302643026-0020 CAP-BRAKE, MASTER CYLINDERCAP-BRAKE, MASTER CYLINDER
-
4302843028-1067 DIAPHRAGMDIAPHRAGM
-
4303443034-1110 HOLDER-BRAKEHOLDER-BRAKE
-
4309543095-0755 HOSE-BRAKE, L=1316HOSE-BRAKE, L=1316
-
4900649006-0078 BOOT, FRONT BRAKE LEVERBOOT, FRONT BRAKE LEVER
-
4901649016-1044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200992009-1795 SCREWSCREW
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1814 WASHERWASHER
-
9215092150-1451 BOLT, LEVER SETBOLT, LEVER SET
-
92150A92150-1452 BOLTBOLT
-
9215392153-1419 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217392173-1177 CLAMP, BRAKE HOSE, LEFT HANDCLAMP, BRAKE HOSE, LEFT HAND
-
92173A92173-1178 CLAMP, BRAKE HOSE, RIGHT HANDCLAMP, BRAKE HOSE, RIGHT HAND
