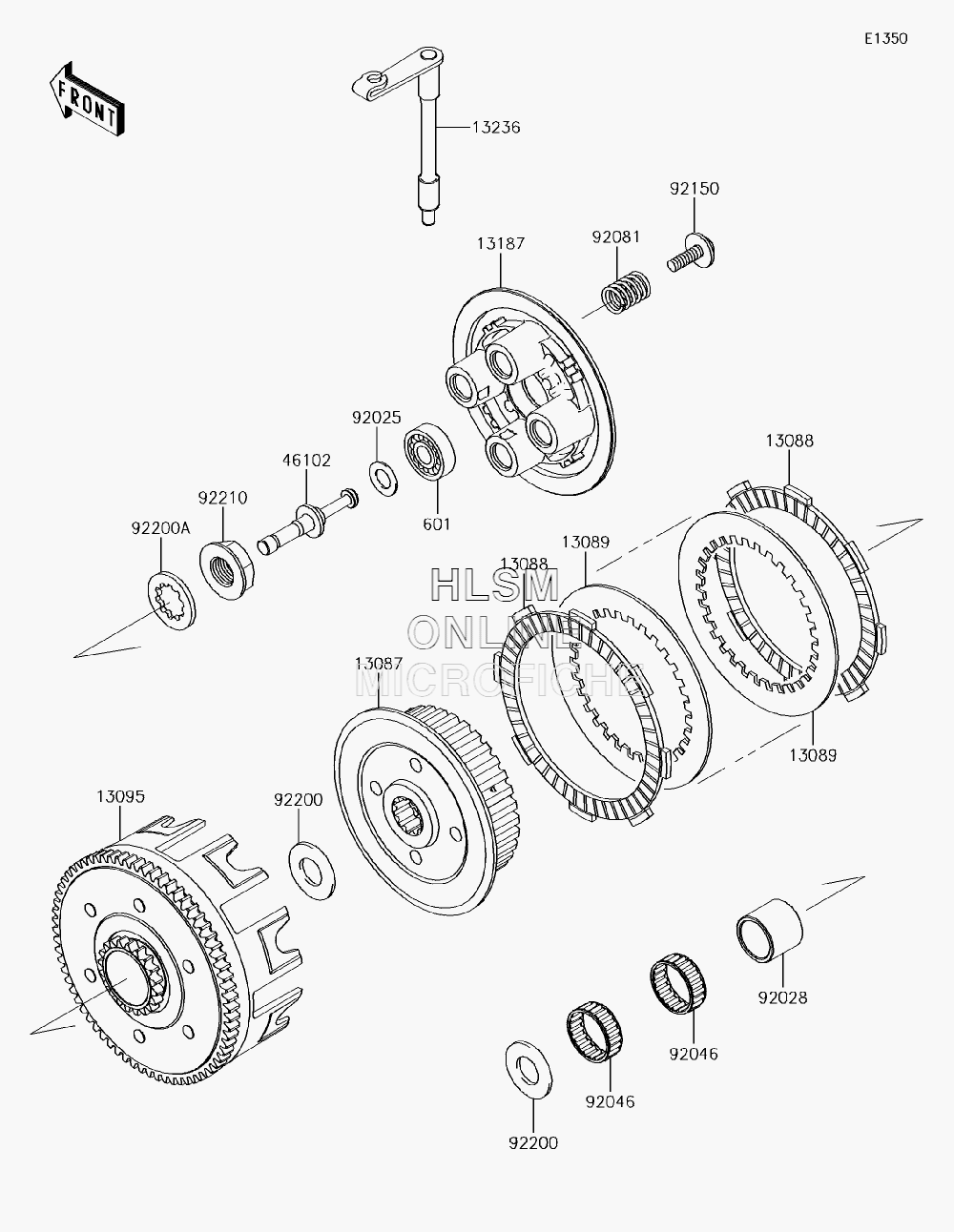

CLUTCH для Kawasaki KX85 (KX85CJF) - 2018 года выпуска
-
№АртикулНазвание
-
1308713087-1170 HUB-CLUTCHHUB-CLUTCH
-
1308813088-1016 PLATE-FRICTION, ID=91PLATE-FRICTION, ID=91
-
1308913089-1120 PLATE-CLUTCHPLATE-CLUTCH
-
1309513095-1406 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1318713187-1013 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1323613236-1298 LEVER-COMP, RELEASELEVER-COMP, RELEASE
-
4610246102-1409 ROD, CLUTCH RELEASEROD, CLUTCH RELEASE
-
601601A6001 BEARING-BALLBEARING-BALL
-
9202592025-1780 SHIMSHIM
-
9202892028-1811 BUSHING, 20X25X21.1BUSHING, 20X25X21.1
-
9204692046-1254 BEARING-NEEDLE, KT252910EGBEARING-NEEDLE, KT252910EG
-
9208192081-1492 SPRING, CLUTCHSPRING, CLUTCH
-
9215092150-1715 BOLT, 6X20, WASHERBOLT, 6X20, WASHER
-
9220092200-1351 WASHER, 20.3X33X2.0WASHER, 20.3X33X2.0
-
92200A92200-1352 WASHER, 20X30X2.6WASHER, 20X30X2.6
-
9221092210-1113 NUT, 16MMNUT, 16MM
