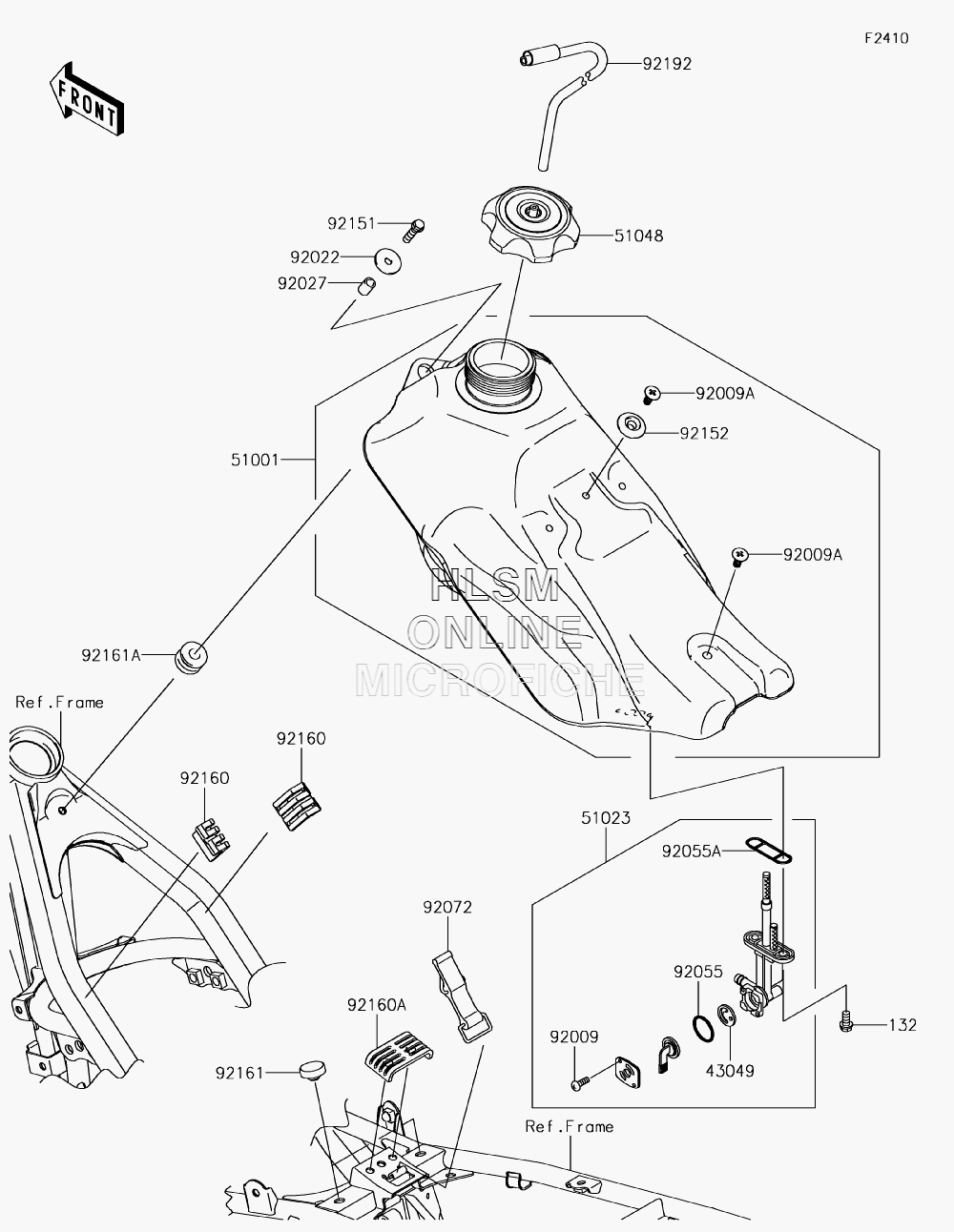

FUEL TANK для Kawasaki KLX140 (KLX140AKF) - 2019 года выпуска
-
№АртикулНазвание
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
4304943049-1102 PACKING, VALVEPACKING, VALVE
-
5100151001-0847 TANK-COMP-FUELTANK-COMP-FUEL
-
5102351023-0030 TAP-ASSY, FUELTAP-ASSY, FUEL
-
5104851048-0009 CAP-ASSY-TANK, FUELCAP-ASSY-TANK, FUEL
-
9200992009-1123 SCREW, 3X5SCREW, 3X5
-
92009A92009-1971 SCREW, 6MMSCREW, 6MM
-
9202292022-1690 WASHER, 6.5X24X2WASHER, 6.5X24X2
-
9202792027-1966 COLLAR, 6.8X10X14COLLAR, 6.8X10X14
-
9205592055-1111 RING-O, FUEL TAP LEVERRING-O, FUEL TAP LEVER
-
92055A92055-1112 RING-O, FUEL TAP PACKINGRING-O, FUEL TAP PACKING
-
9207292072-0109 BAND, FUEL TANKBAND, FUEL TANK
-
9215192151-1930 BOLT, FLANGED-SMALL, 6X25BOLT, FLANGED-SMALL, 6X25
-
9215292152-0569 COLLARCOLLAR
-
9216092160-1328 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92160A92160-1397 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
-
9216192161-0336 DAMPERDAMPER
-
92161A92161-1523 DAMPERDAMPER
-
9219292192-0161 TUBETUBE
