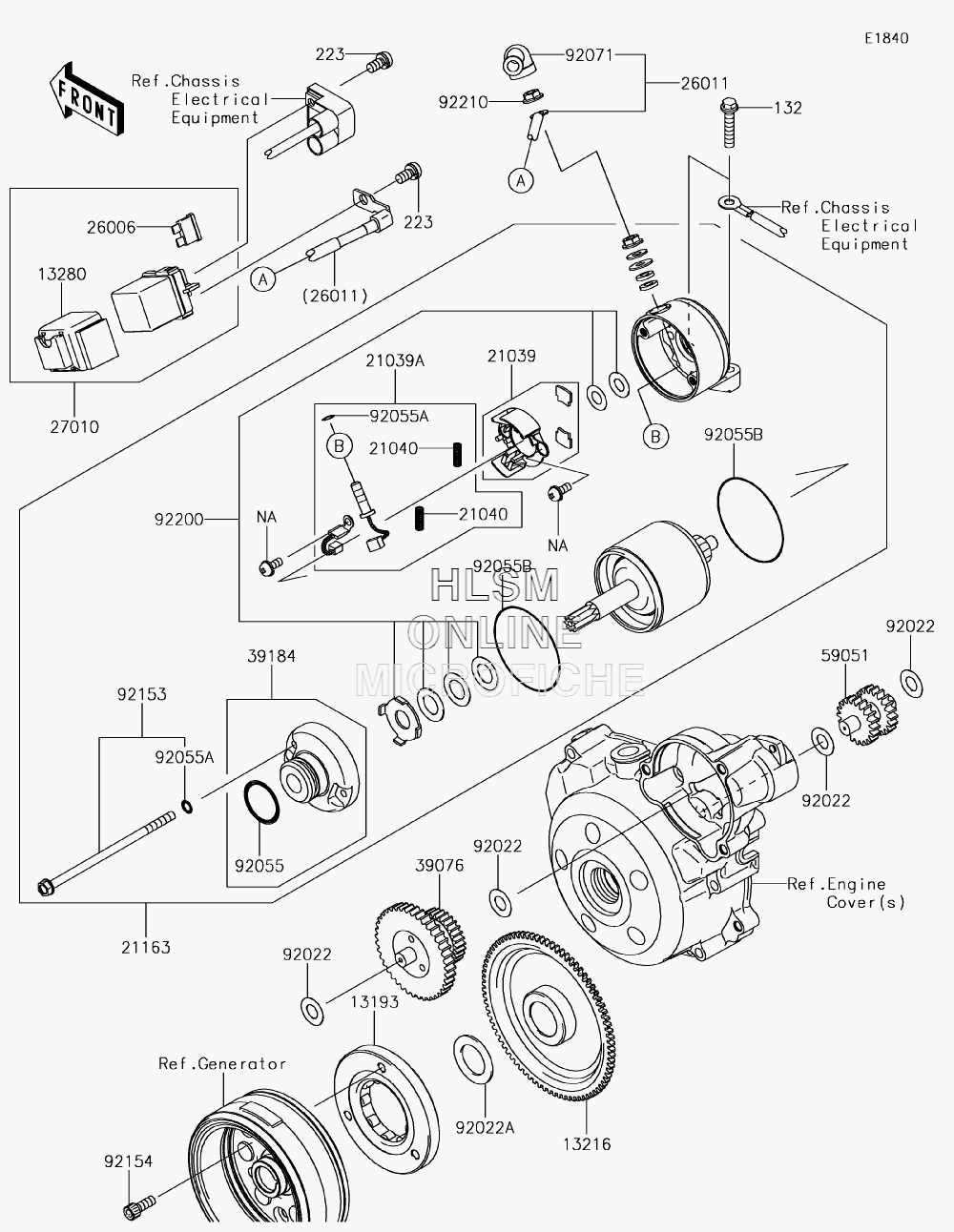

STARTER MOTOR для Kawasaki KLX140L (KLX140BKF) - 2019 года выпуска
-
№АртикулНазвание
-
1319313193-0005 CLUTCH-ASSY-ONEWAYCLUTCH-ASSY-ONEWAY
-
132132BD0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
1321613216-0040 GEAR-COMP, FREE WHEELGEAR-COMP, FREE WHEEL
-
1328013280-0818 HOLDERHOLDER
-
2103921039-0007 BRUSHBRUSH
-
21039A21039-0008 BRUSHBRUSH
-
2104021040-0004 SPRING-BRUSHSPRING-BRUSH
-
2116321163-0762 STARTER-ELECTRICSTARTER-ELECTRIC
-
223223AA0510 SCREW-PAN-WS-CROS, 5X10SCREW-PAN-WS-CROS, 5X10
-
2600626006-1007 FUSE, BLADE, 10A, (RED)FUSE, BLADE, 10A, (RED)
-
2601126011-0782 WIRE-LEAD, STARTERWIRE-LEAD, STARTER
-
2701027010-0798 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3907639076-0020 LIMITER, STARTER IDLE GEARLIMITER, STARTER IDLE GEAR
-
3918439184-0015 BRACKET-ASSYBRACKET-ASSY
-
5905159051-1304 GEAR-SPUR, IDLEGEAR-SPUR, IDLE
-
9202292022-1649 WASHER, 10.2X20X0.5WASHER, 10.2X20X0.5
-
92022A92022-212 WASHER, 22.3X35X1.6WASHER, 22.3X35X1.6
-
9205592055-1276 RING-ORING-O
-
92055A92055-1370 RING-O, 4.5X2.0RING-O, 4.5X2.0
-
92055B92055-1550 RING-ORING-O
-
9207192071-0705 GROMMETGROMMET
-
9215392153-1914 BOLTBOLT
-
9215492154-0235 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9220092200-0407 WASHER, SETWASHER, SET
-
9221092210-1514 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
