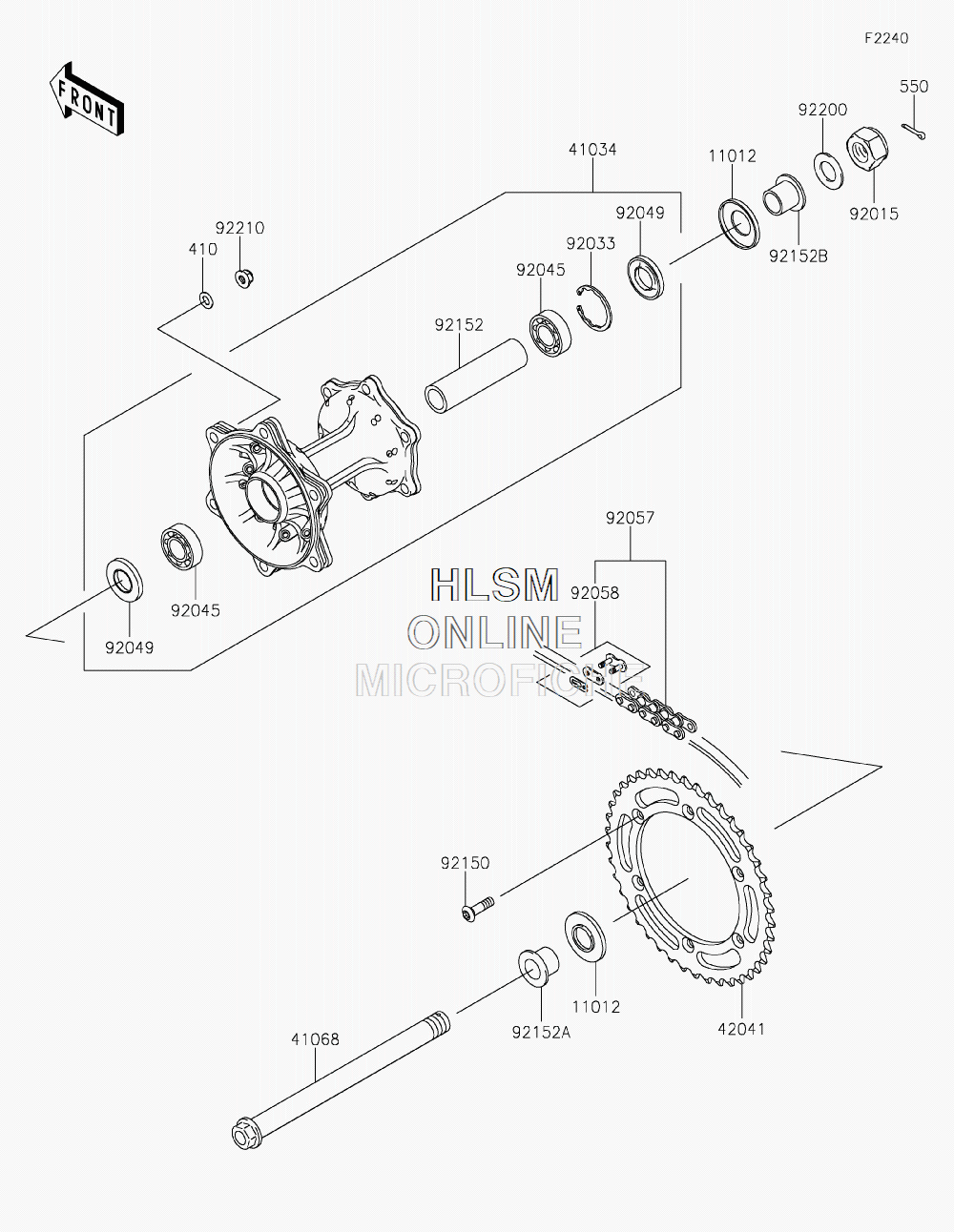

REAR HUB W/CHAIN для Kawasaki KLX250 (KLX250SKF) - 2019 года выпуска
-
№АртикулНазвание
-
1101211012-1581 CAP, AXLECAP, AXLE
-
410410AA0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
4103441034-0044 DRUM-ASSY, REAR BRAKEDRUM-ASSY, REAR BRAKE
-
4106841068-0602 AXLE, REAR, 20X250AXLE, REAR, 20X250
-
4204142041-1421 SPROCKET-HUB, 42TSPROCKET-HUB, 42T
-
550550AA3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
-
9201592015-1770 NUT, LOCK, 20MMNUT, LOCK, 20MM
-
9203392033-1041 RING-SNAP, 42MMRING-SNAP, 42MM
-
9204592045-1239 BEARING-BALL, 6004X8JRLLX2/3ABEARING-BALL, 6004X8JRLLX2/3A
-
9204992049-1203 SEAL-OIL, BJNC2 25425SEAL-OIL, BJNC2 25425
-
9205792057-1367 CHAIN, DRIVE, EK520LV-OX106LCHAIN, DRIVE, EK520LV-OX106L
-
9205892058-1070 JOINT-CHAIN, DRIVE, EKJOINT-CHAIN, DRIVE, EK
-
9215092150-1978 BOLT, SOCKET, 8X28BOLT, SOCKET, 8X28
-
9215292152-0529 COLLAR, REAR BRAKE DRUM, L=105COLLAR, REAR BRAKE DRUM, L=105
-
92152A92152-0734 COLLAR, REAR AXLE, L=22COLLAR, REAR AXLE, L=22
-
92152B92152-0735 COLLAR, REAR AXLE, RIGHT HAND, L=20COLLAR, REAR AXLE, RIGHT HAND, L=20
-
9220092200-1146 WASHER, 20.2X36X2WASHER, 20.2X36X2
-
9221092210-0493 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
