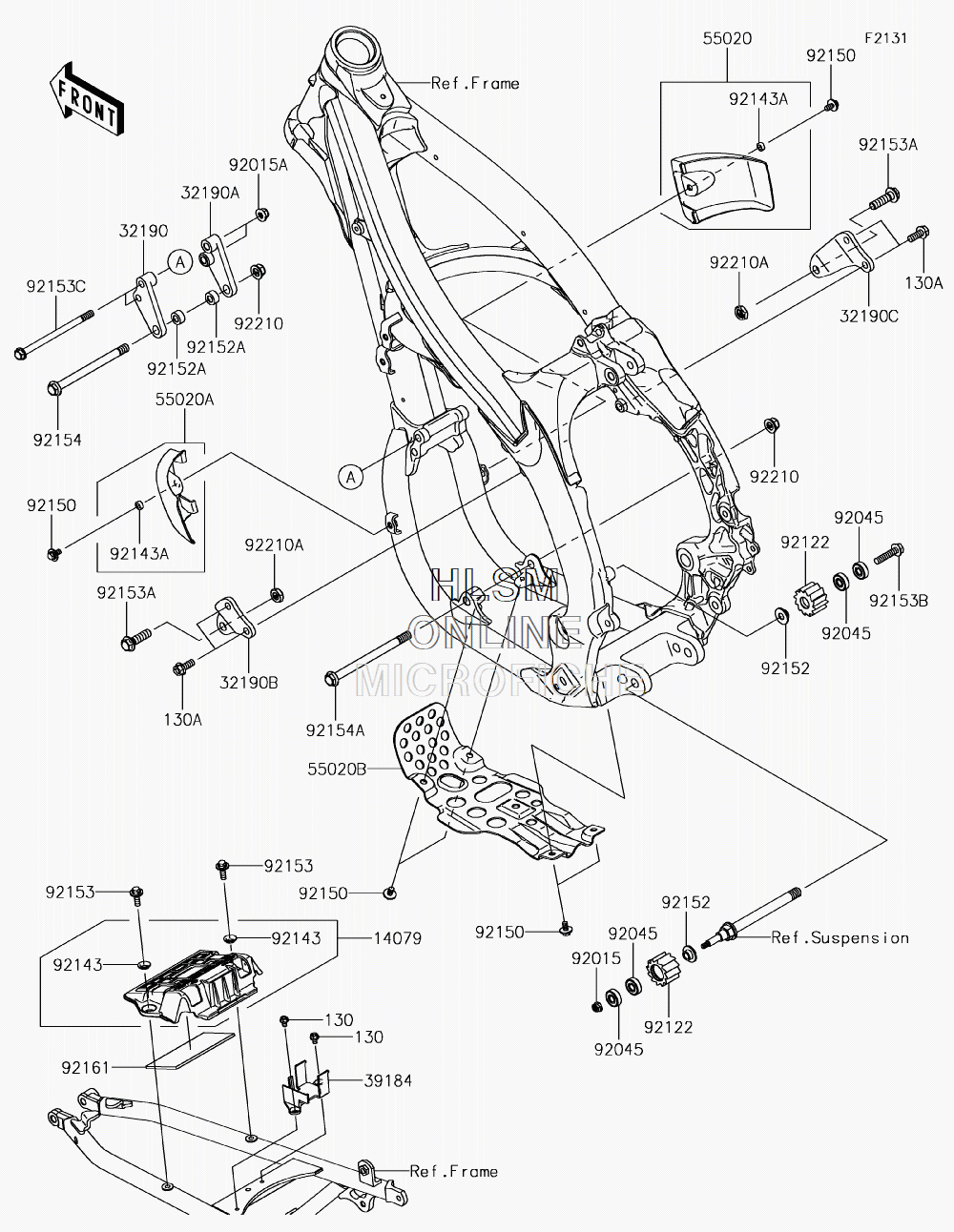

FRAME FITTING(S) для Kawasaki KLX450R (AUSTRALIAN) (KLX450AKF) - 2019 года выпуска
-
№АртикулНазвание
-
130130BA0510 BOLT-FLANGED, 5X10BOLT-FLANGED, 5X10
-
130A130CA0818 BOLT-FLANGED, 8X18BOLT-FLANGED, 8X18
-
1407914079-0026 HOLDER-ASSY, BATTERYHOLDER-ASSY, BATTERY
-
3219032190-0330 BRACKET-ENGINE, FRONTBRACKET-ENGINE, FRONT
-
32190A32190-0331 BRACKET-ENGINE, FRONTBRACKET-ENGINE, FRONT
-
32190B32190-0351 BRACKET-ENGINE, UPPER, LEFT HANDBRACKET-ENGINE, UPPER, LEFT HAND
-
32190C32190-0352 BRACKET-ENGINE, UPPER, RIGHT HANDBRACKET-ENGINE, UPPER, RIGHT HAND
-
3918439184-0008 BRACKET-ASSY, SWITCH & RELAYBRACKET-ASSY, SWITCH & RELAY
-
5502055020-0179-6C GUARD, ENGINE, RIGHT HAND, (EBONY)GUARD, ENGINE, RIGHT HAND, (EBONY)
-
55020A55020-0313-6C GUARD, ENGINE, LEFT HAND, (EBONY)GUARD, ENGINE, LEFT HAND, (EBONY)
-
55020B55020-0369 GUARD, SKIDGUARD, SKID
-
9201592015-1339 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015A92015-1432 NUT, 8MMNUT, 8MM
-
9204592045-0060 BEARING-BALL, 608LLU/2ABEARING-BALL, 608LLU/2A
-
9212292122-0016 ROLLER, CHAIN GUIDEROLLER, CHAIN GUIDE
-
9214392143-1196 COLLARCOLLAR
-
92143A92143-1307 COLLARCOLLAR
-
9215092150-1435 BOLT, 6X12BOLT, 6X12
-
9215292152-0459 COLLARCOLLAR
-
92152A92152-0595 COLLAR, 10.2X20X10COLLAR, 10.2X20X10
-
9215392153-0502 BOLT, 6X20BOLT, 6X20
-
92153A92153-0802 BOLT, FLANGED, 10X35BOLT, FLANGED, 10X35
-
92153B92153-1652 BOLT, FLANGED, 8X35BOLT, FLANGED, 8X35
-
92153C92153-1870 BOLT, FLANGED, 8X126BOLT, FLANGED, 8X126
-
9215492154-0517 BOLT, FLANGED, 10X130BOLT, FLANGED, 10X130
-
92154A92154-0522 BOLT, FLANGED, 10X137BOLT, FLANGED, 10X137
-
9216192161-0456 DAMPERDAMPER
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-1184 NUT, LOCK, 10MMNUT, LOCK, 10MM
