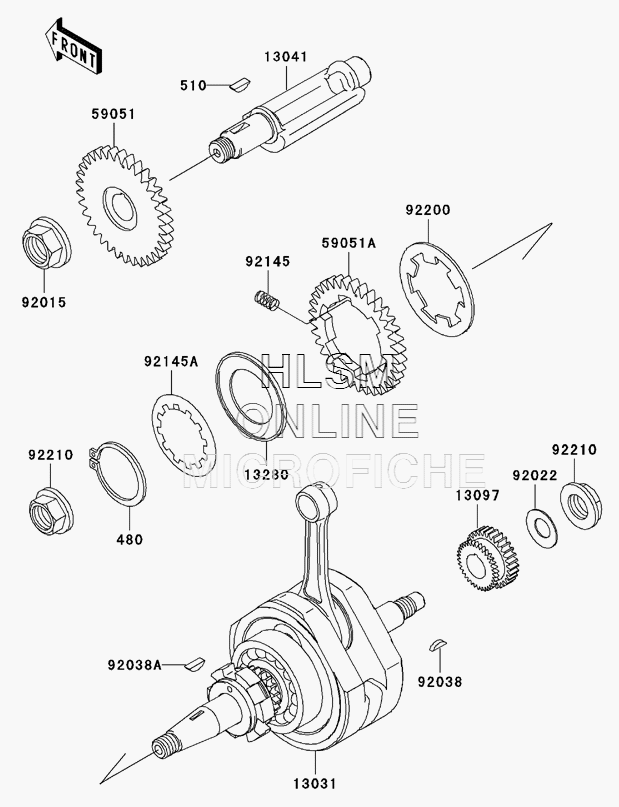

CRANKSHAFT для Kawasaki Eliminator 125 - 2001 года выпуска
-
№АртикулНазвание
-
480480J4000 CIRCLIPCIRCLIP
-
510510A5100 KEY, WOODRUFFKEY, WOODRUFF
-
1303113031-1459 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1304113041-1117 BALANCERBALANCER
-
1309713097-1378 GEAR, PRIMARY SPURGEAR, PRIMARY SPUR
-
1328013280-1121 HOLDER, BALANCERHOLDER, BALANCER
-
5905159051-1324 GEAR, SPUR, BALANCERGEAR, SPUR, BALANCER
-
59051A59051-1325 GEAR, SPUR, BALANCERGEAR, SPUR, BALANCER
-
9201592015-1465 NUT, 16MMNUT, 16MM
-
9202292022-1232 WASHER, SPRING, 14M/MWASHER, SPRING, 14M/M
-
9203892038-001 KEY, WOODRUFFKEY, WOODRUFF
-
92038A92038-3703 KEY, WOODRUFFKEY, WOODRUFF
-
9214592145-1195 SPRINGSPRING
-
92145A92145-1196 SPRINGSPRING
-
9220092200-1314 WASHERWASHER
-
9221092210-1163 NUT, 14MMNUT, 14MM
