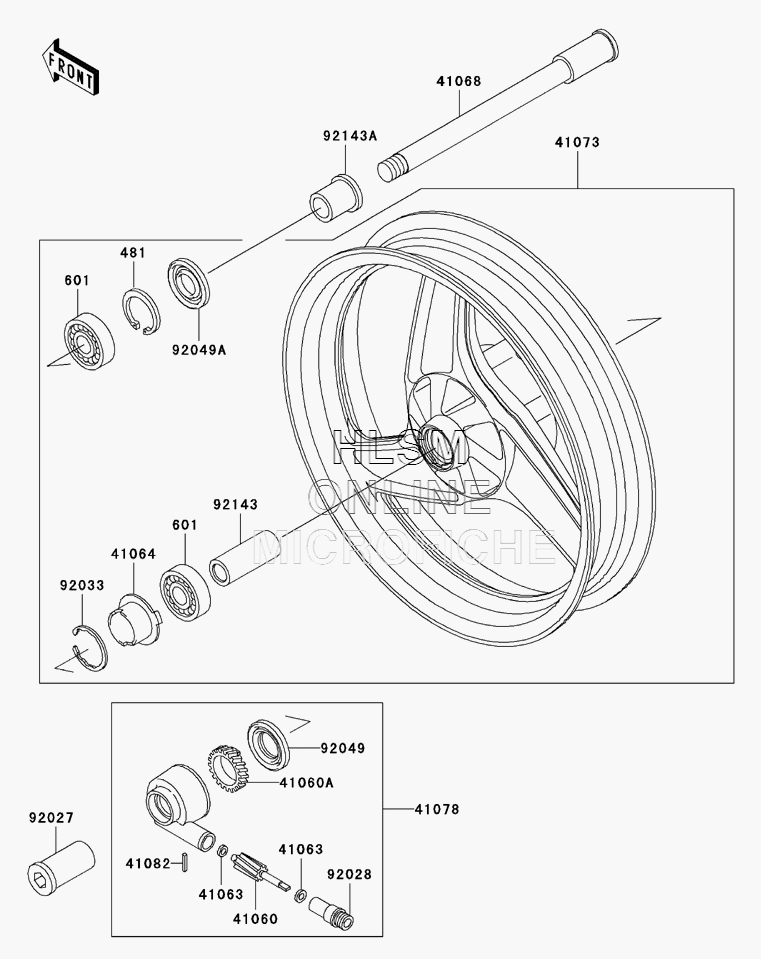

WHEEL - FRONT для Kawasaki NINJA 500R - 2001 года выпуска
-
№АртикулНазвание
-
481481J3500 CIRCLIP, TYPE, C, 35MMCIRCLIP, TYPE, C, 35MM
-
601601B6202UU BEARING, BALLBEARING, BALL
-
4106041060-1123 GEAR, METER SCREW (9 TEETH)GEAR, METER SCREW (9 TEETH)
-
41060A41060-1124 GEAR, METER SCREW (23 TEETH)GEAR, METER SCREW (23 TEETH)
-
4106341063-001 WASHER, 5.1X9X0.4WASHER, 5.1X9X0.4
-
4106441064-1006 RECEIVER, SPEEDOMETERRECEIVER, SPEEDOMETER
-
4106841068-1175 AXLE, FRONTAXLE, FRONT
-
4107341073-1543-GE WHEEL, ASSY, FRONT (G.GRAY)WHEEL, ASSY, FRONT (G.GRAY)
-
4107841078-1068 CASE, ASSY, METER GEARCASE, ASSY, METER GEAR
-
4108241082-001 PIN, SPRINGPIN, SPRING
-
9202792027-1726 COLLAR, FRONT AXLE, L=36.5COLLAR, FRONT AXLE, L=36.5
-
9202892028-1066 BUSHING, SPEEDOMETERBUSHING, SPEEDOMETER
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204992049-1057 SEAL, OIL, BJN30427, C3SEAL, OIL, BJN30427, C3
-
92049A92049-1176 SEAL, OIL, MH20354.5SEAL, OIL, MH20354.5
-
9214392143-1185 COLLAR, 15.1X20X70COLLAR, 15.1X20X70
-
92143A92143-1187 COLLAR, FRONT AXLE, L=24COLLAR, FRONT AXLE, L=24
