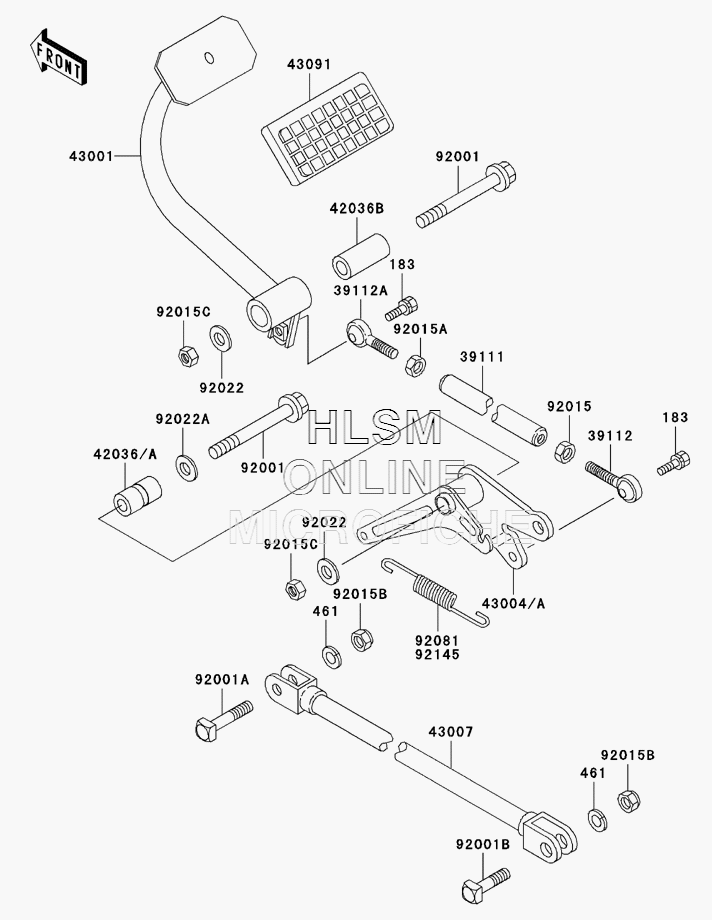

BRAKE PEDAL W/ TORQUE LINK для Kawasaki Police 1000 - 2001 года выпуска
-
№АртикулНазвание
-
183183G0825 BOLT, UPSET, WS, SMALLBOLT, UPSET, WS, SMALL
-
461461F1000 WASHER, SPRING, 10MMWASHER, SPRING, 10MM
-
3911139111-4002 ROD, TIE, L=360ROD, TIE, L=360
-
3911239112-1001 RODEND, TIE (RIGHT) THREADRODEND, TIE (RIGHT) THREAD
-
39112A39112-1002 RODEND, TIE (LEFT) THREADRODEND, TIE (LEFT) THREAD
-
42036A42036-4005 SLEEVESLEEVE
-
42036B42036-4006 SLEEVE, CHANGE LEVERSLEEVE, CHANGE LEVER
-
4300143001-4015 LEVER, BRAKE, PEDALLEVER, BRAKE, PEDAL
-
43004A43004-4002 SHAFT, BRAKE, PEDALSHAFT, BRAKE, PEDAL
-
4300743007-1015 ROD, TORQUE, REARROD, TORQUE, REAR
-
4309143091-002 RUBBER, BRAKE PEDALRUBBER, BRAKE PEDAL
-
9200192001-1619 BOLT, FLANGED, 10X85BOLT, FLANGED, 10X85
-
92001A92001-1645 BOLT, 10X45 (BLACK)BOLT, 10X45 (BLACK)
-
92001B92001-1646 BOLT, 10X37 (BLACK)BOLT, 10X37 (BLACK)
-
9201592015-1005 NUT (RIGHT) THREADNUT (RIGHT) THREAD
-
92015A92015-1006 NUT (LEFT) THREADNUT (LEFT) THREAD
-
92015B92015-1189 NUT, LOCK, 10MM (BLACK)NUT, LOCK, 10MM (BLACK)
-
92015C92015-1376 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9202292022-044 WASHER, 10.5X26X2.3WASHER, 10.5X26X2.3
-
92022A92022-1022 WASHER, 10.5X22X4.5WASHER, 10.5X22X4.5
-
9208192081-1296 SPRING, BRAKE PEDALSPRING, BRAKE PEDAL
