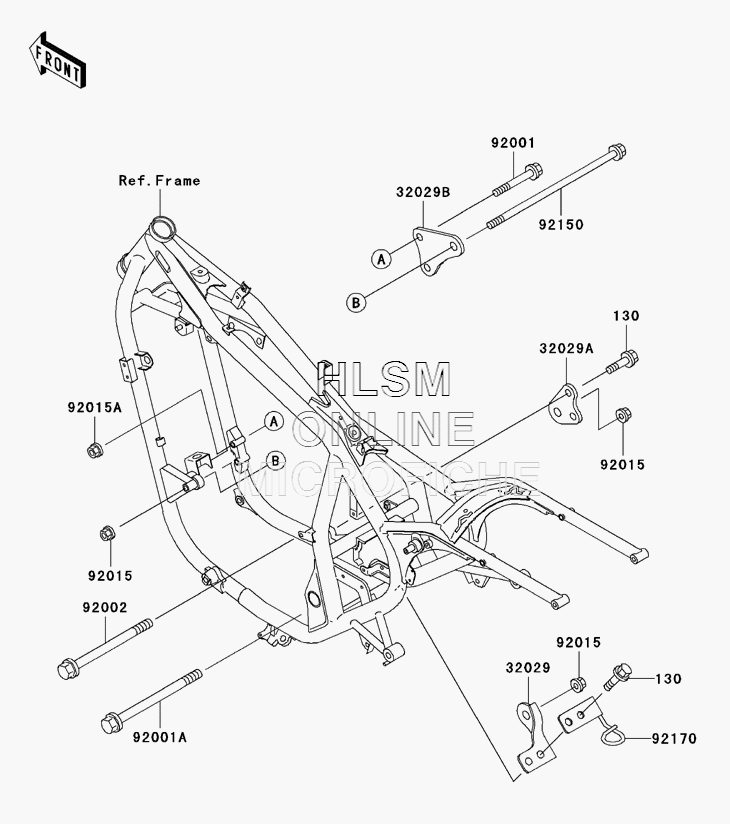

ENGINE MOUNT для Kawasaki Vulcan 500 LTD - 2001 года выпуска
-
№АртикулНазвание
-
130130J0816 BOLT, FLANGED, 8X16 (BLACK)BOLT, FLANGED, 8X16 (BLACK)
-
3202932029-1379 BRACKET, ENGINE, REAR, LOWER (RIGHT)BRACKET, ENGINE, REAR, LOWER (RIGHT)
-
32029A32029-1974 BRACKET, ENGINE, REAR (RIGHT/UPPER)BRACKET, ENGINE, REAR (RIGHT/UPPER)
-
32029B32029-1975 BRACKET, ENGINE, FRONT (RIGHT)BRACKET, ENGINE, FRONT (RIGHT)
-
9200192001-1613 BOLT, FLANGED, 8X45BOLT, FLANGED, 8X45
-
92001A92001-1621 BOLT, FLANGED, 10X180BOLT, FLANGED, 10X180
-
9200292002-1470 BOLT, FLANGED, 10X170BOLT, FLANGED, 10X170
-
9201592015-1180 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1251 NUT, FLANGED, 8MM (BLACK)NUT, FLANGED, 8MM (BLACK)
-
9215092150-1742 BOLT, FLANGED, 10X240BOLT, FLANGED, 10X240
-
9217092170-1711 CLAMP, HOSECLAMP, HOSE
