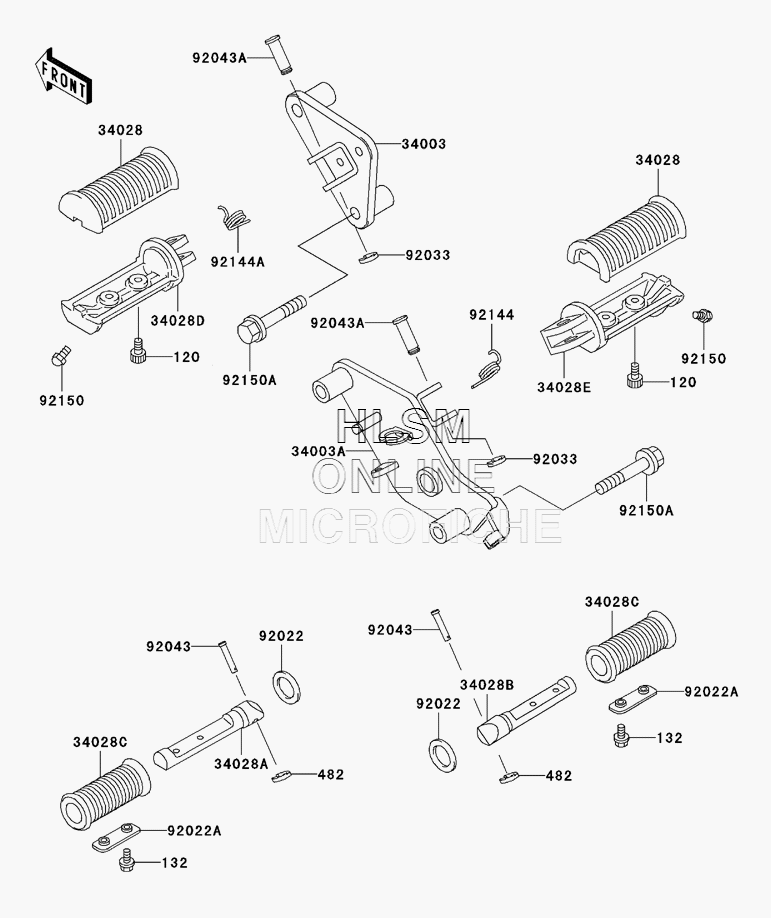

FOOTRESTS для Kawasaki Vulcan 800 - 2001 года выпуска
-
№АртикулНазвание
-
120120S0512 BOLT, SOCKETBOLT, SOCKET
-
132132J0510 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
482482L7000 CIRCLIP, TYPE, ECIRCLIP, TYPE, E
-
3400334003-1413 HOLDER, STEP, FRONT (LEFT)HOLDER, STEP, FRONT (LEFT)
-
34003A34003-1414 HOLDER, STEP, FRONT (RIGHT)HOLDER, STEP, FRONT (RIGHT)
-
3402834028-1217 STEP, FRONT, RUBBERSTEP, FRONT, RUBBER
-
34028A34028-1219 STEP, REAR (LEFT)STEP, REAR (LEFT)
-
34028B34028-1220 STEP, REAR (RIGHT)STEP, REAR (RIGHT)
-
34028C34028-1221 STEP, REAR, RUBBERSTEP, REAR, RUBBER
-
34028D34028-1407 STEP, FRONT (LEFT)STEP, FRONT (LEFT)
-
34028E34028-1408 STEP, FRONT (RIGHT)STEP, FRONT (RIGHT)
-
9202292022-1568 WASHER, 20X30X2.3WASHER, 20X30X2.3
-
92022A92022-1874 WASHER, STEPWASHER, STEP
-
9203392033-1166 RING, SNAP, 10MMRING, SNAP, 10MM
-
9204392043-1339 PIN, 8X36.5PIN, 8X36.5
-
92043A92043-1358 PIN, 12X37PIN, 12X37
-
9214492144-1126 SPRING, STEP RETURNSPRING, STEP RETURN
-
92144A92144-1210 SPRING, STEP RETURNSPRING, STEP RETURN
-
9215092150-1153 BOLT, BANK SENSERBOLT, BANK SENSER
-
92150A92150-1897 BOLT, FLANGED, 10X55BOLT, FLANGED, 10X55
