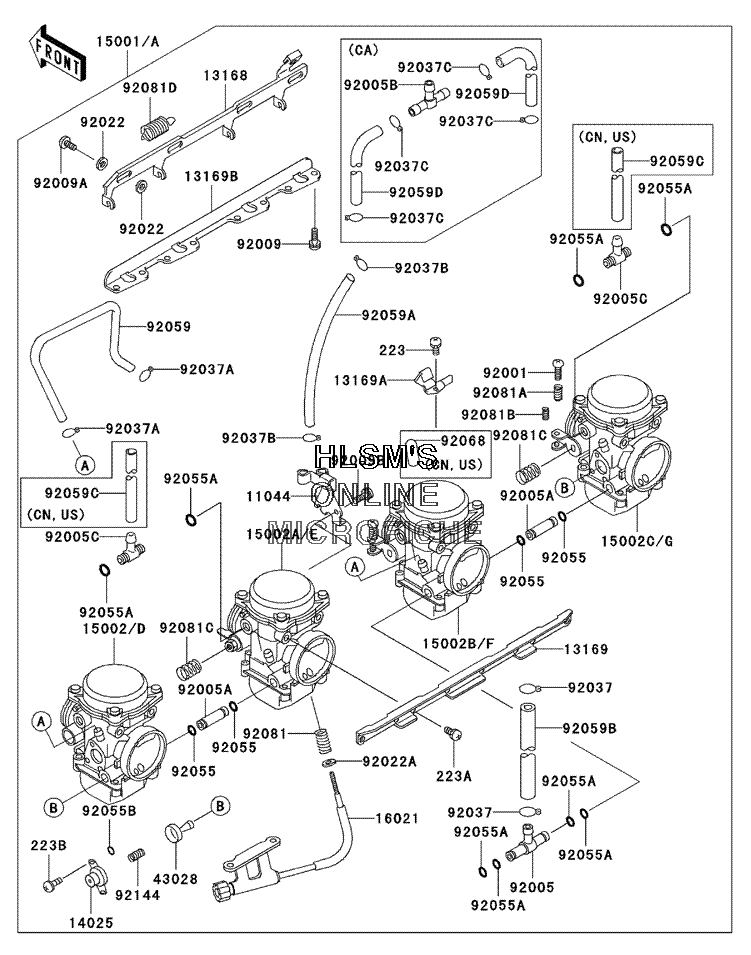

CARBURETOR для Kawasaki Concours - 2002 года выпуска
-
№АртикулНазвание
-
1104411044-1546 BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
1316813168-1245 LEVER, STARTERLEVER, STARTER
-
1316913169-1869 PLATE, CARBURETOR STAY, UPPERPLATE, CARBURETOR STAY, UPPER
-
13169A13169-1871 PLATE, STARTER CABLEPLATE, STARTER CABLE
-
13169B13169-1873 PLATE, CARBURETOR STAY, LOWER, 6MMPLATE, CARBURETOR STAY, LOWER, 6MM
-
1402514025-1903 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1500115001-1251 CARBURETOR, ASSY. (EXCEPT CALIF.)CARBURETOR, ASSY. (EXCEPT CALIF.)
-
15001A15001-1252 CARBURETOR, ASSY. (CALIF. ONLY)CARBURETOR, ASSY. (CALIF. ONLY)
-
1500215002-1362 CARBURETOR (LEFT/OUTSIDE) (EXCEPT CALIF.)CARBURETOR (LEFT/OUTSIDE) (EXCEPT CALIF.)
-
15002A15002-1363 CARBURETOR (LEFT/INSIDE) (EXCEPT CALIF.)CARBURETOR (LEFT/INSIDE) (EXCEPT CALIF.)
-
15002B15002-1364 CARBURETOR (RIGHT/INSIDE) (EXCEPT CALIF.)CARBURETOR (RIGHT/INSIDE) (EXCEPT CALIF.)
-
15002C15002-1365 CARBURETOR (RIGHT/OUTSIDE) (EXCEPT CALIF.)CARBURETOR (RIGHT/OUTSIDE) (EXCEPT CALIF.)
-
15002D15002-1366 CARBURETOR (LEFT/OUTSIDE) (CALIF. ONLY)CARBURETOR (LEFT/OUTSIDE) (CALIF. ONLY)
-
15002E15002-1367 CARBURETOR (LEFT/INSIDE) (CALIF. ONLY)CARBURETOR (LEFT/INSIDE) (CALIF. ONLY)
-
15002F15002-1368 CARBURETOR (RIGHT/INSIDE) (CALIF. ONLY)CARBURETOR (RIGHT/INSIDE) (CALIF. ONLY)
-
15002G15002-1369 CARBURETOR (RIGHT/OUTSIDE) (CALIF. ONLY)CARBURETOR (RIGHT/OUTSIDE) (CALIF. ONLY)
-
1602116021-1101 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
4302843028-1053 DIAPHRAGM, 5.9MM, AIR CUT VALVEDIAPHRAGM, 5.9MM, AIR CUT VALVE
-
9200192001-1998 BOLT, THROTTLE ADJUSTBOLT, THROTTLE ADJUST
-
223223C0420 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
223A223C0510 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
9200592005-1108 FITTING, FUEL, T, TYPEFITTING, FUEL, T, TYPE
-
92005A92005-1109 FITTING, FUEL, I, TYPEFITTING, FUEL, I, TYPE
-
92005B92005-1119 FITTING, T, TYPE (CALIF. ONLY)FITTING, T, TYPE (CALIF. ONLY)
-
92005C92005-1125 FITTING, T, TYPEFITTING, T, TYPE
-
9200992009-1129 SCREW, 6X16SCREW, 6X16
-
92009A92009-1262 SCREWSCREW
-
92009B92009-1365 SCREW, 5X10SCREW, 5X10
-
9202292022-1199 WASHER, 6.1X11X0.8, POLYACETALWASHER, 6.1X11X0.8, POLYACETAL
-
92022A92022-1480 WASHER, PLAIN, STOP SPRINGWASHER, PLAIN, STOP SPRING
-
9203792037-1075 CLAMP, FUEL TUBECLAMP, FUEL TUBE
-
92037A92037-1142 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1477 CLAMP, TUBECLAMP, TUBE
-
92037C92037-1606 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
9205592055-1004 O-RINGO-RING
-
92055A92055-1223 O-RINGO-RING
-
92055B92055-1245 O-RINGO-RING
-
9205992059-1140 TUBE, 3.5X6.5X180TUBE, 3.5X6.5X180
-
92059A92059-1173 TUBE, 5X9X200TUBE, 5X9X200
-
92059B92059-1492 TUBE, 7.3X12.5X260TUBE, 7.3X12.5X260
-
92059C92059-1598 TUBE, 6.5X9.5X260 (EXCEPT CALIF.)TUBE, 6.5X9.5X260 (EXCEPT CALIF.)
-
92059D92059-1688 TUBE, 7X11X140 (CALIF. ONLY)TUBE, 7X11X140 (CALIF. ONLY)
-
9206892068-006 PLUG, 12X25 (EXCEPT CALIF.)PLUG, 12X25 (EXCEPT CALIF.)
-
9208192081-1617 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
92081A92081-1620 SPRING, THROTTLE ADJUST UPPERSPRING, THROTTLE ADJUST UPPER
-
92081B92081-1621 SPRING, THROTTLE ADJUST LOWERSPRING, THROTTLE ADJUST LOWER
-
92081C92081-1622 SPRING, THROTTLE ADJUST CENTERSPRING, THROTTLE ADJUST CENTER
-
92081D92081-1762 SPRING, STARTER LEVERSPRING, STARTER LEVER
-
9214492144-1072 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
223B223D0408 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
