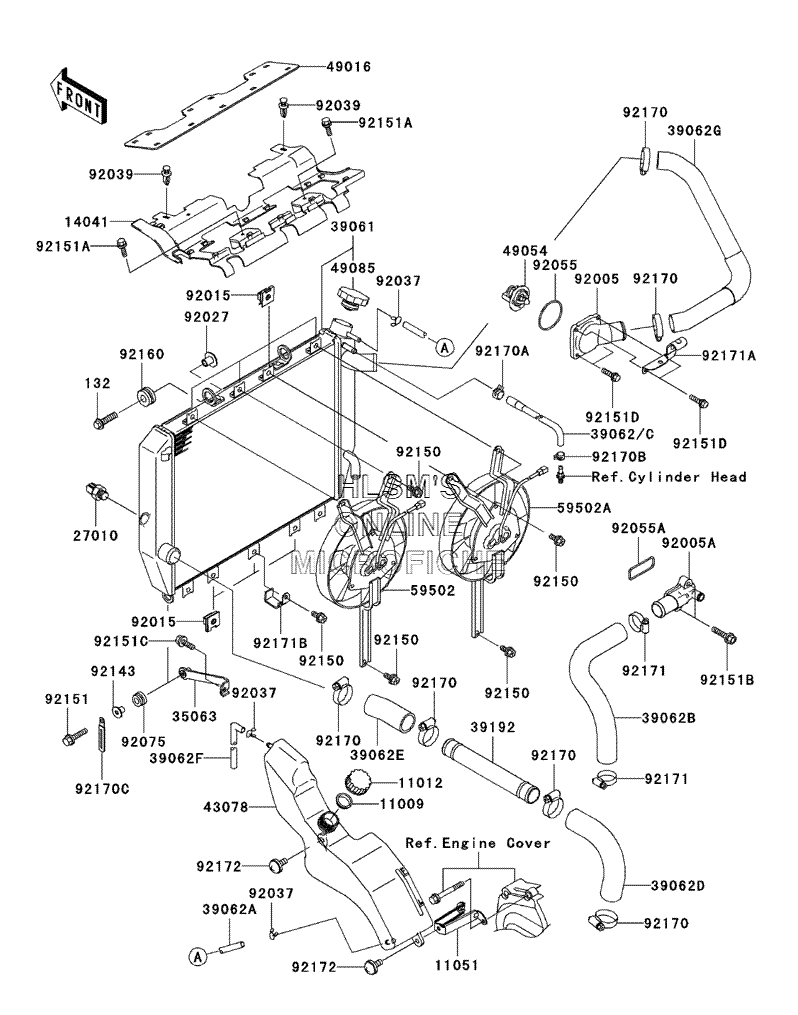

RADIATOR для Kawasaki NINJA ZX-12R - 2002 года выпуска
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1105111051-1435 BRACKETBRACKET
-
1404114041-1170 COVER, COMPCOVER, COMP
-
2701027010-1443 SWITCHSWITCH
-
3506335063-1058 STAYSTAY
-
3906139061-1304 RADIATOR, ASSYRADIATOR, ASSY
-
39062A39062-1719 HOSE, COOLING, RADIATOR, RESERVEHOSE, COOLING, RADIATOR, RESERVE
-
39062B39062-1792 HOSE, COOLING, PUMP, CYLINDERHOSE, COOLING, PUMP, CYLINDER
-
39062C39062-1794 HOSE, COOLING, RADIATORHOSE, COOLING, RADIATOR
-
39062D39062-1795 HOSE, COOLING, PIPE, PUMPHOSE, COOLING, PIPE, PUMP
-
39062E39062-1807 HOSE, COOLING, RADIATOR, PIPEHOSE, COOLING, RADIATOR, PIPE
-
39062F39062-1862 HOSE, COOLINGHOSE, COOLING
-
39062G39062-1863 HOSE, COOLING, HEAD, RADIATORHOSE, COOLING, HEAD, RADIATOR
-
3919239192-1129 PIPE, WATERPIPE, WATER
-
4307843078-0016 RESERVOIRRESERVOIR
-
4901649016-1214 COVER, SEAL, COVER, COMPCOVER, SEAL, COVER, COMP
-
4905449054-1067 THERMOSTATTHERMOSTAT
-
4908549085-1067 CAP, ASSY, PRESSURECAP, ASSY, PRESSURE
-
5950259502-1143 FAN, ASSY (LEFT)FAN, ASSY (LEFT)
-
59502A59502-1144 FAN, ASSY (RIGHT)FAN, ASSY (RIGHT)
-
9200592005-1362 FITTINGFITTING
-
92005A92005-1364 FITTINGFITTING
-
9201592015-1487 NUTNUT
-
9202792027-1134 COLLAR, L=14COLLAR, L=14
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9203992039-1227 RIVETRIVET
-
9205592055-112 O-RING, 53.5X2.6O-RING, 53.5X2.6
-
92055A92055-1402 O-RINGO-RING
-
9207592075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
9214392143-1353 COLLARCOLLAR
-
9215092150-1186 BOLT, 6X12BOLT, 6X12
-
9215192151-1225 BOLT, 6X25BOLT, 6X25
-
92151A92151-1239 BOLT, 6X12BOLT, 6X12
-
92151B92151-1546 BOLT, 6X25BOLT, 6X25
-
92151C92151-1774 BOLT, 6X16BOLT, 6X16
-
92151D92151-1776 BOLTBOLT
-
9216092160-1007 DAMPERDAMPER
-
9217092170-1036 CLAMPCLAMP
-
132132J0830 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
92170A92170-1201 CLAMPCLAMP
-
92170B92170-1493 CLAMPCLAMP
-
92170C92170-1514 CLAMPCLAMP
-
9217192171-0179 CLAMPCLAMP
-
92171A92171-1215 CLAMPCLAMP
-
92171B92171-1465 CLAMP, RADIATORCLAMP, RADIATOR
-
9217292172-0004 SCREW, 6X14SCREW, 6X14
