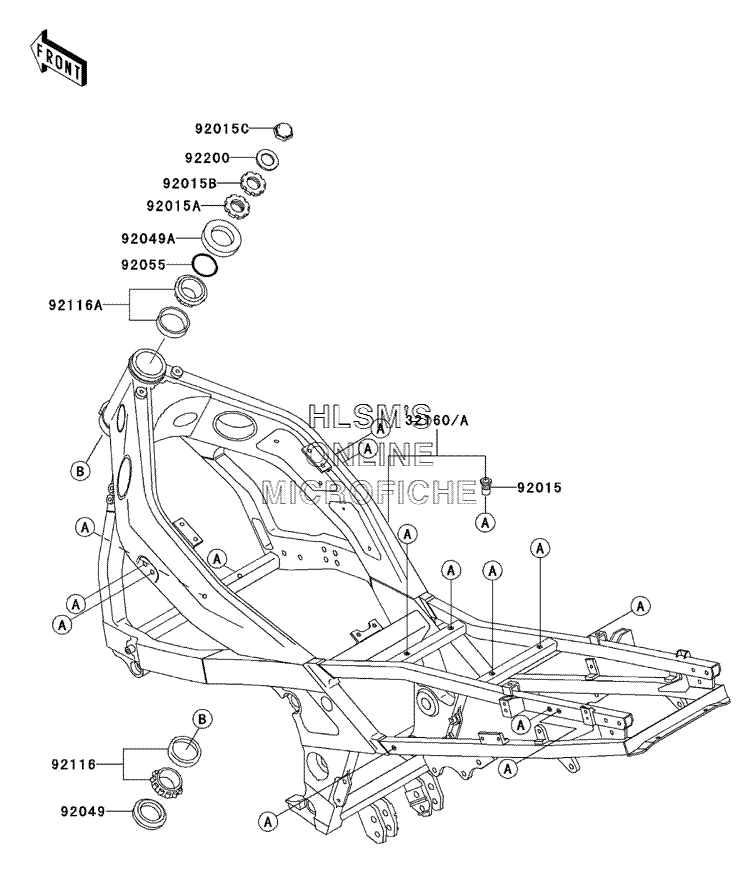

FRAME для Kawasaki NINJA ZX-6 - 2002 года выпуска
-
№АртикулНазвание
-
3216032160-1387-CQ FRAME, COMP, AL (P.C.GRAY) (US ONLY)FRAME, COMP, AL (P.C.GRAY) (US ONLY)
-
32160A32160-1387-EZ FRAME, COMP, AL (C.GRAY) (CANADA ONLY)FRAME, COMP, AL (C.GRAY) (CANADA ONLY)
-
9201592015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
92015A92015-1803 NUT, 25MMNUT, 25MM
-
92015B92015-1810 NUT, 25MMNUT, 25MM
-
92015C92015-1873 NUT, CAP, 22MMNUT, CAP, 22MM
-
9204992049-1162 SEAL, OIL, XMHE36X52X4JSEAL, OIL, XMHE36X52X4J
-
92049A92049-1313 SEAL, OIL, XMH33 70 6.4J, ASEAL, OIL, XMH33 70 6.4J, A
-
9205592055-1459 O-RING, ID=24.5O-RING, ID=24.5
-
9211692116-1009 BEARING, ROLLER, HR320/28XJBEARING, ROLLER, HR320/28XJ
-
92116A92116-1056 BEARING, ROLLER, HI, CAP32005JR, 1BEARING, ROLLER, HI, CAP32005JR, 1
-
9220092200-1126 WASHER, 22.5X36X3.2WASHER, 22.5X36X3.2
