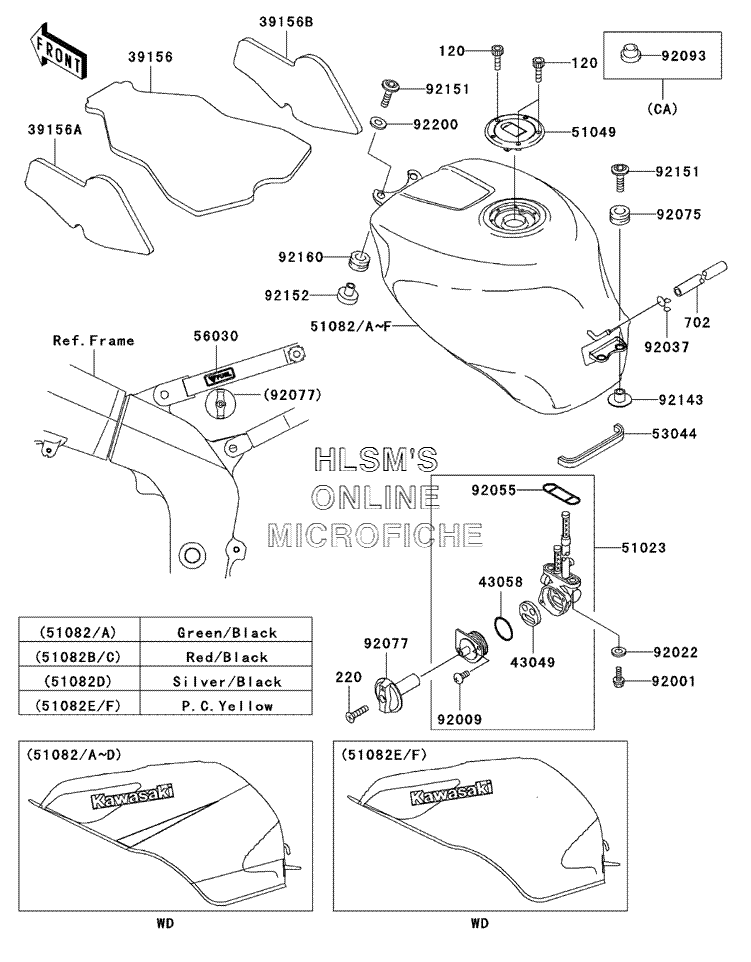

FUEL TANK для Kawasaki NINJA ZX-6R - 2002 года выпуска
-
№АртикулНазвание
-
3915639156-1612 PAD, FUEL TANK, CENTERPAD, FUEL TANK, CENTER
-
39156A39156-1613 PAD, FUEL TANK (LEFT)PAD, FUEL TANK (LEFT)
-
39156B39156-1614 PAD, FUEL TANK (RIGHT)PAD, FUEL TANK (RIGHT)
-
4304943049-1075 PACKING, TAP VALVEPACKING, TAP VALVE
-
4305843058-1083 RING, TAP LEVERRING, TAP LEVER
-
5102351023-1237 TAP, ASSY, FUELTAP, ASSY, FUEL
-
5104951049-1127 CAP, TANK, FUELCAP, TANK, FUEL
-
5108251082-5134-226 TANK, COMP, FUEL (GREEN/BLACK) (EXCEPT CALIF.)TANK, COMP, FUEL (GREEN/BLACK) (EXCEPT CALIF.)
-
51082A51082-5135-226 TANK, COMP, FUEL (GREEN/BLACK) (CALIF. ONLY)TANK, COMP, FUEL (GREEN/BLACK) (CALIF. ONLY)
-
51082B51082-5157-240 TANK, COMP, FUEL (RED/BLACK) (US ONLY)TANK, COMP, FUEL (RED/BLACK) (US ONLY)
-
51082C51082-5158-240 TANK, COMP, FUEL (RED/BLACK) (CALIF. ONLY)TANK, COMP, FUEL (RED/BLACK) (CALIF. ONLY)
-
51082D51082-5190-UH TANK, COMP, FUEL (SILVER/BLACK) (CANADA ONLY)TANK, COMP, FUEL (SILVER/BLACK) (CANADA ONLY)
-
51082E51082-5195-1B TANK, COMP, FUEL (P.C.YELLOW) (EXCEPT CALIF.)TANK, COMP, FUEL (P.C.YELLOW) (EXCEPT CALIF.)
-
120120S0516 BOLT, SOCKETBOLT, SOCKET
-
220220C0416 SCREW, PAN, CROSSCREW, PAN, CROS
-
702702A06520 TUBE, RUBBER, 6X520TUBE, RUBBER, 6X520
-
51082F51082-5196-1B TANK, COMP, FUEL (P.C.YELLOW) (CALIF. ONLY)TANK, COMP, FUEL (P.C.YELLOW) (CALIF. ONLY)
-
5304453044-1296 TRIMTRIM
-
5603056030-1195 LABEL, FUEL TAPLABEL, FUEL TAP
-
9200192001-1524 BOLT, 6X25BOLT, 6X25
-
9200992009-1386 SCREW, 3X8SCREW, 3X8
-
9202292022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
9203792037-010 CLAMP, TUBECLAMP, TUBE
-
9205592055-1112 O-RING, FUEL TAP PACKINGO-RING, FUEL TAP PACKING
-
9207592075-209 DAMPERDAMPER
-
9207792077-1123 KNOB, FUEL TAPKNOB, FUEL TAP
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
-
9214392143-1515 COLLARCOLLAR
-
9215192151-1835 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
-
9215292152-1266 COLLARCOLLAR
-
9216092160-1162 DAMPERDAMPER
-
9220092200-1087 WASHER, 6.5X22X1.6WASHER, 6.5X22X1.6
