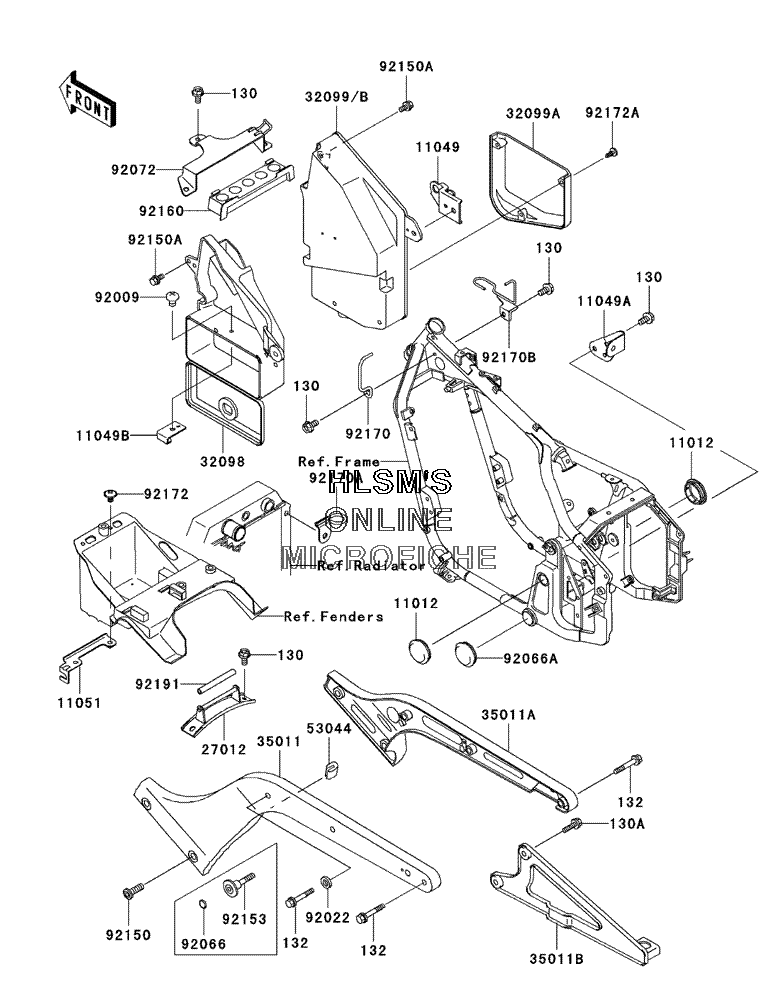

FRAME FITTINGS для Kawasaki Vulcan 800 Classic - 2002 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT, FLANGEDBOLT, FLANGED
-
130A130J0820 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
132132E0835 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1101211012-1926 CAPCAP
-
1104911049-1183 BRACKET, SIDE COVER LOCKBRACKET, SIDE COVER LOCK
-
11049A11049-1233 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
11049B11049-1266 BRACKET, TOOL CASE LOCKBRACKET, TOOL CASE LOCK
-
1105111051-1328 BRACKET, STARTER CABLEBRACKET, STARTER CABLE
-
2701227012-1495 HOOK, SEATHOOK, SEAT
-
3209832098-1106 CASE, TOOLCASE, TOOL
-
3209932099-1163 CASE, BASE (CALIF. ONLY)CASE, BASE (CALIF. ONLY)
-
32099A32099-1164 CASECASE
-
32099B32099-1167 CASE, BASE (EXCEPT CALIF.)CASE, BASE (EXCEPT CALIF.)
-
3501135011-1725 STAY (LEFT)STAY (LEFT)
-
35011A35011-1726 STAY (RIGHT)STAY (RIGHT)
-
35011B35011-1727 STAY, MUFFLERSTAY, MUFFLER
-
5304453044-1292 TRIM, L=20TRIM, L=20
-
9200992009-1653 SCREW, 5X14SCREW, 5X14
-
9202292022-1823 WASHERWASHER
-
9206692066-1277 PLUGPLUG
-
92066A92066-1434 PLUGPLUG
-
9207292072-1320 BAND, BATTERYBAND, BATTERY
-
9215092150-1517 BOLT, SOCKET, 10X30BOLT, SOCKET, 10X30
-
92150A92150-1689 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9215392153-1100 BOLT, BUNGEE CORD HOOKBOLT, BUNGEE CORD HOOK
-
9216092160-1634 DAMPER, BATTERY BANDDAMPER, BATTERY BAND
-
9217092170-1605 CLAMP, HARNESSCLAMP, HARNESS
-
92170A92170-1608 CLAMP, CABLECLAMP, CABLE
-
92170B92170-1622 CLAMP, HARNESS AND CABLECLAMP, HARNESS AND CABLE
-
9217292172-0005 SCREW, 6X10SCREW, 6X10
-
92172A92172-0006 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
9219192191-1009 TUBE, 6X10X80TUBE, 6X10X80
