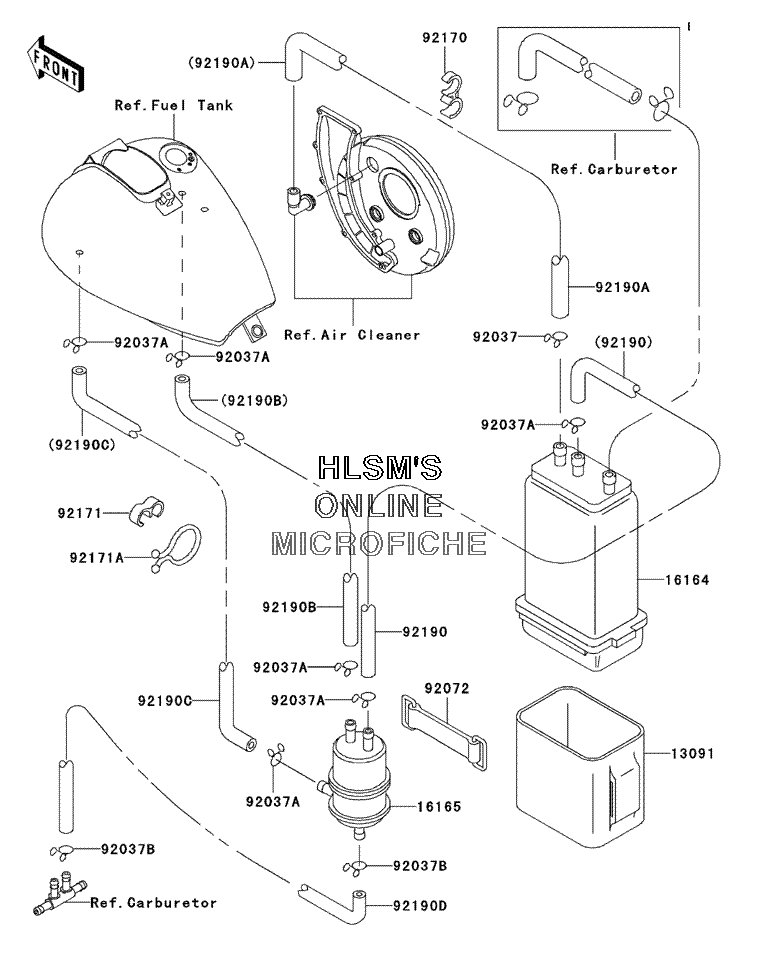

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki Vulcan 800 Drifter - 2002 года выпуска
-
№АртикулНазвание
-
1309113091-1308 HOLDER, CANISTER (CALIF. ONLY)HOLDER, CANISTER (CALIF. ONLY)
-
1616416164-1052 CANISTER (CALIF. ONLY)CANISTER (CALIF. ONLY)
-
1616516165-1001 SEPARATOR (CALIF. ONLY)SEPARATOR (CALIF. ONLY)
-
9203792037-1104 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92037A92037-147 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
92037B92037-1610 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9207292072-1419 BAND, L=50 (CALIF. ONLY)BAND, L=50 (CALIF. ONLY)
-
9217092170-1353 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
9217192171-1184 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92171A92171-1185 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9219092190-1618 TUBE, CANISTER, SEPA (CALIF. ONLY)TUBE, CANISTER, SEPA (CALIF. ONLY)
-
92190A92190-1619 TUBE, 7X12X540 (GREEN) (CALIF. ONLY)TUBE, 7X12X540 (GREEN) (CALIF. ONLY)
-
92190B92190-1620 TUBE, SEPA, TANK (CALIF. ONLY)TUBE, SEPA, TANK (CALIF. ONLY)
-
92190C92190-1621 TUBE, SEPA, TANK (CALIF. ONLY)TUBE, SEPA, TANK (CALIF. ONLY)
-
92190D92190-1622 TUBE, SEPA, FITTING (CALIF. ONLY)TUBE, SEPA, FITTING (CALIF. ONLY)
