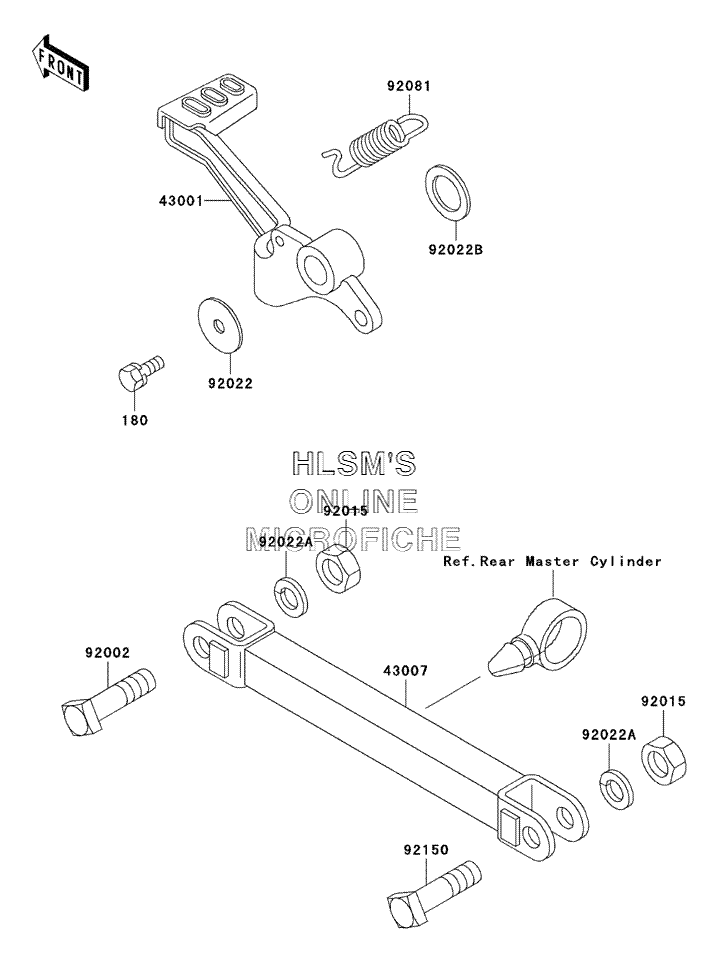

BRAKE PEDAL W/ TORQUE LINK для Kawasaki NINJA 250R - 2003 года выпуска
-
№АртикулНазвание
-
180180D0616 BOLT, UPSET, WSBOLT, UPSET, WS
-
4300143001-1226 LEVER, BRAKE, PEDALLEVER, BRAKE, PEDAL
-
4300743007-1134 ROD, TORQUEROD, TORQUE
-
9200292002-1708 BOLT, 10X32BOLT, 10X32
-
9201592015-1962 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9202292022-1282 WASHER, 7X28X1.6WASHER, 7X28X1.6
-
92022A92022-1540 WASHER, SPRING, 10MMWASHER, SPRING, 10MM
-
92022B92022-326 WASHER, 15.3X24X1WASHER, 15.3X24X1
-
9208192081-1833 SPRING, BRAKE PEDALSPRING, BRAKE PEDAL
-
9215092150-1901 BOLT, 10X37BOLT, 10X37
