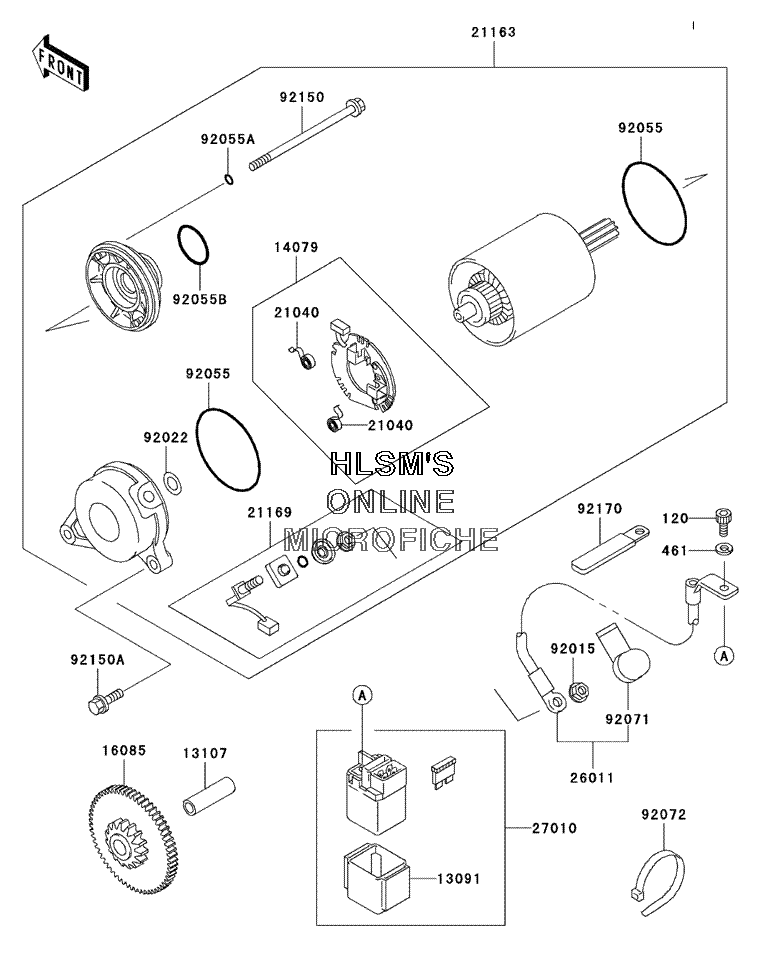

STARTER MOTOR для Kawasaki NINJA ZX-7R - 2003 года выпуска
-
№АртикулНазвание
-
120120S0510 BOLT, SOCKETBOLT, SOCKET
-
461461K0500 WASHER, SPRING, 5MM (BLACK)WASHER, SPRING, 5MM (BLACK)
-
1309113091-1884 HOLDER, MAGNETIC SWITCHHOLDER, MAGNETIC SWITCH
-
1310713107-1112 SHAFTSHAFT
-
1407914079-2055 HOLDER, ASSY., CARBON BRUSHHOLDER, ASSY., CARBON BRUSH
-
1608516085-1104 GEAR, IDLEGEAR, IDLE
-
2104021040-1051 SPRING, BRUSHSPRING, BRUSH
-
2116321163-1193 STARTER, ELECTRICSTARTER, ELECTRIC
-
2116921169-1058 TERMINAL, STARTERTERMINAL, STARTER
-
2601126011-1667 WIRE, LEAD, STARTERWIRE, LEAD, STARTER
-
2701027010-1327 SWITCH, MAGNETICSWITCH, MAGNETIC
-
9201592015-1623 NUTNUT
-
9202292022-2200 WASHERWASHER
-
9205592055-1260 O-RING, 62MMO-RING, 62MM
-
92055A92055-1261 O-RING, 4.5MMO-RING, 4.5MM
-
92055B92055-1262 O-RING, 24.4MMO-RING, 24.4MM
-
9207192071-1120 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
9207292072-1195 BAND, L=202BAND, L=202
-
9215092150-1237 BOLTBOLT
-
92150A92150-1779 BOLT, 6X25BOLT, 6X25
-
9217092170-1514 CLAMPCLAMP
