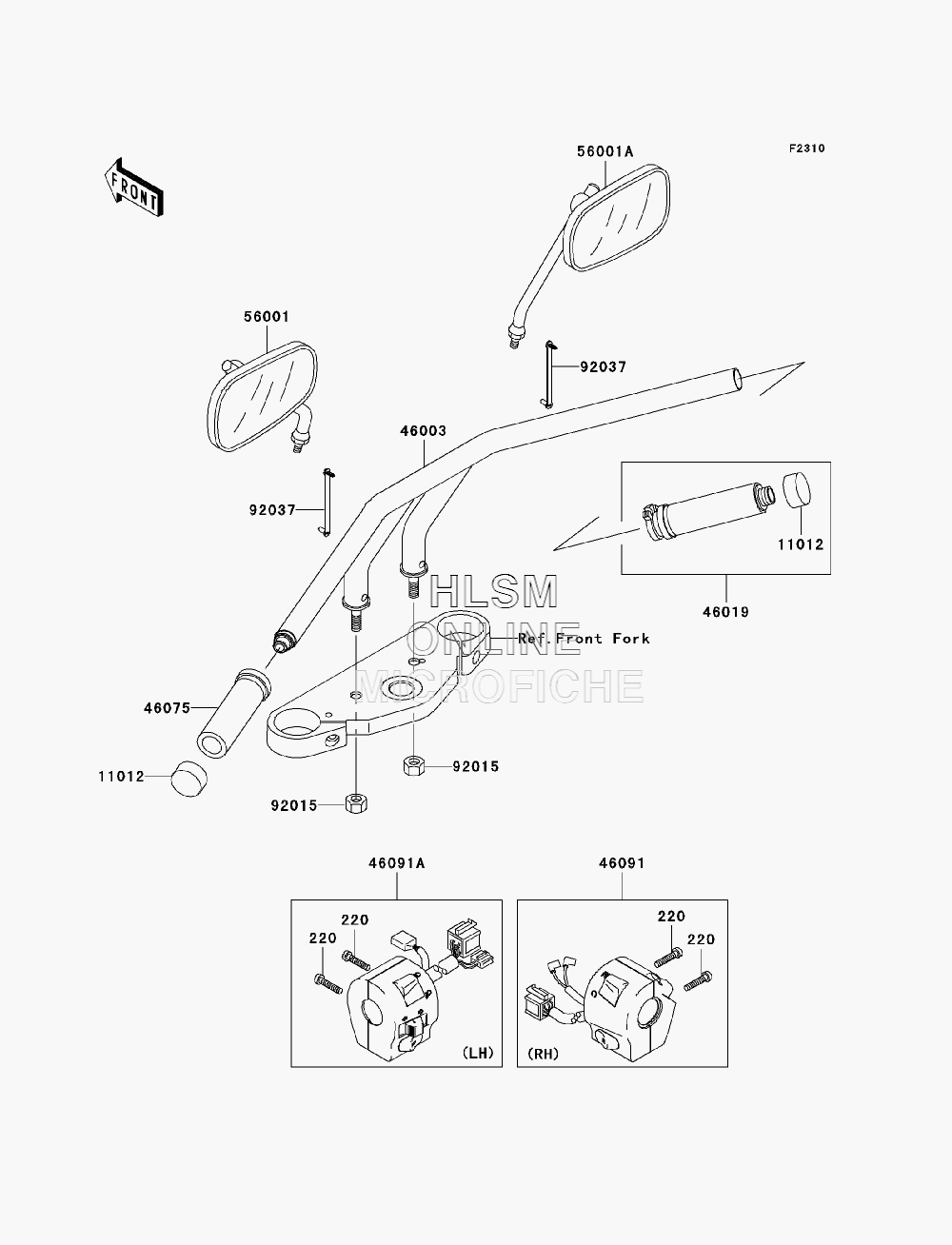

HANDLEBAR для Kawasaki Vulcan 1500 Mean Streak (VN1500-P2) - 2003 года выпуска
-
№АртикулНазвание
-
220220R0525 SCREW-PAN-CROS, 5X25SCREW-PAN-CROS, 5X25
-
1101211012-1975 CAP, GRIP ENDCAP, GRIP END
-
4600346003-1560 HANDLEHANDLE
-
4601946019-1109 GRIP-ASSY, THROTTLEGRIP-ASSY, THROTTLE
-
4607546075-1074 GRIP, LEFT HANDGRIP, LEFT HAND
-
4609146091-1827 HOUSING-ASSY-CONTROL, RIGHT HANDHOUSING-ASSY-CONTROL, RIGHT HAND
-
46091A46091-1828 HOUSING-ASSY-CONTROL, LEFT HANDHOUSING-ASSY-CONTROL, LEFT HAND
-
5600156001-1555 MIRROR-ASSY, LEFT HANDMIRROR-ASSY, LEFT HAND
-
56001A56001-1556 MIRROR-ASSY, RIGHT HANDMIRROR-ASSY, RIGHT HAND
-
9201592015-1717 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
