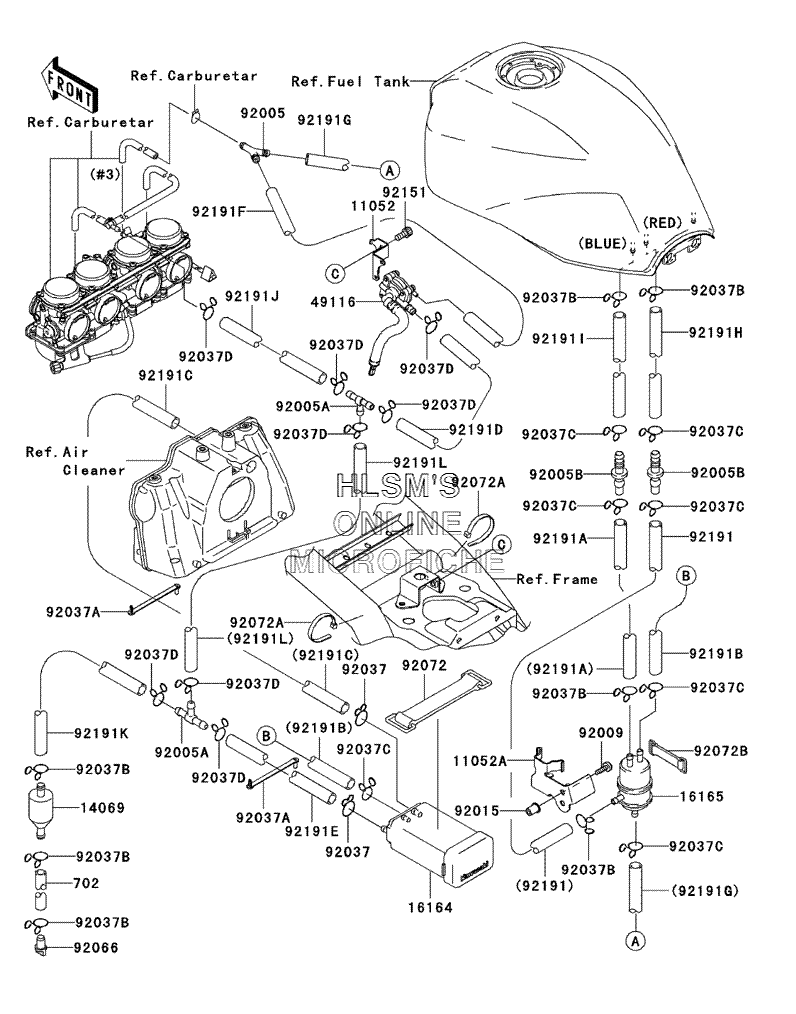

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki ZRX1200 - 2003 года выпуска
-
№АртикулНазвание
-
1105211052-1145 BRACKET, FUEL TANK DAMPERBRACKET, FUEL TANK DAMPER
-
11052A11052-1146 BRACKETBRACKET
-
1406914069-1051 BREATHERBREATHER
-
1616416164-1070 CANISTERCANISTER
-
1616516165-1070 SEPARATORSEPARATOR
-
4911649116-1187 VALVE, ASSYVALVE, ASSY
-
9200592005-1034 FITTING, TUBEFITTING, TUBE
-
92005A92005-1119 FITTING, T, TYPEFITTING, T, TYPE
-
92005B92005-1206 FITTINGFITTING
-
9200992009-1662 SCREW, 6X14SCREW, 6X14
-
9201592015-1700 NUTNUT
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
92037A92037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037B92037-147 CLAMP, TUBECLAMP, TUBE
-
92037C92037-1712 CLAMPCLAMP
-
92037D92037-1972 CLAMP, TUBECLAMP, TUBE
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9207292072-071 BAND, L=100BAND, L=100
-
92072A92072-1237 BAND, L=250BAND, L=250
-
92072B92072-1419 BAND, L=50BAND, L=50
-
9215192151-1212 BOLT, SOCKET, 5X10BOLT, SOCKET, 5X10
-
9219192191-1581 TUBE, SEPARATOR, TANK (RED)TUBE, SEPARATOR, TANK (RED)
-
702702A0760 TUBE, RUBBERTUBE, RUBBER
-
92191A92191-1582 TUBE, TANK, SEPARATOR (BULE)TUBE, TANK, SEPARATOR (BULE)
-
92191B92191-1583 TUBE, SEPARATOR, CANISTER (BULE)TUBE, SEPARATOR, CANISTER (BULE)
-
92191C92191-1584 TUBE, CANISTER, CLEANER (GREEN)TUBE, CANISTER, CLEANER (GREEN)
-
92191D92191-1585 TUBE, FITTING, VALVE (YELLOW)TUBE, FITTING, VALVE (YELLOW)
-
92191E92191-1586 TUBE, FITTING, CANISTER (YELLOW)TUBE, FITTING, CANISTER (YELLOW)
-
92191F92191-1587 TUBE, CARBURETOR, VALVE (WHITE)TUBE, CARBURETOR, VALVE (WHITE)
-
92191G92191-1588 TUBE, SEPARATOR, FITTING (WHITE)TUBE, SEPARATOR, FITTING (WHITE)
-
92191H92191-1649 TUBE (RED)TUBE (RED)
-
92191I92191-1650 TUBE, BULETUBE, BULE
-
92191J92191-1651 TUBE, 7X12X165 (YELLOW)TUBE, 7X12X165 (YELLOW)
-
92191K92191-1652 TUBE, 7X11X430TUBE, 7X11X430
-
92191L92191-1670 TUBE, 7X12X235 (YELLOW)TUBE, 7X12X235 (YELLOW)
