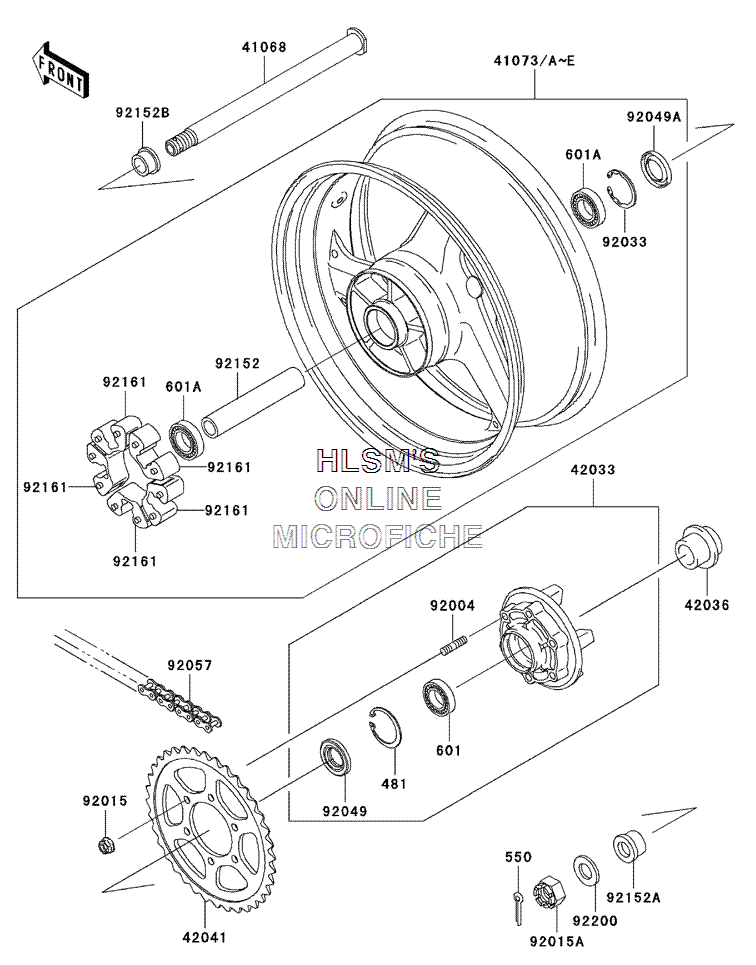

WHEEL - REAR W/ CHAIN для Kawasaki NINJA ZX-12R - 2004 года выпуска
-
№АртикулНазвание
-
481481J5500 CIRCLIPCIRCLIP
-
550550D4040 PIN, COTTER, 4.0X40PIN, COTTER, 4.0X40
-
601601B6006G BEARING, BALL, #6006GBEARING, BALL, #6006G
-
601A601B6205UU BEARING, BALLBEARING, BALL
-
4106841068-1416 AXLE, REARAXLE, REAR
-
41073C41073-1681-R2 WHEEL, ASSY, REAR (BLACK)WHEEL, ASSY, REAR (BLACK)
-
4203342033-1203 COUPLING, ASSY, REAR HUBCOUPLING, ASSY, REAR HUB
-
4203642036-1279 SLEEVE, REAR HUB, L=22SLEEVE, REAR HUB, L=22
-
4204142041-1523 SPROCKET, HUB (46 TEETH)SPROCKET, HUB (46 TEETH)
-
9200492004-1275 STUD, 10X19STUD, 10X19
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1844 NUT, CASTLE, 24MMNUT, CASTLE, 24MM
-
9203392033-1043 RING, SNAP, 52MMRING, SNAP, 52MM
-
9204992049-1263 SEAL, OIL, PJN40556SEAL, OIL, PJN40556
-
92049A92049-1375 SEAL, OIL, REAR HUBSEAL, OIL, REAR HUB
-
9205792057-1477 CHAIN, DRIVE, DID50ZVM3X116LCHAIN, DRIVE, DID50ZVM3X116L
-
9215292152-1080 COLLAR, REAR HUB, L=152.5COLLAR, REAR HUB, L=152.5
-
92152A92152-1181 COLLAR, REAR AXLE, L=16.5 (LEFT)COLLAR, REAR AXLE, L=16.5 (LEFT)
-
92152B92152-1246 COLLAR, REAR AXLE, L=16 (RIGHT)COLLAR, REAR AXLE, L=16 (RIGHT)
-
9216192161-1286 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-1479 WASHER, 25.5X38X3.2WASHER, 25.5X38X3.2
