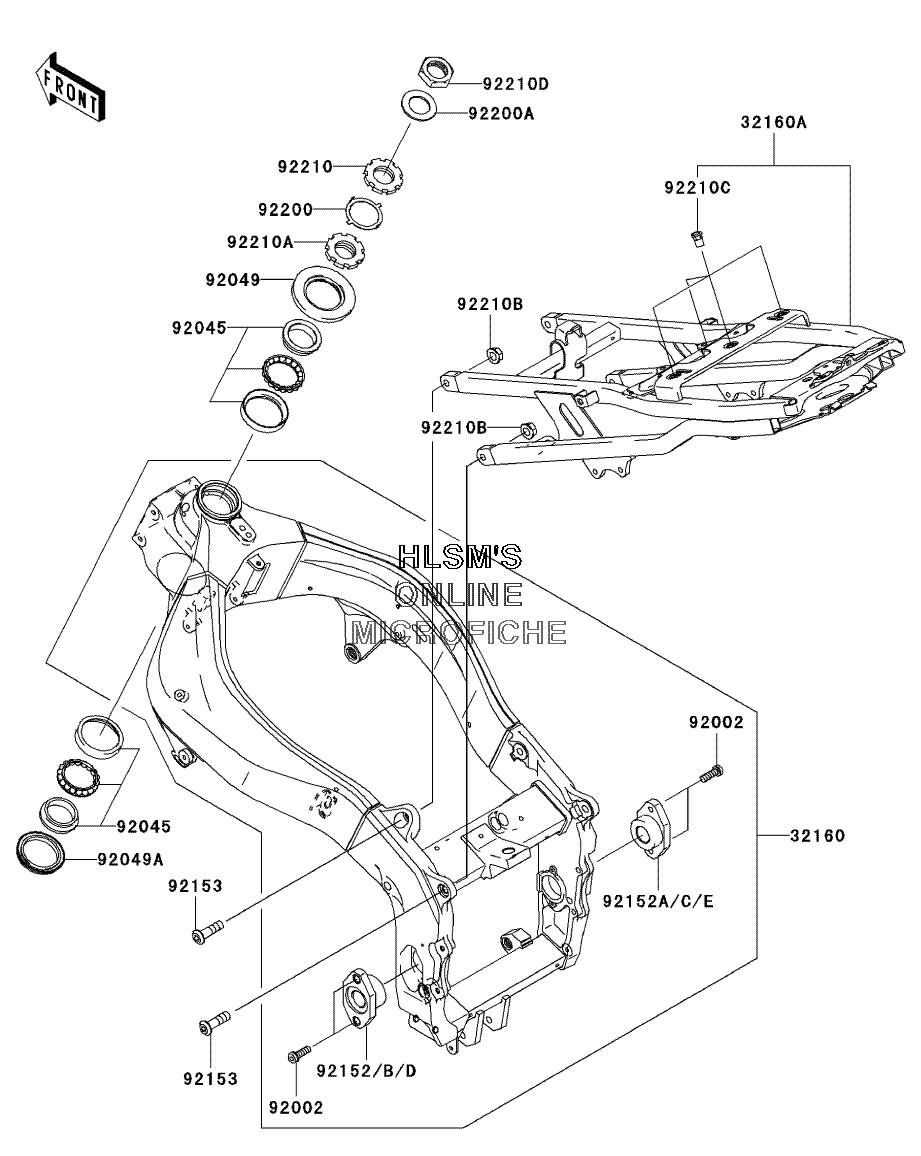

FRAME для Kawasaki NINJA ZX-6RR - 2004 года выпуска
-
№АртикулНазвание
-
3216032160-0033-8F FRAME, COMP, AL, FRONT (F.S.BLACK)FRAME, COMP, AL, FRONT (F.S.BLACK)
-
32160A32160-1819-8F FRAME, COMP, AL, REAR (F.S.BLACK)FRAME, COMP, AL, REAR (F.S.BLACK)
-
9200292002-1418 BOLT, 6X20BOLT, 6X20
-
9204592045-1384 BEARING, BALL, SF07A17PX1V1BEARING, BALL, SF07A17PX1V1
-
9204992049-1382 SEAL, OIL, XMH 43 75 6.4JSEAL, OIL, XMH 43 75 6.4J
-
92049A92049-1383 SEAL, OIL, XMHE 43 55 4JSEAL, OIL, XMHE 43 55 4J
-
9215292152-0042-8F COLLAR, PIVOT (LEFT) 1MM (F.S.BLACK) (OPT)COLLAR, PIVOT (LEFT) 1MM (F.S.BLACK) (OPT)
-
92152A92152-0043-8F COLLAR, PIVOT (RIGHT) 1MM (F.S.BLACK) (OPT)COLLAR, PIVOT (RIGHT) 1MM (F.S.BLACK) (OPT)
-
92152B92152-0044-8F COLLAR, PIVOT (LEFT) 2MM (F.S.BLACK) (OPT)COLLAR, PIVOT (LEFT) 2MM (F.S.BLACK) (OPT)
-
92152C92152-0045-8F COLLAR, PIVOT (RIGHT) 2MM (F.S.BLACK) (OPT)COLLAR, PIVOT (RIGHT) 2MM (F.S.BLACK) (OPT)
-
92152D92152-1482-8F COLLAR, PIVOT (LEFT) STD (F.S.BLACK)COLLAR, PIVOT (LEFT) STD (F.S.BLACK)
-
92152E92152-1483-8F COLLAR, PIVOT (RIGHT) STD (F.S.BLACK)COLLAR, PIVOT (RIGHT) STD (F.S.BLACK)
-
9215392153-1164 BOLT, SOCKET, 10X35BOLT, SOCKET, 10X35
-
9220092200-0036 WASHERWASHER
-
92200A92200-1084 WASHER, 25.5X42X2.3WASHER, 25.5X42X2.3
-
9221092210-0062 NUT, STEERING STEM 35MMNUT, STEERING STEM 35MM
-
92210A92210-0077 NUT, STEERING STEM, 35MMNUT, STEERING STEM, 35MM
-
92210B92210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210C92210-1397 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
92210D92210-1412 NUT, 25MMNUT, 25MM
