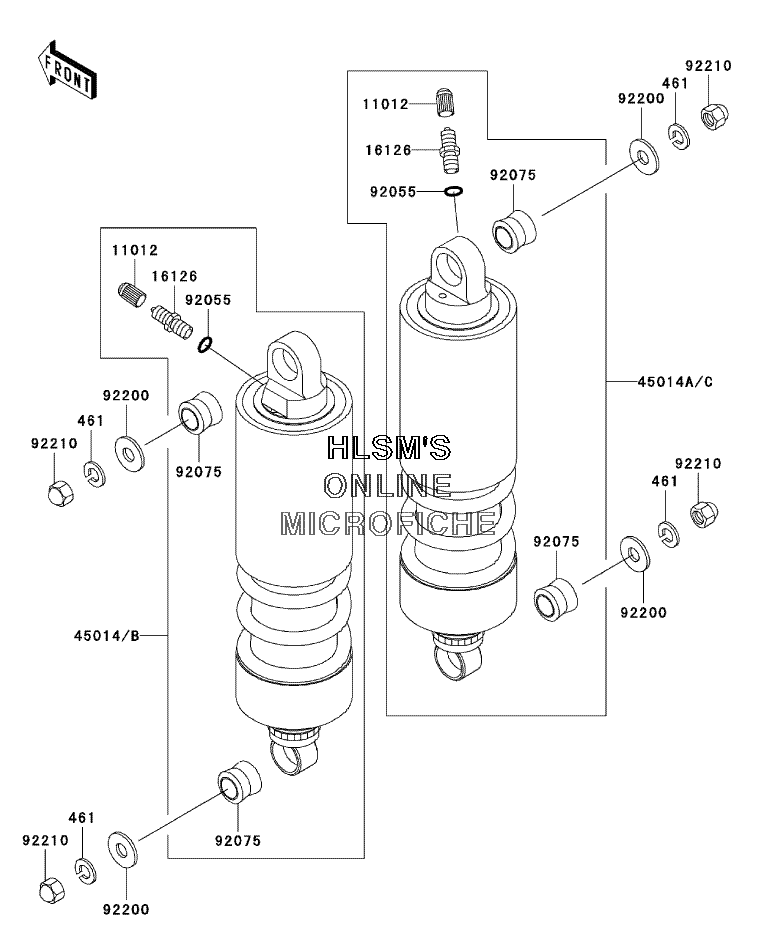

SUSPENSION - SHOCK ABSORBER для Kawasaki Vulcan 1500 Drifter - 2004 года выпуска
-
№АртикулНазвание
-
461461S1000 WASHER, SPRING, 10MMWASHER, SPRING, 10MM
-
1101211012-1283 CAPCAP
-
1612616126-1105 VALVE, AIRVALVE, AIR
-
45014B45014-1793 SHOCKABSORBER (LEFT)SHOCKABSORBER (LEFT)
-
45014C45014-1794 SHOCKABSORBER (RIGHT)SHOCKABSORBER (RIGHT)
-
9205592055-1130 O-RINGO-RING
-
9207592075-1387 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
-
9220092200-1565 WASHER, 10.5X26X2.5WASHER, 10.5X26X2.5
-
9221092210-1288 NUT, CAP, 10MMNUT, CAP, 10MM
