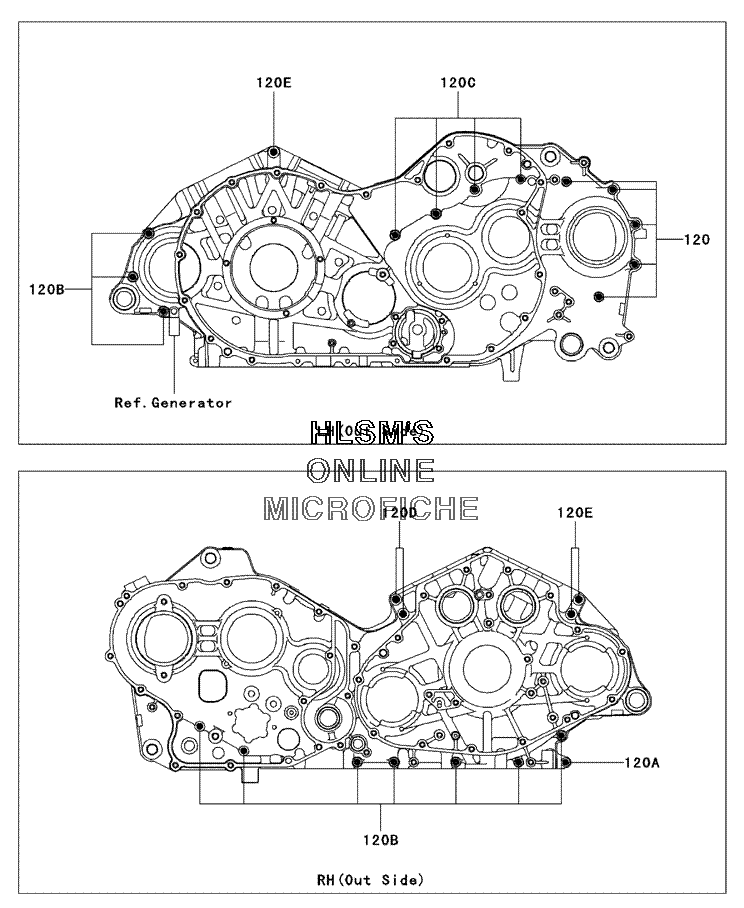

CRANKCASE BOLT PATTERN для Kawasaki Vulcan 2000 - 2004 года выпуска
-
№АртикулНазвание
-
120120R06120 BOLT, SOCKET, 6X120BOLT, SOCKET, 6X120
-
120A120R0630 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
120B120R0675 BOLT, SOCKET, 6X75BOLT, SOCKET, 6X75
-
120C120R0695 BOLT, SOCKET, 6X95BOLT, SOCKET, 6X95
-
120D120W0885 BOLT, SOCKET, 8X85BOLT, SOCKET, 8X85
-
120E120W0895 BOLT, SOCKET, 8X95BOLT, SOCKET, 8X95
