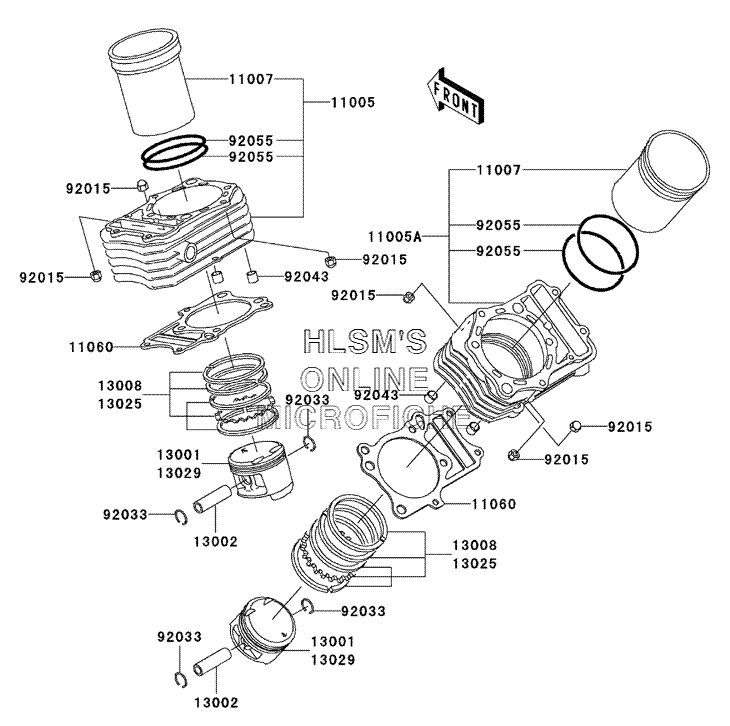

CYLINDER/PISTON(S) для Kawasaki Vulcan 800 Drifter - 2004 года выпуска
-
№АртикулНазвание
-
1100511005-1768 CYLINDER, ENGINE, FRONTCYLINDER, ENGINE, FRONT
-
11005A11005-1770 CYLINDER, ENGINE, REARCYLINDER, ENGINE, REAR
-
1100711007-1134 LINER, CYLINDERLINER, CYLINDER
-
1106011060-1678 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-1434 PISTON, ENGINE (STD)PISTON, ENGINE (STD)
-
1300213002-1056 PIN, PISTONPIN, PISTON
-
1300813008-1164 RING, SET, PISTON (STD)RING, SET, PISTON (STD)
-
1302513025-1127 RING, SET, PISTON (O/S, 0.50) (OPT)RING, SET, PISTON (O/S, 0.50) (OPT)
-
1302913029-1228 PISTON, ENGINE (O/S, 0.50) (OPT)PISTON, ENGINE (O/S, 0.50) (OPT)
-
9201592015-1370 NUT, CAP, 8MMNUT, CAP, 8MM
-
9203392033-1188 RING, SNAPRING, SNAP
-
9204392043-1266 PIN, 11X14X12.3PIN, 11X14X12.3
-
9205592055-1535 O-RING, 95.3X2.5O-RING, 95.3X2.5
