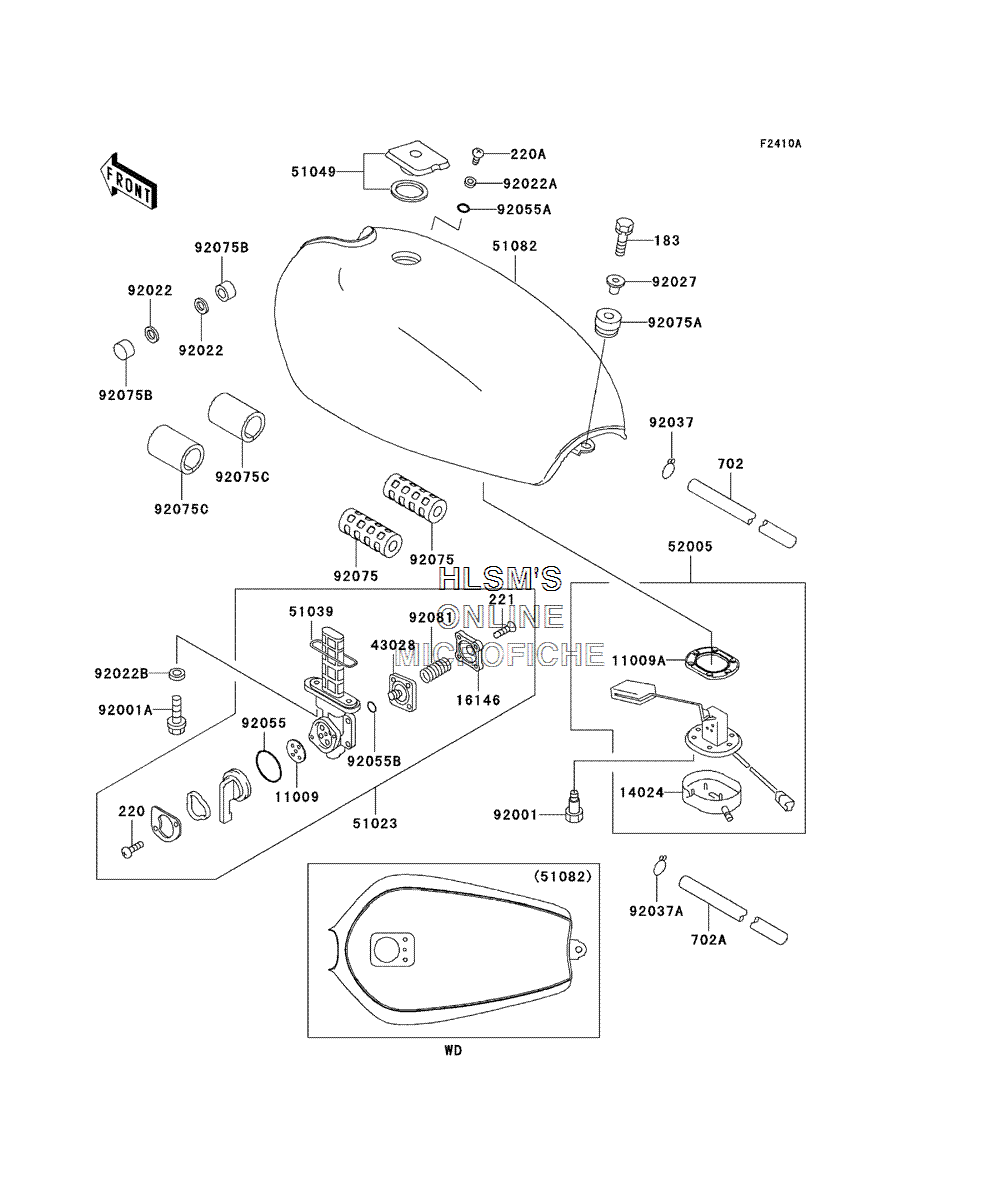

FUEL TANK для Kawasaki Police 1000 - 2005 года выпуска
-
№АртикулНазвание
-
183183B0830 BOLT, UPSET, WS, SMALLBOLT, UPSET, WS, SMALL
-
220220B0308 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220B0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
221221B0414 SCREW, CSK, CROS, 4X14SCREW, CSK, CROS, 4X14
-
702702A05800 TUBE, RUBBER, 5X800TUBE, RUBBER, 5X800
-
702A702A07780 TUBE, RUBBER, 7X10X780TUBE, RUBBER, 7X10X780
-
1100911009-1194 GASKET, TAP VALVEGASKET, TAP VALVE
-
11009A11009-1826 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
1402414024-1434 COVER, FUEL GAUGECOVER, FUEL GAUGE
-
1614616146-1005 COVER, ASSY., TAP DIAPHRAGMCOVER, ASSY., TAP DIAPHRAGM
-
4302843028-1015 DIAPHRAGM, TAPDIAPHRAGM, TAP
-
5102351023-1375 TAP, ASSY., FUELTAP, ASSY., FUEL
-
5103951039-010 RING, TAP FLANGEDRING, TAP FLANGED
-
5104951049-1137 CAP, TANK, FUELCAP, TANK, FUEL
-
5108251082-5096-358 TANK, COMP, FUEL (EBONY) /WHITETANK, COMP, FUEL (EBONY) /WHITE
-
5200552005-1132 GAUGE, FUELGAUGE, FUEL
-
9200192001-1069 BOLT, FUEL GAUGEBOLT, FUEL GAUGE
-
92001A92001-1091 BOLT, 6X20BOLT, 6X20
-
9202292022-044 WASHER, 10.5X26X2.3WASHER, 10.5X26X2.3
-
92022A92022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
92022B92022-1977 WASHER, 5.1X10X1.0WASHER, 5.1X10X1.0
-
9202792027-1134 COLLAR, L=14COLLAR, L=14
-
9203792037-1461 CLAMP, TUBECLAMP, TUBE
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-1027 O-RING, TAP LEVERO-RING, TAP LEVER
-
92055A92055-1552 O-RING, ID=9O-RING, ID=9
-
92055B92055-1664 O-RINGO-RING
-
9207592075-084 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075A92075-1116 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075B92075-125 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075C92075-1652 DAMPERDAMPER
-
9208192081-1171 SPRING, TAP DIAPHRAGMSPRING, TAP DIAPHRAGM
