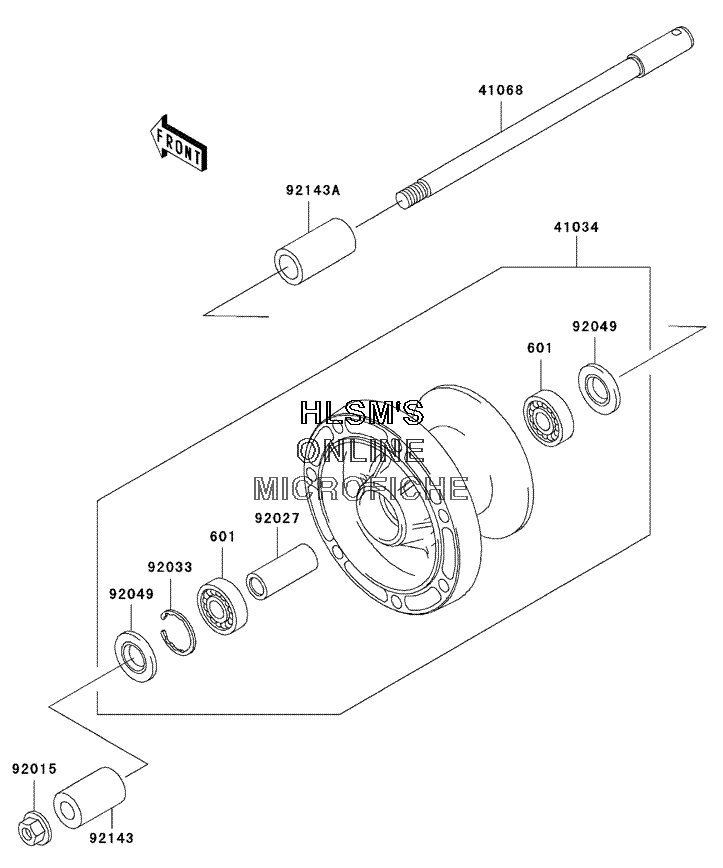

WHEEL - FRONT для Kawasaki Vulcan 1500 Classic - 2005 года выпуска
-
№АртикулНазвание
-
601601B6004UU BEARING, BALL, #6004UUC3BEARING, BALL, #6004UUC3
-
4103441034-1266 DRUM, ASSY., FRONT BRAKEDRUM, ASSY., FRONT BRAKE
-
4106841068-1378 AXLE, FRONTAXLE, FRONT
-
9201592015-1993 NUT, FLANGED, 18MMNUT, FLANGED, 18MM
-
9202792027-1752 COLLAR, 20.2X28X70COLLAR, 20.2X28X70
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204992049-1057 SEAL, OIL, BJN30427, C3SEAL, OIL, BJN30427, C3
-
9214392143-1837 COLLAR, FRONT AXLE (LEFT) L=48.5COLLAR, FRONT AXLE (LEFT) L=48.5
-
92143A92143-1854 COLLAR, FRONT AXLE (RIGHT) L=57.5COLLAR, FRONT AXLE (RIGHT) L=57.5
