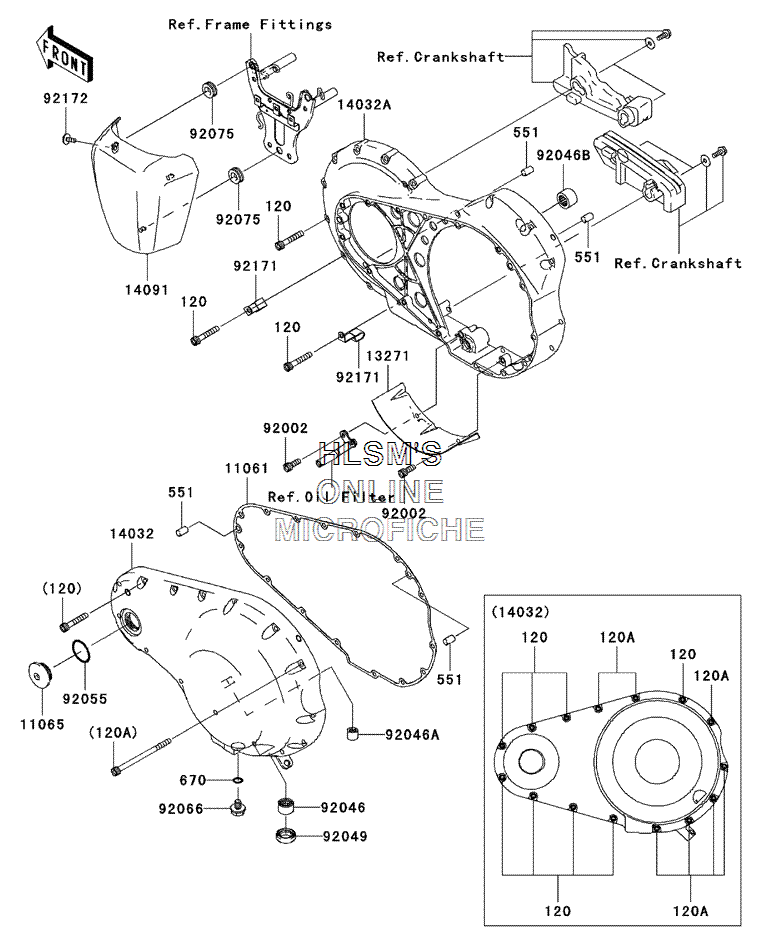

ENGINE COVER(S) - LEFT для Kawasaki Vulcan 2000 Limited - 2005 года выпуска
-
№АртикулНазвание
-
120120R0635 BOLT-SOCKETBOLT-SOCKET
-
120A120R0690 BOLT-SOCKETBOLT-SOCKET
-
551551A0814 PIN-DOWEL, 8X14PIN-DOWEL, 8X14
-
670670D1508 O RING, 8MMO RING, 8MM
-
1106111061-0016 GASKET, CLUTCH, OUTSIDEGASKET, CLUTCH, OUTSIDE
-
1106511065-0025 CAPCAP
-
1327113271-0083 PLATEPLATE
-
1403214032-0010 COVER-CLUTCH, OUTERCOVER-CLUTCH, OUTER
-
14032A14032-0061 COVER-CLUTCH, INNERCOVER-CLUTCH, INNER
-
1409114091-0289 COVERCOVER
-
9200292002-1778 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9204692046-1010 BEARING-NEEDLE, HK1210BEARING-NEEDLE, HK1210
-
92046A92046-1142 BEARING-NEEDLE, HK0709BEARING-NEEDLE, HK0709
-
92046B92046-1163 BEARING-NEEDLE, HK1212BEARING-NEEDLE, HK1212
-
9204992049-1475 SEAL-OIL, CLUTCH RELEASESEAL-OIL, CLUTCH RELEASE
-
9205592055-049 RING-O, 31.7X2.4RING-O, 31.7X2.4
-
9206692066-1026 PLUG, DRAIN, 8X10PLUG, DRAIN, 8X10
-
9207592075-1629 DAMPERDAMPER
-
9217192171-0153 CLAMP, SENSOR CODECLAMP, SENSOR CODE
-
9217292172-0101 SCREW, 5X12SCREW, 5X12
