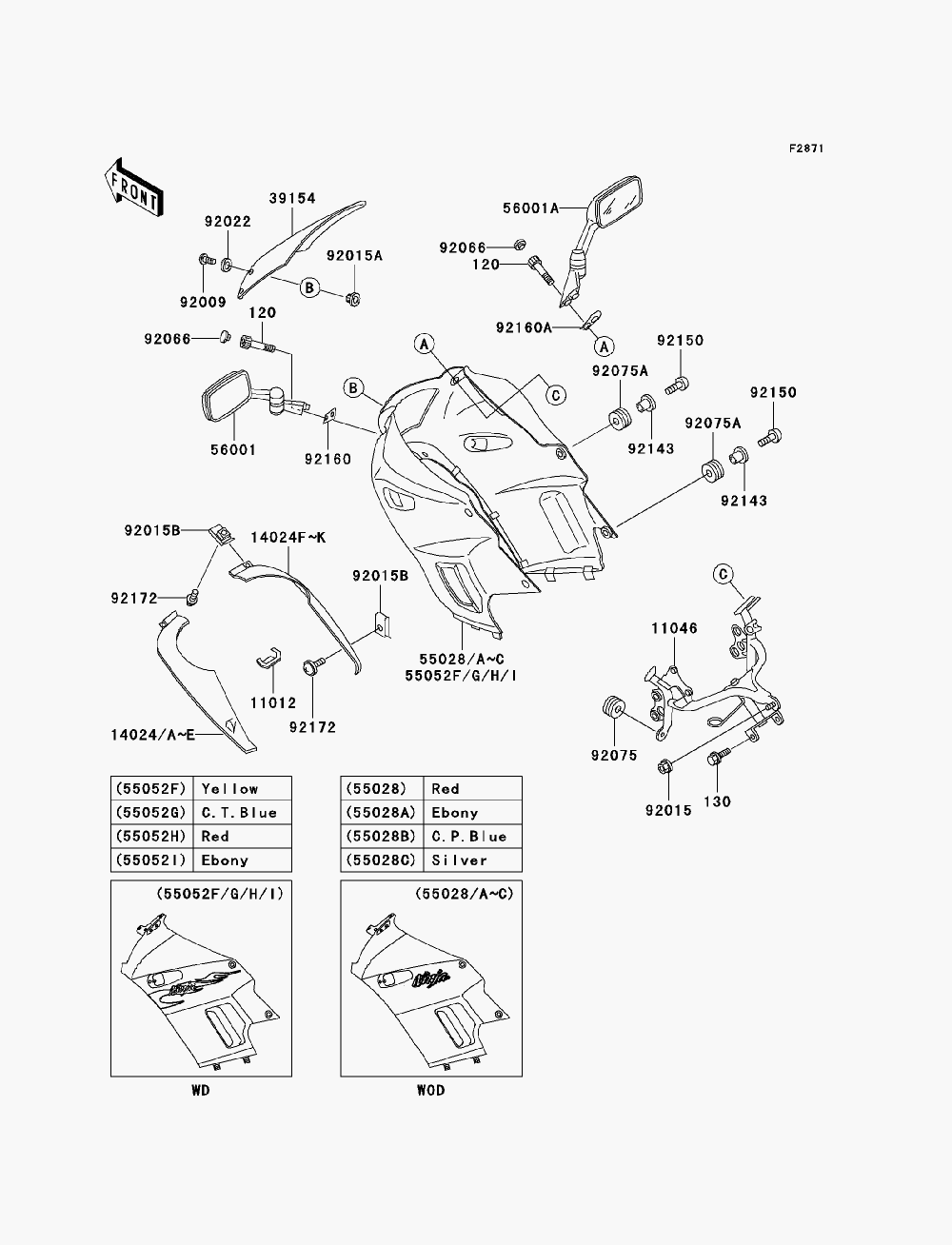

COWLING для Kawasaki NINJA 250R - 2006 года выпуска
-
№АртикулНазвание
-
1101211012-1587 CAP, RADIATOR COVERCAP, RADIATOR COVER
-
1104611046-1289 BRACKET, COWLING STAYBRACKET, COWLING STAY
-
1402414024-1580-G2 COVER, RADIATOR, LEFT HAND, C.P.RED (FOR G2)COVER, RADIATOR, LEFT HAND, C.P.RED (FOR G2)
-
14024A14024-1580-IG COVER, RADIATOR, LEFT HAND, EBONY (FOR IG)COVER, RADIATOR, LEFT HAND, EBONY (FOR IG)
-
14024D14024-1580-187 COVER, RADIATOR, LEFT HAND, B.YELLOW (FOR 187)COVER, RADIATOR, LEFT HAND, B.YELLOW (FOR 187)
-
14024E14024-1580-620 COVER, RADIATOR, LEFT HAND, C.T.BLUE (FOR 620)COVER, RADIATOR, LEFT HAND, C.T.BLUE (FOR 620)
-
14024F14024-1581-G2 COVER, RADIATOR, RIGHT HAND, C.P.RED (FOR G2)COVER, RADIATOR, RIGHT HAND, C.P.RED (FOR G2)
-
14024G14024-1581-IG COVER, RADIATOR, RIGHT HAND, EBONY (FOR IG)COVER, RADIATOR, RIGHT HAND, EBONY (FOR IG)
-
14024J14024-1581-187 COVER, RADIATOR, RIGHT HAND, B.YELLOW (FOR 187)COVER, RADIATOR, RIGHT HAND, B.YELLOW (FOR 187)
-
14024K14024-1581-620 COVER, RADIATOR, RIGHT HAND, C.T.BLUE (FOR 620)COVER, RADIATOR, RIGHT HAND, C.T.BLUE (FOR 620)
-
3915439154-1083 WINDSHIELDWINDSHIELD
-
120120S0840 BOLT-SOCKET, 8X40BOLT-SOCKET, 8X40
-
130130J0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
55052F55052-5279-187 COWLING-ASSY, UPP, B.YELLOW (FOR 187)COWLING-ASSY, UPP, B.YELLOW (FOR 187)
-
55052G55052-5281-620 COWLING-ASSY, UPP, C.T.BLUE (FOR 620)COWLING-ASSY, UPP, C.T.BLUE (FOR 620)
-
55052H55052-5283-G2 COWLING-ASSY, UPP, C.P.RED (FOR G2)COWLING-ASSY, UPP, C.P.RED (FOR G2)
-
55052I55052-5285-IG COWLING-ASSY, UPP, EBONY (FOR IG)COWLING-ASSY, UPP, EBONY (FOR IG)
-
5600156001-1337 MIREAROR-ASSY, LEFT HANDMIREAROR-ASSY, LEFT HAND
-
56001A56001-1338 MIREAROR-ASSY, RIGHT HANDMIREAROR-ASSY, RIGHT HAND
-
9200992009-1652 SCREW, 5X12SCREW, 5X12
-
9201592015-1174 NUT, CAP, 8MM, BLACKNUT, CAP, 8MM, BLACK
-
92015A92015-1343 NUT, 5MM, COWLINGNUT, 5MM, COWLING
-
92015B92015-1602 NUT, 6MMNUT, 6MM
-
9202292022-1521 WASHER, NYLON, 5.3X11.5X1.5WASHER, NYLON, 5.3X11.5X1.5
-
9206692066-1312 PLUGPLUG
-
9207592075-1067 DAMPERDAMPER
-
92075A92075-1634 DAMPERDAMPER
-
9214392143-1226 COLLAR, BLACKCOLLAR, BLACK
-
9215092150-1553 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
9216092160-1060 DAMPER, MIREAROR, LEFT HANDDAMPER, MIREAROR, LEFT HAND
-
92160A92160-1061 DAMPER, MIREAROR, RIGHT HANDDAMPER, MIREAROR, RIGHT HAND
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
