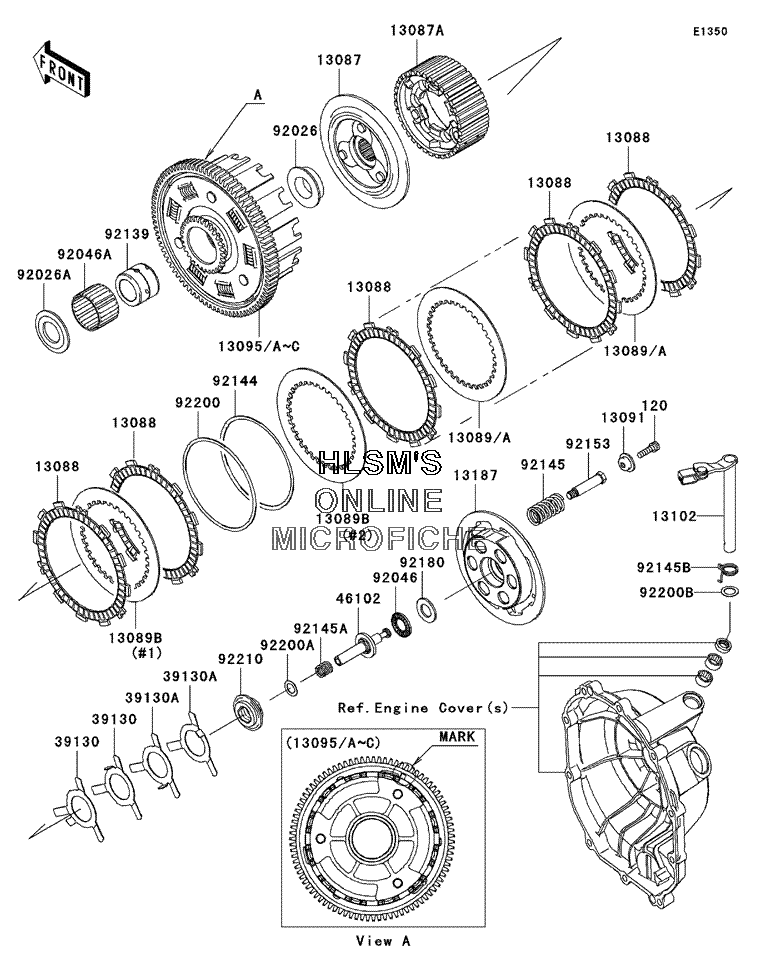

CLUTCH для Kawasaki NINJA ZX-6R - 2006 года выпуска
-
№АртикулНазвание
-
120120Q0620 BOLT-SOCKET, 6X20BOLT-SOCKET, 6X20
-
1308713087-0019 HUB-CLUTCHHUB-CLUTCH
-
13087A13087-0020 HUB-CLUTCHHUB-CLUTCH
-
1308813088-1124 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-0007 PLATE-CLUTCH, T=2.0PLATE-CLUTCH, T=2.0
-
13089A13089-0008 PLATE-CLUTCH, T=2.3PLATE-CLUTCH, T=2.3
-
13089B13089-0009 PLATE-CLUTCH, T=2.6PLATE-CLUTCH, T=2.6
-
1309113091-1041 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
1309513095-0042 HOUSING-COMP-CLUTCH, NO MARKHOUSING-COMP-CLUTCH, NO MARK
-
13095A13095-0044 HOUSING-COMP-CLUTCH, "A" MARKHOUSING-COMP-CLUTCH, "A" MARK
-
13095B13095-0045 HOUSING-COMP-CLUTCH, "B" MARKHOUSING-COMP-CLUTCH, "B" MARK
-
13095C13095-0046 HOUSING-COMP-CLUTCH, "C" MARKHOUSING-COMP-CLUTCH, "C" MARK
-
1310213102-0015 RELEASE-COMP-CLUTCHRELEASE-COMP-CLUTCH
-
1318713187-0008 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
3913039130-1078 SPRING-LEAFSPRING-LEAF
-
39130A39130-1079 SPRING-LEAFSPRING-LEAF
-
4610246102-0051 RODROD
-
9202692026-0022 SPACERSPACER
-
92026A92026-1356 SPACERSPACER
-
9204692046-1052 BEARING-NEEDLE, AXK1102BEARING-NEEDLE, AXK1102
-
92046A92046-1263 BEARING-NEEDLE, K38X43X28.8XBEARING-NEEDLE, K38X43X28.8X
-
9213992139-0067 BUSHING, 25X38X29.05BUSHING, 25X38X29.05
-
9214492144-1854 SPRING, FRICTION PLATESPRING, FRICTION PLATE
-
9214592145-0293 SPRINGSPRING
-
92145A92145-1159 SPRING, RODSPRING, ROD
-
92145B92145-1339 SPRINGSPRING
-
9215392153-0797 BOLTBOLT
-
9218092180-0149 SHIM, 15.3X27.5X2.0SHIM, 15.3X27.5X2.0
-
9220092200-1260 WASHER, FRICTION PLATEWASHER, FRICTION PLATE
-
92200A92200-1423 WASHER, 11.2X18X0.5WASHER, 11.2X18X0.5
-
92200B92200-1487 WASHER, 12X18.5X0.5WASHER, 12X18.5X0.5
-
9221092210-0152 NUTNUT
