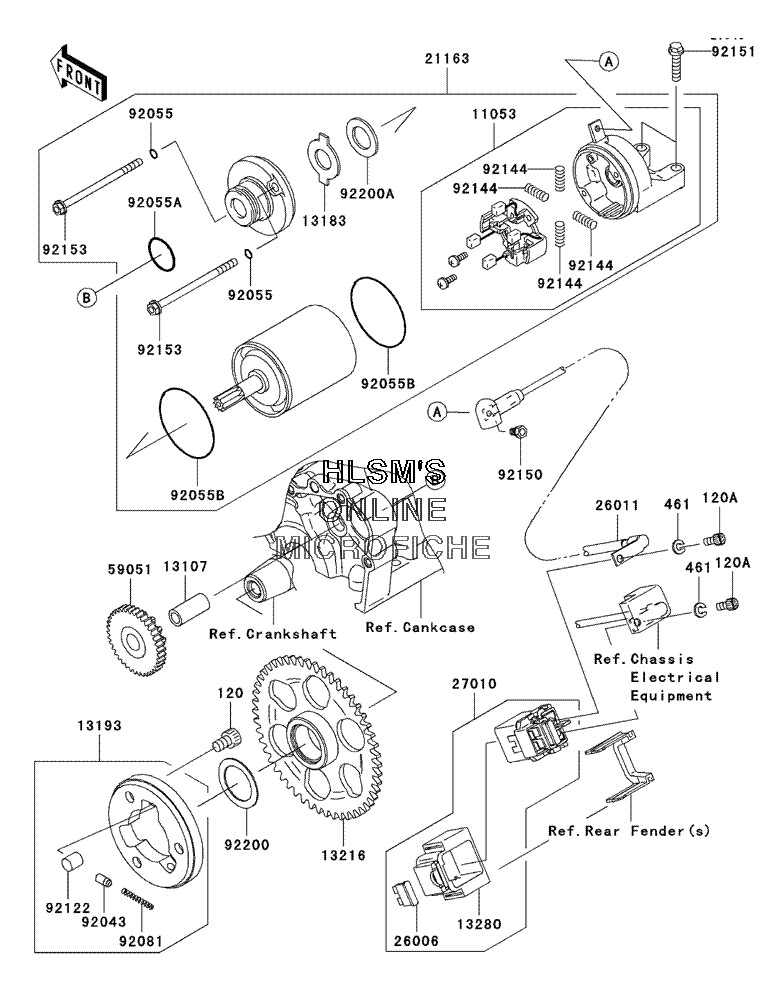

STARTER MOTOR для Kawasaki NINJA ZX-6RR - 2006 года выпуска
-
№АртикулНазвание
-
120120P0812 BOLT-SOCKET, 8X12BOLT-SOCKET, 8X12
-
120A120S0510 BOLT-SOCKET, 5X10BOLT-SOCKET, 5X10
-
461461K0500 WASHER-SPRING, 5MM (BLACK)WASHER-SPRING, 5MM (BLACK)
-
1105311053-0224 BRACKET, STARTERBRACKET, STARTER
-
1310713107-1176 SHAFT, 7.8X12X26.5SHAFT, 7.8X12X26.5
-
1318313183-1460 PLATEPLATE
-
1319313193-0001 CLUTCH-ASSY-ONEWAYCLUTCH-ASSY-ONEWAY
-
1321613216-0011 GEAR-COMP, ONEWAY CLUTCHGEAR-COMP, ONEWAY CLUTCH
-
1328013280-0109 HOLDER, SWITCHHOLDER, SWITCH
-
2116321163-0006 STARTER-ELECTRICSTARTER-ELECTRIC
-
2600626006-1006 FUSE, 30A-GFUSE, 30A-G
-
2601126011-0065 WIRE-LEADWIRE-LEAD
-
2701027010-0030 SWITCH, MAGNETICSWITCH, MAGNETIC
-
5905159051-1413 GEAR-SPUR, IDLEGEAR-SPUR, IDLE
-
9204392043-132 PINPIN
-
9205592055-0013 RING-O, STARTERRING-O, STARTER
-
92055A92055-1262 RING-O, 24.4X3.1RING-O, 24.4X3.1
-
92055B92055-1455 RING-ORING-O
-
9208192081-159 SPRING, COILSPRING, COIL
-
9212292122-006 ROLLERROLLER
-
9214492144-1423 SPRING, BRUSHSPRING, BRUSH
-
9215092150-1305 BOLTBOLT
-
9215192151-1930 BOLT, FLANGED-SMALL, 6X25BOLT, FLANGED-SMALL, 6X25
-
9215392153-0405 BOLTBOLT
-
9220092200-0168 WASHER, 28.5X40.0X1.0WASHER, 28.5X40.0X1.0
-
92200A92200-1019 WASHERWASHER
