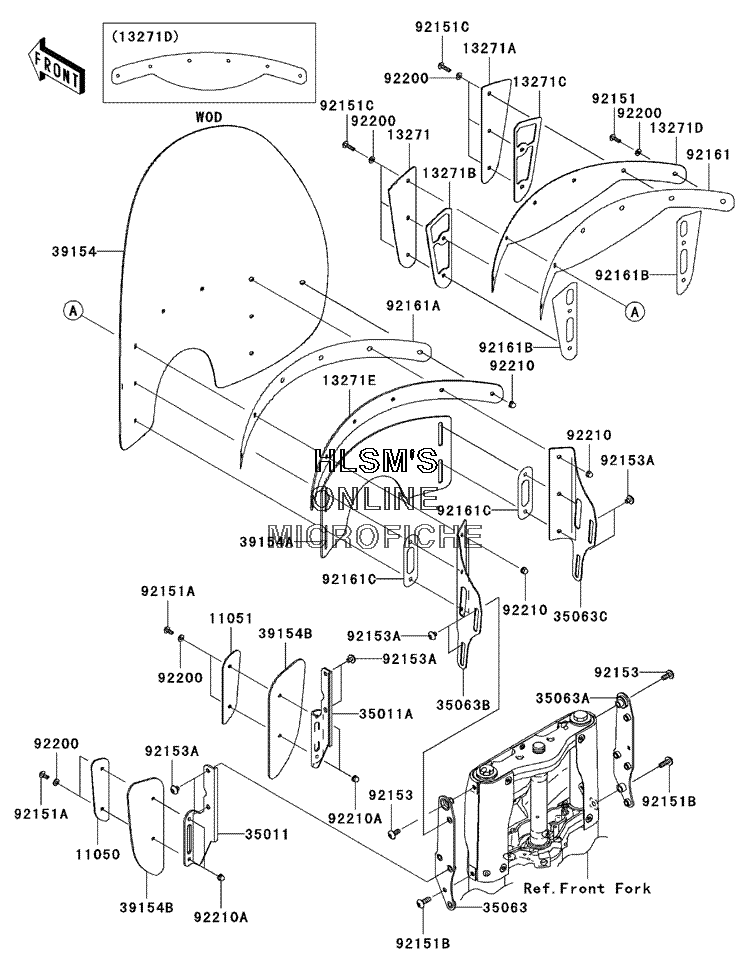

COWLING для Kawasaki Vulcan 1600 Nomad - 2006 года выпуска
-
№АртикулНазвание
-
1105011050-1750 BRACKET, DEFLECTOR (LEFT)BRACKET, DEFLECTOR (LEFT)
-
1105111051-1061 BRACKET, DEFLECTOR (RIGHT)BRACKET, DEFLECTOR (RIGHT)
-
1327113271-0570 PLATE, WINDSHIELD (LEFT/OUTER)PLATE, WINDSHIELD (LEFT/OUTER)
-
13271A13271-0571 PLATE, WINDSHIELD (RIGHT/OUTER)PLATE, WINDSHIELD (RIGHT/OUTER)
-
13271B13271-0572 PLATE, WINDSHIELD (LEFT/INNER)PLATE, WINDSHIELD (LEFT/INNER)
-
13271C13271-0573 PLATE, WINDSHIELD (RIGHT/INNER)PLATE, WINDSHIELD (RIGHT/INNER)
-
13271D13271-1089 PLATE, WINDSHIELD, CENTER, OUTERPLATE, WINDSHIELD, CENTER, OUTER
-
13271E13271-1090 PLATE, WINDSHIELD, CENTER, INNERPLATE, WINDSHIELD, CENTER, INNER
-
3501135011-1916 STAY, DEFLECTOR (LEFT)STAY, DEFLECTOR (LEFT)
-
35011A35011-1917 STAY, DEFLECTOR (RIGHT)STAY, DEFLECTOR (RIGHT)
-
3506335063-0209 STAY, MAIN (LEFT)STAY, MAIN (LEFT)
-
35063A35063-0210 STAY, MAIN (RIGHT)STAY, MAIN (RIGHT)
-
35063B35063-0213 STAY, WINDSHIELD (LEFT)STAY, WINDSHIELD (LEFT)
-
35063C35063-0214 STAY, WINDSHIELD (RIGHT)STAY, WINDSHIELD (RIGHT)
-
3915439154-0012 WINDSHIELD, MAINWINDSHIELD, MAIN
-
39154A39154-0013 WINDSHIELD, SUBWINDSHIELD, SUB
-
39154B39154-1139 WINDSHIELD, DEFLECTORWINDSHIELD, DEFLECTOR
-
9215192151-1750 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92151A92151-1751 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
92151B92151-1753 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
92151C92151-1945 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
9215392153-0912 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
92153A92153-1278 BOLT, SOCKET, 8X10BOLT, SOCKET, 8X10
-
9216192161-0268 DAMPER, WINDSHIELD, OUTER, CENTERDAMPER, WINDSHIELD, OUTER, CENTER
-
92161A92161-0269 DAMPER, WINDSHIELD, INNER, CENTERDAMPER, WINDSHIELD, INNER, CENTER
-
92161B92161-0270 DAMPER, WINDSHIELD, OUTER (LEFT/RIGHT)DAMPER, WINDSHIELD, OUTER (LEFT/RIGHT)
-
92161C92161-0271 DAMPER, WINDSHIELD, INNER (LEFT/RIGHT)DAMPER, WINDSHIELD, INNER (LEFT/RIGHT)
-
9220092200-3775 WASHER, 6.5X14.5X1.5WASHER, 6.5X14.5X1.5
-
9221092210-0220 NUT, CAP, 6MMNUT, CAP, 6MM
-
92210A92210-1129 NUT, CAP, 6MMNUT, CAP, 6MM
