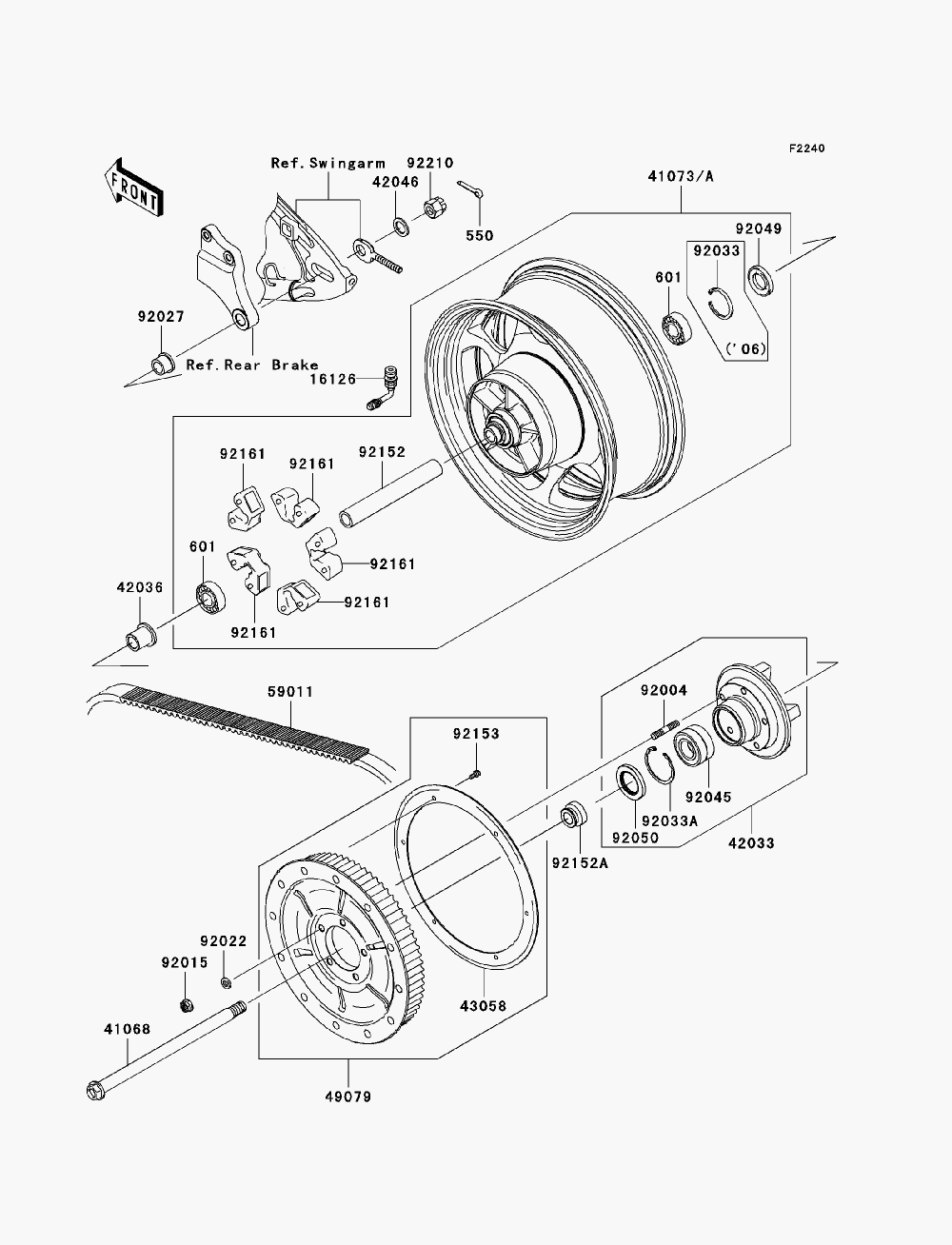

WHEEL - REAR W/ CHAIN для Kawasaki Vulcan 2000 - 2006 года выпуска
-
№АртикулНазвание
-
550550D4035 PIN-COTTER, 4.0X35PIN-COTTER, 4.0X35
-
601601B6304UU BEARING-BALL, #6304UUC3BEARING-BALL, #6304UUC3
-
1612616126-1365 VALVEVALVE
-
4106841068-0007 AXLE, REARAXLE, REAR
-
4107341073-0005 WHEEL-ASSY, REARWHEEL-ASSY, REAR
-
4203342033-0020 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-0027 SLEEVE, REAR HUB COUPLING, L=39SLEEVE, REAR HUB COUPLING, L=39
-
4204642046-003 WASHER, 21X33X2.6WASHER, 21X33X2.6
-
4305843058-0004 RING, REAR PULLEYRING, REAR PULLEY
-
4907949079-0004-458 PULLEY-BELT, P.SILVERPULLEY-BELT, P.SILVER
-
5901159011-0004 BELT, DRIVE, 133TBELT, DRIVE, 133T
-
9200492004-0016 STUD, 10X35STUD, 10X35
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202292022-1820 WASHER, 10.5X19X3.2WASHER, 10.5X19X3.2
-
9202792027-1902 COLLAR, REAR AXLE, L=21.5COLLAR, REAR AXLE, L=21.5
-
9203392033-1043 RING-SNAP, 52MMRING-SNAP, 52MM
-
92033A92033-1044 RING-SNAP, 62MMRING-SNAP, 62MM
-
9204592045-0045 BEARING-BALL, 6206LUD2C3/2ASBEARING-BALL, 6206LUD2C3/2AS
-
9204992049-1061 SEAL-OIL, 28X52X5SEAL-OIL, 28X52X5
-
9205092050-027 SEAL-OIL, AJN40627SEAL-OIL, AJN40627
-
9215292152-0051 COLLAR, REAR HUB, L=210COLLAR, REAR HUB, L=210
-
92152A92152-0321 COLLAR, REAR AXLE, LEFT HAND, L=24COLLAR, REAR AXLE, LEFT HAND, L=24
-
9215392153-0827 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9216192161-0043 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9221092210-1134 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
