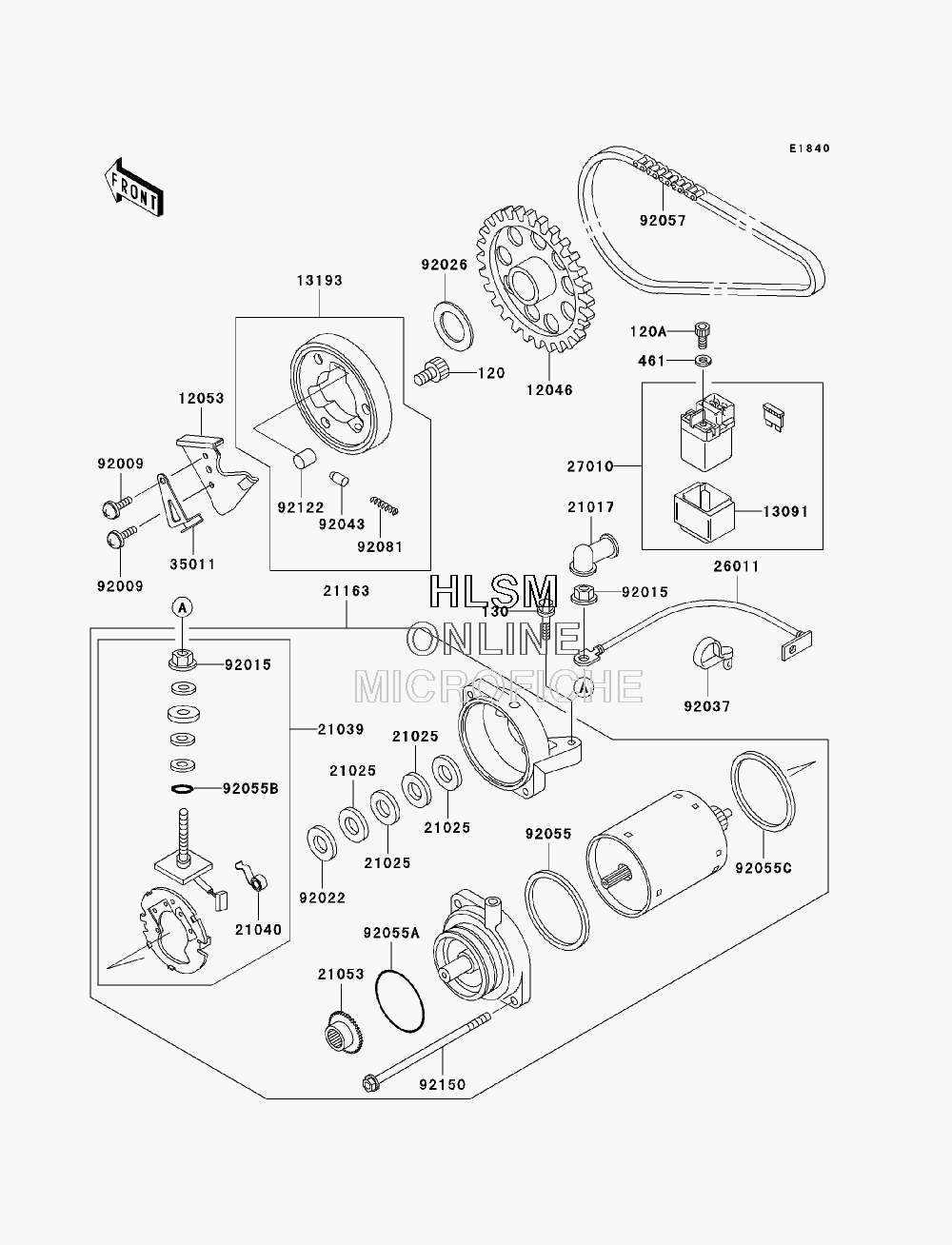

STARTER MOTOR для Kawasaki Vulcan 500 LTD - 2006 года выпуска
-
№АртикулНазвание
-
120120CA0816 BOLT-SOCKET, 8X16BOLT-SOCKET, 8X16
-
120A120CB0510 BOLT-SOCKET, 5X10BOLT-SOCKET, 5X10
-
130130BD0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
461461DB0500 WASHER-SPRING, 5MM, BLACKWASHER-SPRING, 5MM, BLACK
-
1204612046-1072 SPROCKET, ONEWAY CLUTCH, 46TSPROCKET, ONEWAY CLUTCH, 46T
-
1205312053-1214 GUIDE-CHAINGUIDE-CHAIN
-
1309113091-1883 HOLDER, SWITCHHOLDER, SWITCH
-
1319313193-1060 CLUTCH-ASSY-ONEWAYCLUTCH-ASSY-ONEWAY
-
2101721017-017 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
2102521025-011 WASHER, 9.1X18X0.2WASHER, 9.1X18X0.2
-
2103921039-1062 BRUSH, CARBONBRUSH, CARBON
-
2104021040-1057 SPRING-BRUSHSPRING-BRUSH
-
2105321053-1057 SPROCKET-ASSYSPROCKET-ASSY
-
2116321163-1274 STARTER-ELECTRICSTARTER-ELECTRIC
-
2601126011-1636 WIRE-LEAD, STARTER MOTORWIRE-LEAD, STARTER MOTOR
-
2701027010-1347 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3501135011-1792 STAY, CHAIN GUIDESTAY, CHAIN GUIDE
-
9200992009-1765 SCREWSCREW
-
9201592015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202292022-1132 WASHER, 9.1X18X0.8WASHER, 9.1X18X0.8
-
9202692026-1285 SPACER, 25.2X40X1.0SPACER, 25.2X40X1.0
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
9204392043-087 PINPIN
-
9205592055-1086 RING-O, 64MMRING-O, 64MM
-
92055A92055-1313 RING-O, 42.8MMRING-O, 42.8MM
-
92055B92055-1370 RING-O, 4.5X2.0RING-O, 4.5X2.0
-
92055C92055-1381 RING-O, STARTER MOTORRING-O, STARTER MOTOR
-
9205792057-1197 CHAIN, STARTER, BF05MX64LCHAIN, STARTER, BF05MX64L
-
9208192081-110 SPRINGSPRING
-
9212292122-004 ROLLER, 15X13ROLLER, 15X13
-
9215092150-1138 BOLT, STARTER MOTORBOLT, STARTER MOTOR
