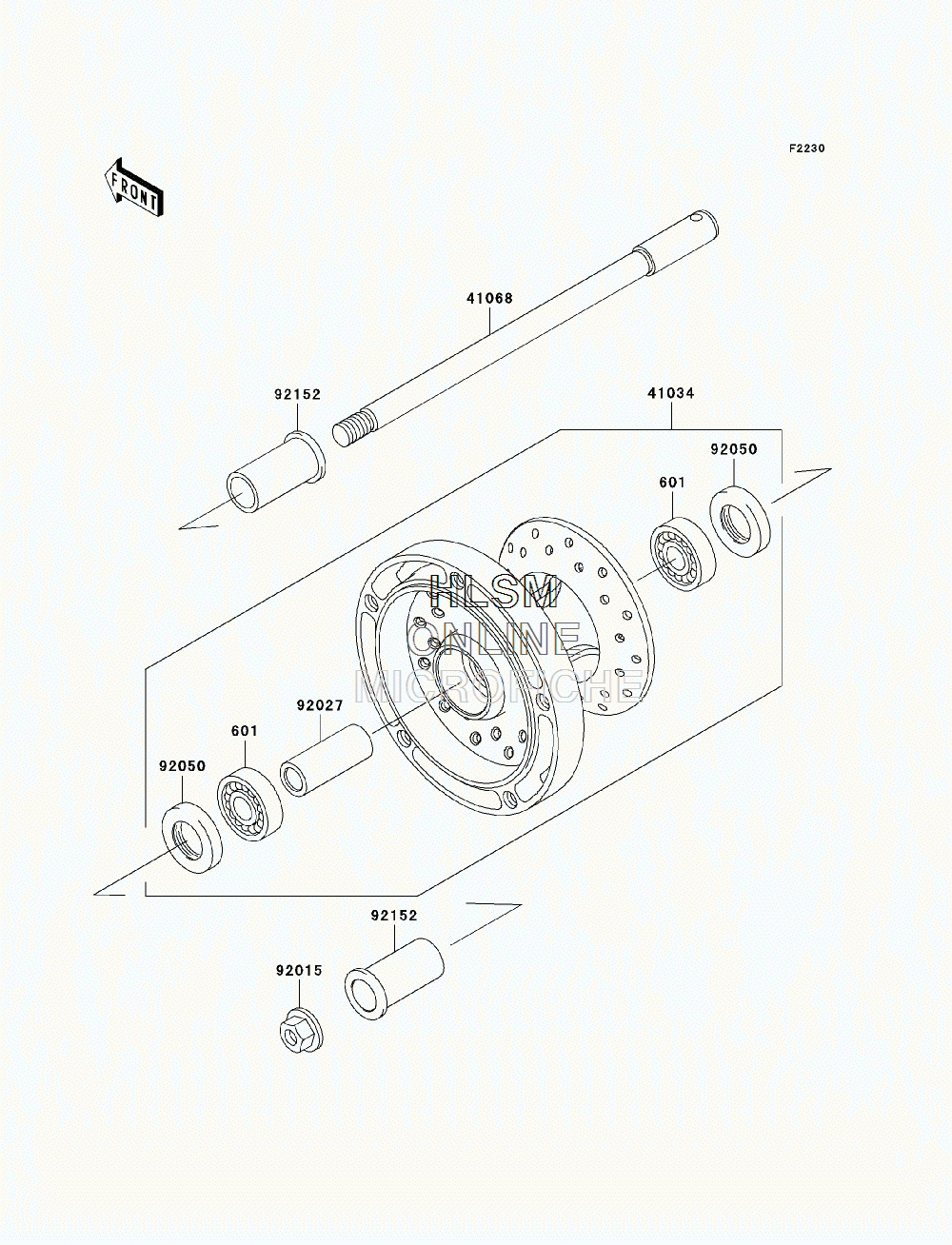

WHEEL - FRONT для Kawasaki Vulcan 900 Classic - 2006 года выпуска
-
№АртикулНазвание
-
601601B6004UG BEARING-BALL,#6004UGBEARING-BALL,#6004UG
-
4103441034-0029 DRUM-ASSY, FRONT BRAKEDRUM-ASSY, FRONT BRAKE
-
4106841068-0058 AXLE, FRONTAXLE, FRONT
-
9201592015-1993 NUT,FLANGED,18MMNUT,FLANGED,18MM
-
9202792027-1752 COLLAR,20.2X28X70COLLAR,20.2X28X70
-
9205092050-060 SEAL-OIL, REAR HUB COUPLINGSEAL-OIL, REAR HUB COUPLING
-
9215292152-0349 COLLAR, FRONT AXLE,L=53COLLAR, FRONT AXLE,L=53
