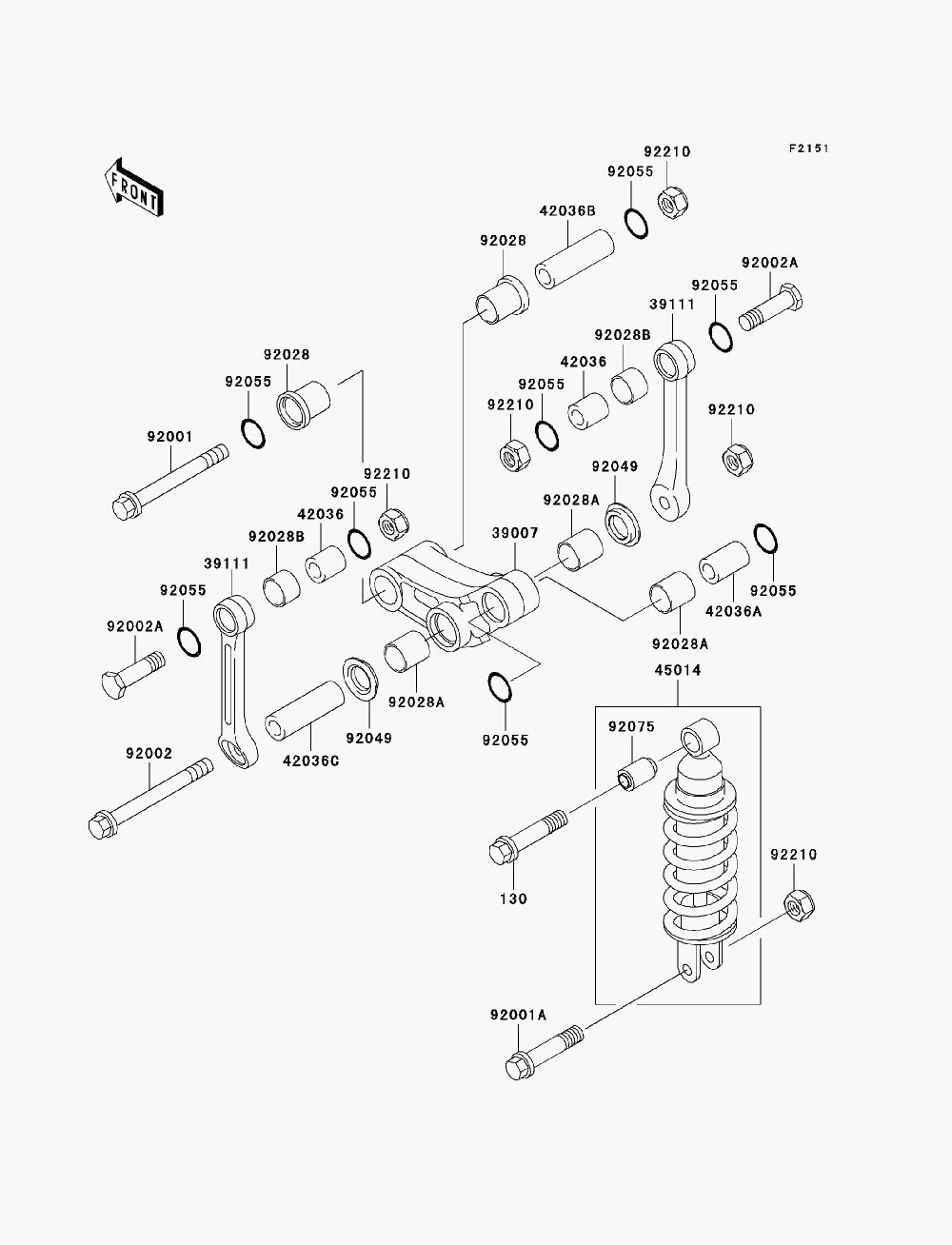

SUSPENSION - REAR W/ SHOCK ABSORBER для Kawasaki NINJA 250R (EX250F7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130G1255 BOLT-FLANGED, 12X55BOLT-FLANGED, 12X55
-
3900739007-1093 ARM-SUSP, UNI TRAKARM-SUSP, UNI TRAK
-
3911139111-1021 ROD-TIE, UNI TRAKROD-TIE, UNI TRAK
-
4203642036-1076 SLEEVE, 12.1X20X22SLEEVE, 12.1X20X22
-
42036A42036-1077 SLEEVE, 12.1X20X32SLEEVE, 12.1X20X32
-
42036B42036-1078 SLEEVE, ARM, FRONTSLEEVE, ARM, FRONT
-
42036C42036-1079 SLEEVE, 12.1X20X70SLEEVE, 12.1X20X70
-
4501445014-1406 SHOCK ABSORBERSHOCK ABSORBER
-
9200192001-1937 BOLT, 12X90BOLT, 12X90
-
92001A92001-1938 BOLT, 12X55BOLT, 12X55
-
9200292002-1064 BOLT, 12X110BOLT, 12X110
-
92002A92002-1065 BOLT, 12X45BOLT, 12X45
-
9202892028-1597 BUSHINGBUSHING
-
92028A92028-1598 BUSHINGBUSHING
-
92028B92028-1599 BUSHINGBUSHING
-
9204992049-1109 SEAL-OIL, ARMSEAL-OIL, ARM
-
9205592055-1215 RING-O, 19.8X2.2RING-O, 19.8X2.2
-
9207592075-1497 DAMPER, SHOCK ABSORBERDAMPER, SHOCK ABSORBER
-
9221092210-1247 NUT, LOCK, 12MMNUT, LOCK, 12MM
