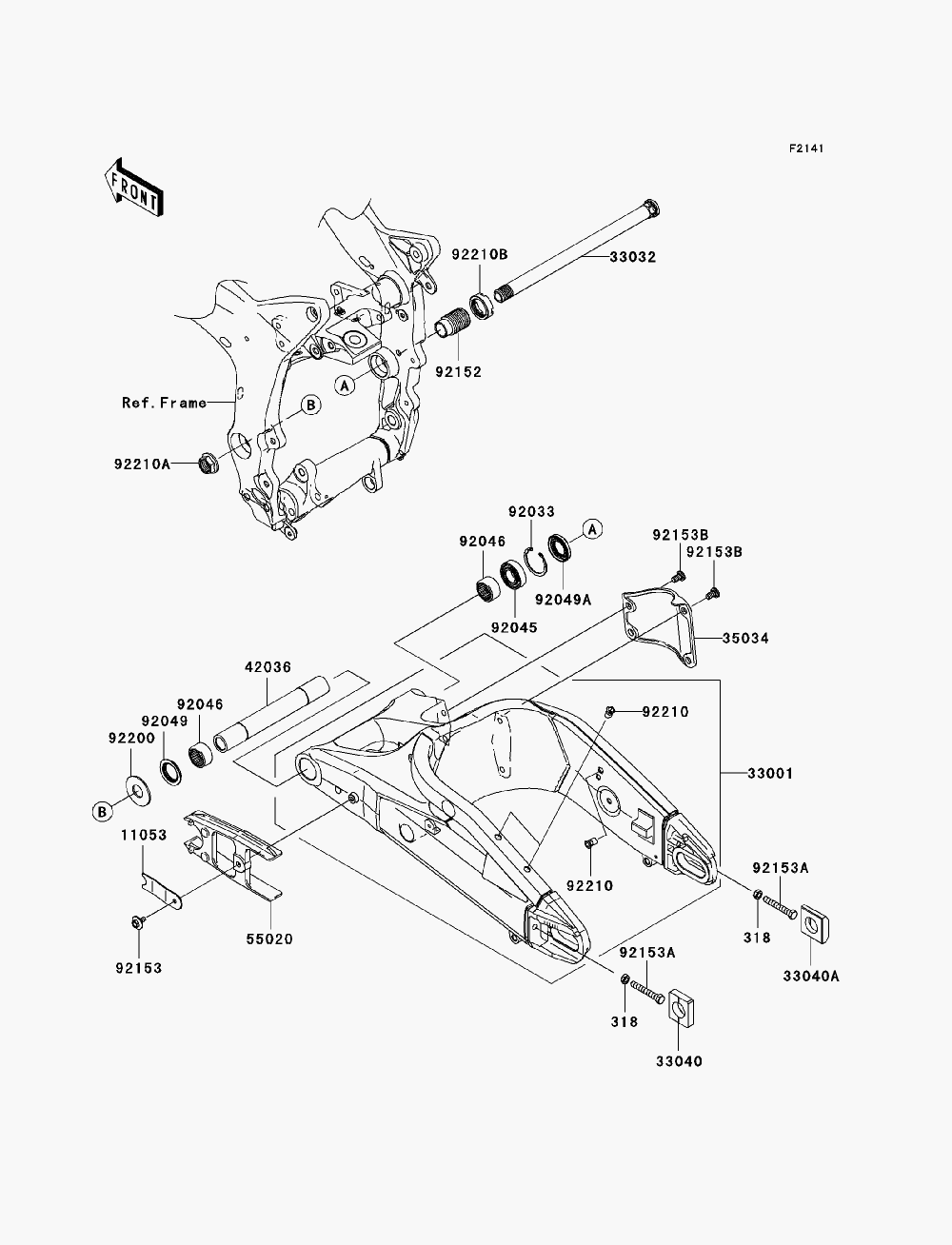

SUSPENSION - SWINGARM для Kawasaki NINJA ZX-6R (ZX600P7F) - 2007 года выпуска
-
№АртикулНазвание
-
318318G0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
1105311053-1691 BRACKET, CHAIN GUARDBRACKET, CHAIN GUARD
-
3300133001-0126-18R ARM-COMP-SWING, BLACKARM-COMP-SWING, BLACK
-
3303233032-0010 SHAFT-SWING ARMSHAFT-SWING ARM
-
3304033040-1114 ADJUSTER-CHAINADJUSTER-CHAIN
-
33040A33040-1180 ADJUSTER-CHAIN, RIGHT HANDADJUSTER-CHAIN, RIGHT HAND
-
3503435034-0053-18R REINFORCE, MUFFLER GUARD, BLACKREINFORCE, MUFFLER GUARD, BLACK
-
4203642036-1283 SLEEVE, SWING ARM, L=213SLEEVE, SWING ARM, L=213
-
5502055020-0111 GUARD, CHAINGUARD, CHAIN
-
9203392033-1041 RING-SNAP, 42MMRING-SNAP, 42MM
-
9204592045-0017 BEARING-BALL, 6004UL11BEARING-BALL, 6004UL11
-
9204692046-0008 BEARING-NEEDLE, 7E-HVS 28X34X17BEARING-NEEDLE, 7E-HVS 28X34X17
-
9204992049-1181 SEAL-OILSEAL-OIL
-
92049A92049-1314 SEAL-OIL, MHSA25 42 6SEAL-OIL, MHSA25 42 6
-
9215292152-0154 COLLAR, SWING ARM, L=47COLLAR, SWING ARM, L=47
-
9215392153-1003 BOLT, 6X16BOLT, 6X16
-
92153A92153-1407 BOLT, 8X55BOLT, 8X55
-
92153B92153-1548 BOLT, SOCKET, 8X15BOLT, SOCKET, 8X15
-
9220092200-1167 WASHER, 20.3X48X2.3WASHER, 20.3X48X2.3
-
9221092210-0099 NUT, 6MMNUT, 6MM
-
92210A92210-0106 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
-
92210B92210-0134 NUT, 30MMNUT, 30MM
