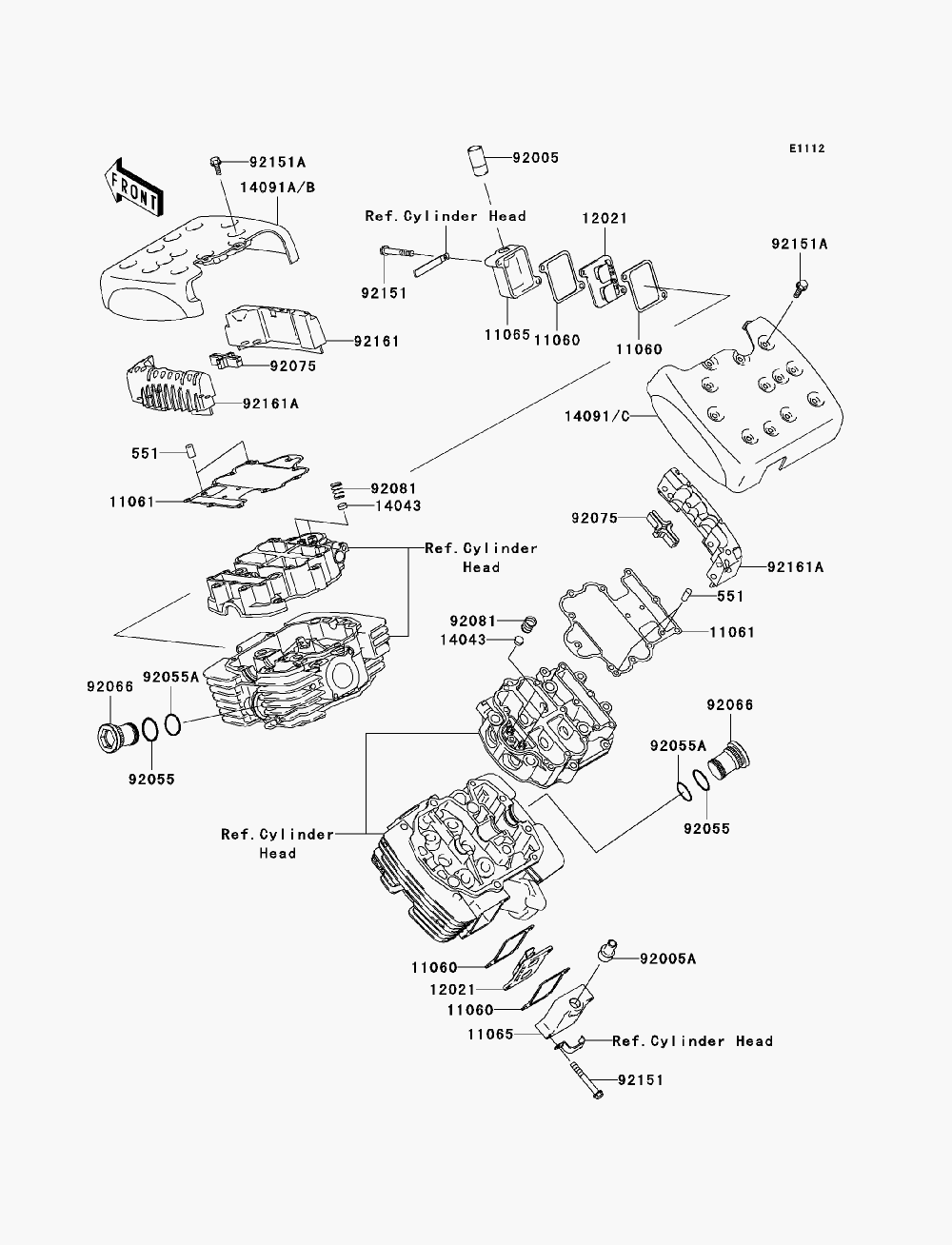

CYLINDER HEAD COVER для Kawasaki VULCAN 1600 MEAN STREAK (VN1600B7F) - 2007 года выпуска
-
№АртикулНазвание
-
551551A0612 PIN-DOWEL, 6X12PIN-DOWEL, 6X12
-
1106011060-1733 GASKET, REED VALVE CAPGASKET, REED VALVE CAP
-
1106111061-1175 GASKET, ROCKER CASE COVERGASKET, ROCKER CASE COVER
-
1106511065-0031 CAP, REED VALVECAP, REED VALVE
-
1202112021-1108 VALVE-ASSY-REEDVALVE-ASSY-REED
-
1404314043-1056 FILTER, OILFILTER, OIL
-
1409114091-0005 COVER, ROCKER CASE, REAR (USA ONLY)COVER, ROCKER CASE, REAR (USA ONLY)
-
14091A14091-0093 COVER, ROCKER CASE, FRONT (USA ONLY)COVER, ROCKER CASE, FRONT (USA ONLY)
-
14091B14091-0667 COVER, ROCKER CASE, FRONT (CANADA ONLY)COVER, ROCKER CASE, FRONT (CANADA ONLY)
-
14091C14091-0668 COVER, ROCKER CASE, REAR (CANADA ONLY)COVER, ROCKER CASE, REAR (CANADA ONLY)
-
9200592005-1006 FITTING, REED VALVEFITTING, REED VALVE
-
92005A92005-1363 FITTINGFITTING
-
9205592055-049 RING-O, 31.7X2.4RING-O, 31.7X2.4
-
92055A92055-1272 RING-O, 27.7X1.9RING-O, 27.7X1.9
-
9206692066-1445 PLUG, SLEEVEPLUG, SLEEVE
-
9207592075-1998 DAMPERDAMPER
-
9208192081-1776 SPRING, OIL FILTERSPRING, OIL FILTER
-
9215192151-1059 BOLT, 6X45BOLT, 6X45
-
92151A92151-1252 BOLT, FLANGED-SMALL, 6X20BOLT, FLANGED-SMALL, 6X20
-
9216192161-0088 DAMPERDAMPER
-
92161A92161-0089 DAMPERDAMPER
