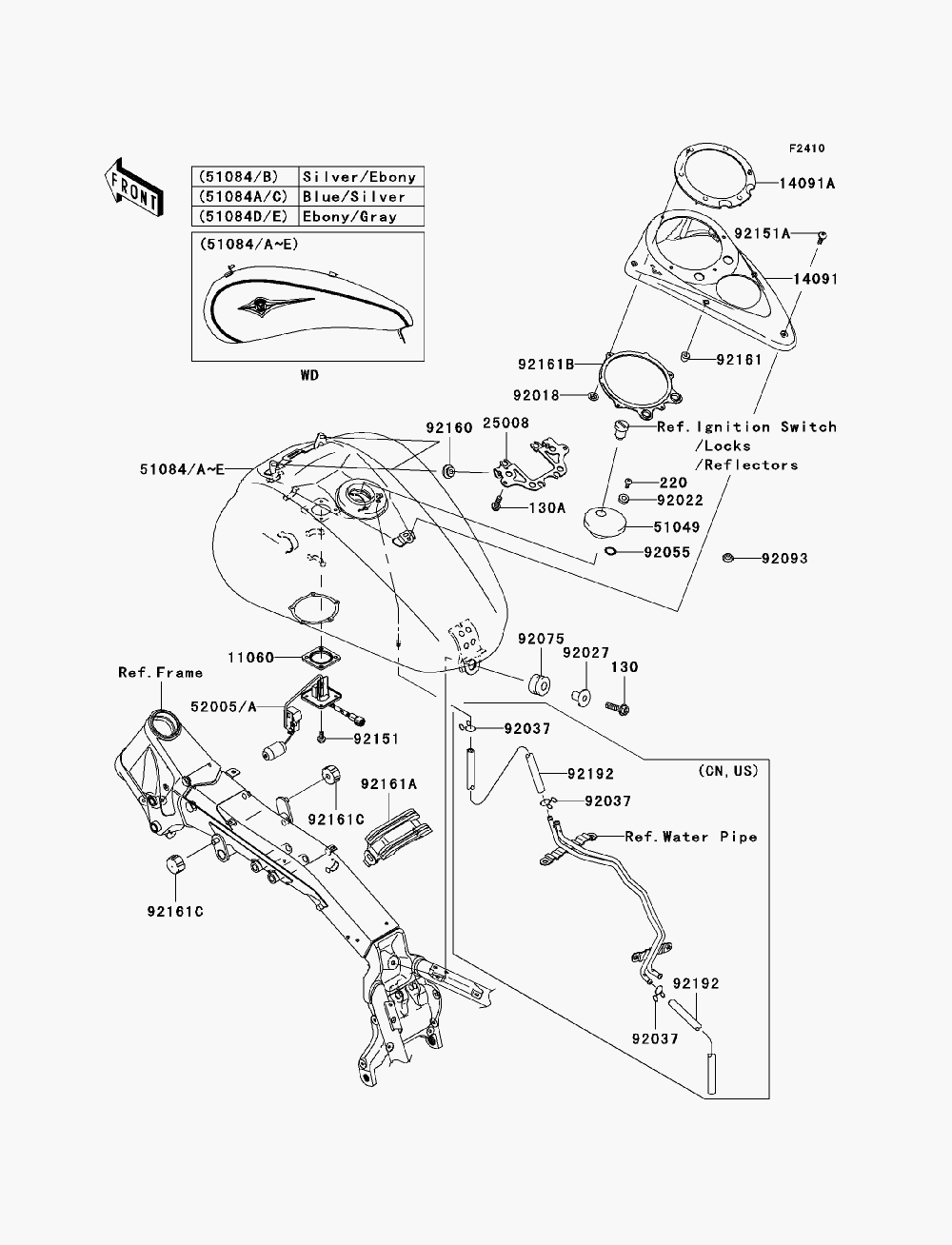

FUEL TANK для Kawasaki VULCAN 2000 (VN2000A7F) - 2007 года выпуска
-
№АртикулНазвание
-
1106011060-1952 GASKET,FUEL GAUGEGASKET,FUEL GAUGE
-
1409114091-0187 COVER,METER,LWRCOVER,METER,LWR
-
14091A14091-0284 COVER,METER,UPPCOVER,METER,UPP
-
2500825008-0001 BRACKET-METERBRACKET-METER
-
5104951049-0003 CAP-TANK,FUELCAP-TANK,FUEL
-
51084D51084-5310-17R TANK-COMP-FUEL,EBONY/GRAY (EXCEPT CALIF.)TANK-COMP-FUEL,EBONY/GRAY (EXCEPT CALIF.)
-
51084E51084-5311-17R TANK-COMP-FUEL,EBONY/GRAY (CALIF. ONLY)TANK-COMP-FUEL,EBONY/GRAY (CALIF. ONLY)
-
52005A52005-0022 GAUGE,FUELGAUGE,FUEL
-
130130H0830 BOLT-FLANGED,8X30BOLT-FLANGED,8X30
-
130A130L0614 BOLT-FLANGED,6X14BOLT-FLANGED,6X14
-
220220D0510 SCREW-PAN-CROS,5X10SCREW-PAN-CROS,5X10
-
9201892018-005 NUT,PUSH,3MMNUT,PUSH,3MM
-
9202292022-1977 WASHER,5.1X10X1.0WASHER,5.1X10X1.0
-
9202792027-1780 COLLAR,L=19.3COLLAR,L=19.3
-
9203792037-147 CLAMP,TUBE (EXCEPT CALIF.)CLAMP,TUBE (EXCEPT CALIF.)
-
9205592055-1552 RING-O,ID=9RING-O,ID=9
-
9207592075-1736 DAMPERDAMPER
-
9209392093-1030 SEAL,FUEL TANK CAPSEAL,FUEL TANK CAP
-
9215192151-1599 BOLT,5X12BOLT,5X12
-
92151A92151-1940 BOLT,SOCKET,6X12BOLT,SOCKET,6X12
-
9216092160-1613 DAMPERDAMPER
-
9216192161-0040 DAMPER,METER COVERDAMPER,METER COVER
-
92161A92161-0042 DAMPER,FUEL TANK,CNTDAMPER,FUEL TANK,CNT
-
92161B92161-0173 DAMPER,METERDAMPER,METER
-
92161C92161-0293 DAMPER,FUEL TANKDAMPER,FUEL TANK
-
9219292192-0037 TUBE,BLUE (EXCEPT CALIF.)TUBE,BLUE (EXCEPT CALIF.)
