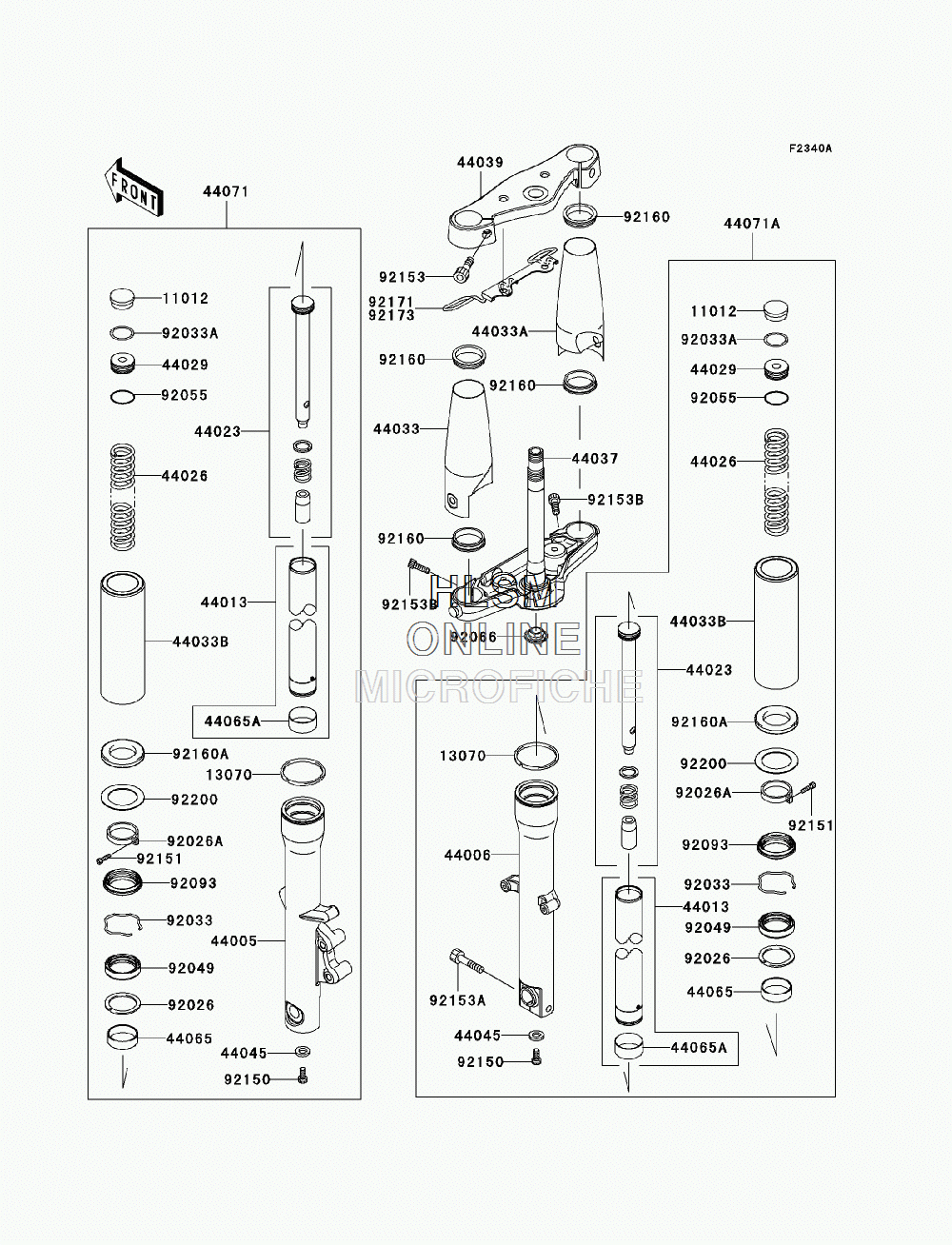

FRONT FORK (SERIAL JKAVN2B1 7A015509 AND ABOVE) для Kawasaki VULCAN 900 CLASSIC (VN900B7F) - 2007 года выпуска
-
№АртикулНазвание
-
1101211012-1618 CAP,FORK TOPCAP,FORK TOP
-
1307013070-0056 GUIDEGUIDE
-
4400544005-0043 PIPE-LEFT FORK OUTERPIPE-LEFT FORK OUTER
-
4400644006-0043 PIPE-RIGHT FORK OUTERPIPE-RIGHT FORK OUTER
-
4401344013-0049 PIPE-FORK INNERPIPE-FORK INNER
-
4402344023-0042 CYLINDER-SET-FORKCYLINDER-SET-FORK
-
4402644026-0074 SPRING-FRONT FORKSPRING-FRONT FORK
-
4402944029-0008 SEAT-FORK SPRINGSEAT-FORK SPRING
-
4403344033-0035 COVER-FORK, LEFT HANDCOVER-FORK, LEFT HAND
-
44033A44033-0037 COVER-FORK, RIGHT HANDCOVER-FORK, RIGHT HAND
-
44033B44033-0039 COVER-FORKCOVER-FORK
-
4403744037-0068 HOLDER-FORK UNDERHOLDER-FORK UNDER
-
4403944039-0062 HOLDER-FORK UPPERHOLDER-FORK UPPER
-
4404544045-051 GASKET,FORK CYLINDER BOLTGASKET,FORK CYLINDER BOLT
-
4406544065-0019 BUSHING-FRONT FORKBUSHING-FRONT FORK
-
44065A44065-1087 BUSHING-FRONT FORK,INNER PIPEBUSHING-FRONT FORK,INNER PIPE
-
4407144071-0316 DAMPER-ASSY,FORK, LEFT HANDDAMPER-ASSY,FORK, LEFT HAND
-
44071A44071-0317 DAMPER-ASSY,FORK, RIGHT HANDDAMPER-ASSY,FORK, RIGHT HAND
-
9202692026-0090 SPACER,FORKSPACER,FORK
-
92026A92026-1515 SPACERSPACER
-
9203392033-1222 RING-SNAPRING-SNAP
-
92033A92033-1223 RING-SNAP,SPRING SEATRING-SNAP,SPRING SEAT
-
9204992049-0058 SEAL-OILSEAL-OIL
-
9205592055-1363 RING-O,SPRING SEATRING-O,SPRING SEAT
-
9206692066-0078 PLUGPLUG
-
9209392093-0035 SEAL,DUSTSEAL,DUST
-
9215092150-1432 BOLT,SOCKET,8X18BOLT,SOCKET,8X18
-
9215192151-1356 BOLT,SOCKET,4X16BOLT,SOCKET,4X16
-
9215392153-0500 BOLT,SOCKET,8X30BOLT,SOCKET,8X30
-
92153A92153-0533 BOLTBOLT
-
92153B92153-1376 BOLT,SOCKET,10X25BOLT,SOCKET,10X25
-
9216092160-1892 DAMPERDAMPER
-
92160A92160-1927 DAMPERDAMPER
-
9217192171-0580 CLAMPCLAMP
-
9220092200-1417 WASHERWASHER
