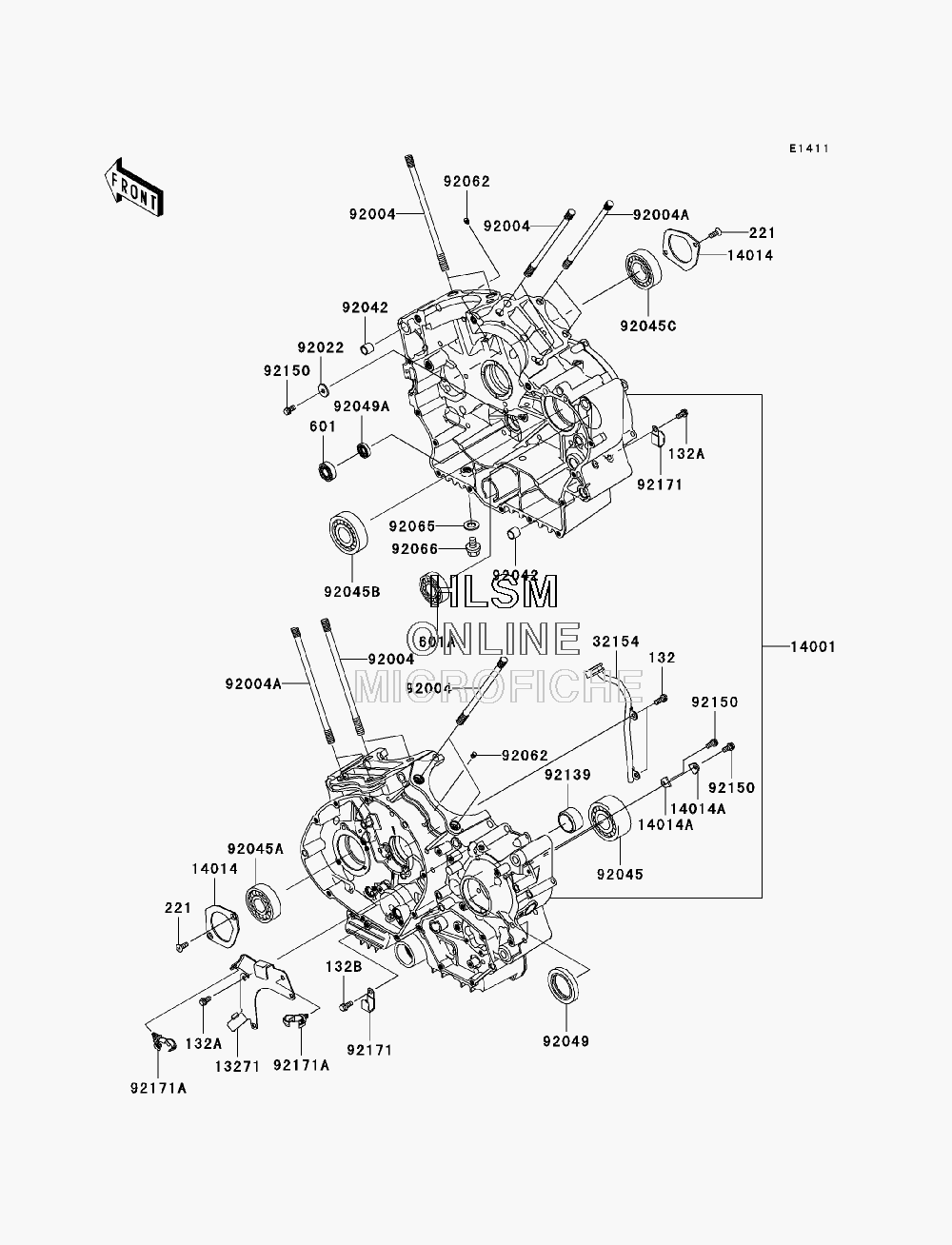

CRANKCASE для Kawasaki VULCAN 900 CUSTOM (VN900C7F) - 2007 года выпуска
-
№АртикулНазвание
-
132132BA0614 BOLT-FLANGED-SMALL, 6X14BOLT-FLANGED-SMALL, 6X14
-
132A132BB0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132B132BB0614 BOLT-FLANGED-SMALL, 6X14BOLT-FLANGED-SMALL, 6X14
-
221221AA0616 SCREW-CSK-CROSS, 6X16SCREW-CSK-CROSS, 6X16
-
601601A6001 BEARING-BALLBEARING-BALL
-
601A601A6204Z BEARING-BALLBEARING-BALL
-
1327113271-0841 PLATEPLATE
-
1400114001-0069 SET-CRANKCASESET-CRANKCASE
-
1401414014-0024 PLATE-POSITIONPLATE-POSITION
-
14014A14014-0026 PLATE-POSITIONPLATE-POSITION
-
3215432154-0752 PIPE, OILPIPE, OIL
-
9200492004-0026 STUD, 10X160STUD, 10X160
-
92004A92004-0027 STUD, 8X165.5STUD, 8X165.5
-
9202292022-1517 WASHER, 6X19.5X2WASHER, 6X19.5X2
-
9204292042-028 PIN, DOWEL, 11X14X12.5PIN, DOWEL, 11X14X12.5
-
9204592045-0059 BEARING-BALL, 5305-A-1BEARING-BALL, 5305-A-1
-
92045A92045-1017 BEARING-BALL, #63/22XBEARING-BALL, #63/22X
-
92045B92045-1137 BEARING-BALL, TMB305BEARING-BALL, TMB305
-
92045C92045-1207 BEARING-BALL, 62/28BEARING-BALL, 62/28
-
9204992049-0076 SEAL-OIL, TC 38 55 8SEAL-OIL, TC 38 55 8
-
92049A92049-1228 SEAL-OIL, SC 12X22X5SEAL-OIL, SC 12X22X5
-
9206292062-1079 NOZZLE, 6X8, BLACKNOZZLE, 6X8, BLACK
-
9206592065-097 GASKET, 12X22X2GASKET, 12X22X2
-
9206692066-1174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
9213992139-0139 BUSHINGBUSHING
-
9215092150-1841 BOLT, FLANGED-SMALL, 6X12BOLT, FLANGED-SMALL, 6X12
-
9217192171-0739 CLAMPCLAMP
-
92171A92171-1415 CLAMP, DIA=13CLAMP, DIA=13
