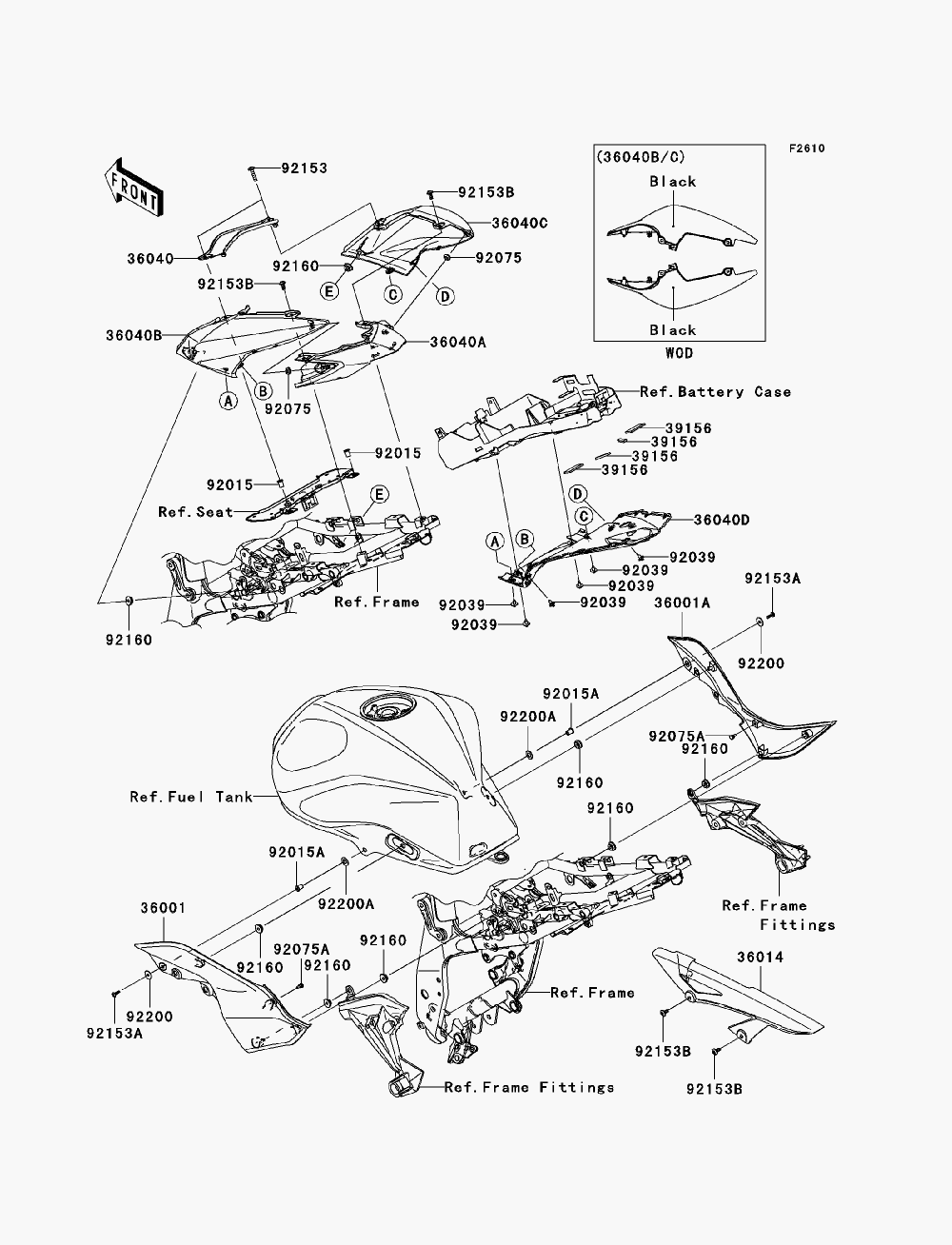

SIDE COVERS W/ CHAIN COVER для Kawasaki Z1000 (ZR1000B7F) - 2007 года выпуска
-
№АртикулНазвание
-
3600136001-0108-6Z COVER-SIDE, LEFT HAND, F.BLACKCOVER-SIDE, LEFT HAND, F.BLACK
-
36001A36001-0109-6Z COVER-SIDE, RIGHT HAND, F.BLACKCOVER-SIDE, RIGHT HAND, F.BLACK
-
3601436014-0029 CASE-CHAINCASE-CHAIN
-
3604036040-0043-17K COVER-TAIL, CNT, FRONT, M.BLACKCOVER-TAIL, CNT, FRONT, M.BLACK
-
36040C36040-0044-17K COVER-TAIL, CNT, REAR, M.BLACKCOVER-TAIL, CNT, REAR, M.BLACK
-
36040F36040-0071-17K COVER-TAIL, SIDE, LEFT HAND, M.BLACKCOVER-TAIL, SIDE, LEFT HAND, M.BLACK
-
36040I36040-0072-17K COVER-TAIL, SIDE, RIGHT HAND, M.BLACKCOVER-TAIL, SIDE, RIGHT HAND, M.BLACK
-
36040L36040-0077-17K COVER-TAIL, LWR, M.BLACKCOVER-TAIL, LWR, M.BLACK
-
3915639156-0286 PADPAD
-
9201592015-1700 NUTNUT
-
92015A92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203992039-1256 RIVETRIVET
-
9207592075-1011 DAMPERDAMPER
-
92075A92075-1808 DAMPERDAMPER
-
9215392153-0816 BOLT, 6X18BOLT, 6X18
-
92153A92153-1244 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
92153B92153-1612 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9216092160-1613 DAMPERDAMPER
-
9220092200-0284 WASHER, 5.5X20X1.2WASHER, 5.5X20X1.2
-
92200A92200-0414 WASHER, 10.3X20X1WASHER, 10.3X20X1
