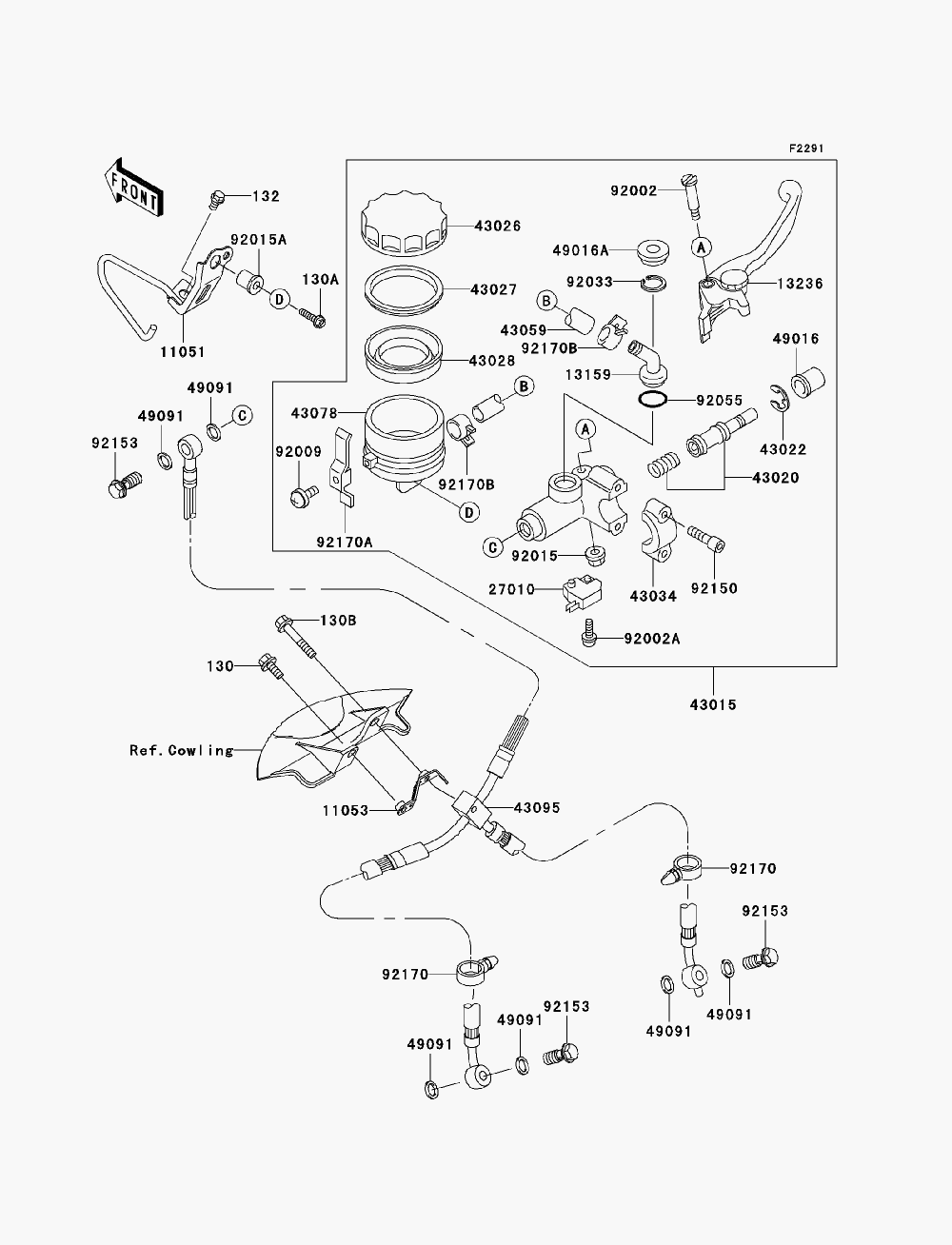

BRAKE - MASTER CYLINDER - FRONT для Kawasaki ZZR600 (ZX600J7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130L0520 BOLT-FLANGED, 5X20BOLT-FLANGED, 5X20
-
130B130L0635 BOLT-FLANGED, 6X35BOLT-FLANGED, 6X35
-
132132J0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
1105111051-1951 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1105311053-0068 BRACKET, BRAKE HOSEBRACKET, BRAKE HOSE
-
1315913159-1061 CONNECTORCONNECTOR
-
1323613236-1326 LEVER-COMP, FRONT BRAKELEVER-COMP, FRONT BRAKE
-
2701027010-0025 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-1633 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1054 PISTON-COMP-BRAKE, FRONTPISTON-COMP-BRAKE, FRONT
-
4302243022-1010 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
4302643026-1051 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1016 HOLDER-BRAKE, MASTER CYLINDERHOLDER-BRAKE, MASTER CYLINDER
-
4305943059-1696 HOSE-BRAKE, FRONT MASTER CYLINDERHOSE-BRAKE, FRONT MASTER CYLINDER
-
4307843078-1099 RESERVOIRRESERVOIR
-
4309543095-1376 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4901649016-1044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
49016A49016-1147 COVER-SEALCOVER-SEAL
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200292002-1322 BOLT, LEVER SET, BLACKBOLT, LEVER SET, BLACK
-
92002A92002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
9200992009-1570 SCREWSCREW
-
9201592015-1233 NUT, FLANGED, 6MM, BLACKNUT, FLANGED, 6MM, BLACK
-
92015A92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203392033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9205592055-1251 RING-O, MASTER CYLINDERRING-O, MASTER CYLINDER
-
9215092150-1328 BOLTBOLT
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217092170-1067 CLAMPCLAMP
-
92170A92170-1090 CLAMPCLAMP
-
92170B92170-1091 CLAMP, HOSECLAMP, HOSE
