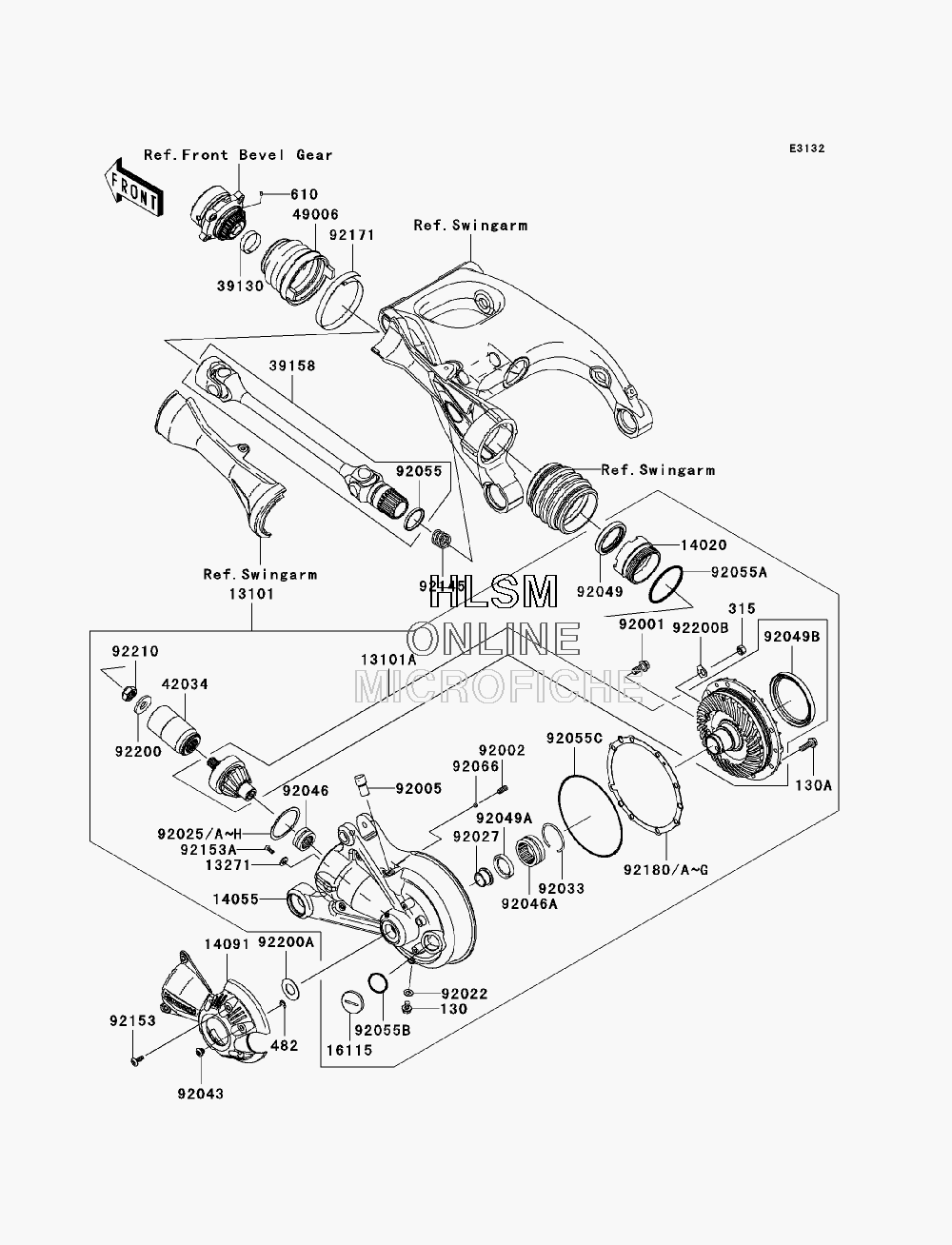

DRIVE SHAFT/FINAL GEAR для Kawasaki CONCOURS 14 (ZG1400B8F) - 2008 года выпуска
-
№АртикулНазвание
-
1310113101-0065-458 GEAR-ASSY, P.SILVERGEAR-ASSY, P.SILVER
-
13101A13101-5091 GEAR-ASSY, BEVEL, REARGEAR-ASSY, BEVEL, REAR
-
1327113271-0930 PLATEPLATE
-
1402014020-0010 RETAINERRETAINER
-
1405514055-0034-458 CASE-GEAR, P.SILVERCASE-GEAR, P.SILVER
-
1409114091-0908 COVER, DRIVE SHAFTCOVER, DRIVE SHAFT
-
1611516115-1070 CAP-OIL FILLERCAP-OIL FILLER
-
3913039130-1002 SPRING-LEAFSPRING-LEAF
-
3915839158-0004 SHAFT-ASSY-DRIVESHAFT-ASSY-DRIVE
-
4203442034-0039 COUPLINGCOUPLING
-
4900649006-0070 BOOTBOOT
-
9200192001-1778 BOLT, 10X23BOLT, 10X23
-
9200292002-1836 SCREW-SET-SOCKET, 8X18SCREW-SET-SOCKET, 8X18
-
9200592005-0094 FITTINGFITTING
-
9202292022-1086 WASHER, 8.2X16X1WASHER, 8.2X16X1
-
9202592025-1733 SHIM, T=0.10SHIM, T=0.10
-
92025A92025-1734 SHIM, T=0.15SHIM, T=0.15
-
92025B92025-1735 SHIM, T=0.50SHIM, T=0.50
-
92025C92025-1736 SHIM, T=0.60SHIM, T=0.60
-
92025D92025-1737 SHIM, T=0.70SHIM, T=0.70
-
92025E92025-1738 SHIM, T=0.80SHIM, T=0.80
-
92025F92025-1739 SHIM, T=0.90SHIM, T=0.90
-
92025G92025-1740 SHIM, T=1.00SHIM, T=1.00
-
92025H92025-1741 SHIM, T=1.20SHIM, T=1.20
-
9202792027-1557 COLLARCOLLAR
-
9203392033-1074 RING-SNAP, 52MMRING-SNAP, 52MM
-
9204392043-0127 PINPIN
-
9204692046-1168 BEARING-NEEDLE, RNA4904ARDBEARING-NEEDLE, RNA4904ARD
-
92046A92046-1169 BEARING-NEEDLE, 38NQ5020WDBEARING-NEEDLE, 38NQ5020WD
-
9204992049-0085 SEAL-OIL, HTC 50 65 9SEAL-OIL, HTC 50 65 9
-
92049A92049-1025 SEAL-OIL, S-35477HSSEAL-OIL, S-35477HS
-
92049B92049-1280 SEAL-OIL, MHSA83X100X9XRTSEAL-OIL, MHSA83X100X9XRT
-
9205592055-0115 RING-ORING-O
-
92055A92055-0134 RING-O, 67.6X3.5RING-O, 67.6X3.5
-
92055B92055-049 RING-O, 31.7X2.4RING-O, 31.7X2.4
-
92055C92055-3771 RING-O, OUTSIDERING-O, OUTSIDE
-
9206692066-1272 PLUG, 6.2X3PLUG, 6.2X3
-
9214592145-0549 SPRING, 25.8X4.0X86.2SPRING, 25.8X4.0X86.2
-
9215392153-0816 BOLT, 6X18BOLT, 6X18
-
92153A92153-1787 BOLT, TORX, 5X15BOLT, TORX, 5X15
-
130130BB0812 BOLT-FLANGED, 8X12BOLT-FLANGED, 8X12
-
130A130BD0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
315315BA1000 NUT-HEX-FINE, 10MMNUT-HEX-FINE, 10MM
-
482482EA7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
610610A0406 ROLLER, 4X6ROLLER, 4X6
-
9217192171-1715 CLAMPCLAMP
-
9218092180-0263 SHIM, T=0.15SHIM, T=0.15
-
92180A92180-0264 SHIM, T=0.50SHIM, T=0.50
-
92180B92180-0265 SHIM, T=0.60SHIM, T=0.60
-
92180C92180-0266 SHIM, T=0.70SHIM, T=0.70
-
92180D92180-0267 SHIM, T=0.80SHIM, T=0.80
-
92180E92180-0268 SHIM, T=0.90SHIM, T=0.90
-
92180F92180-0269 SHIM, T=1.00SHIM, T=1.00
-
92180G92180-0270 SHIM, T=1.20SHIM, T=1.20
-
9220092200-0320 WASHER, 16X36X4WASHER, 16X36X4
-
92200A92200-0321 WASHER, 20.5X40X1.2WASHER, 20.5X40X1.2
-
92200B92200-1003 WASHERWASHER
-
9221092210-0354 NUT, 16MMNUT, 16MM
