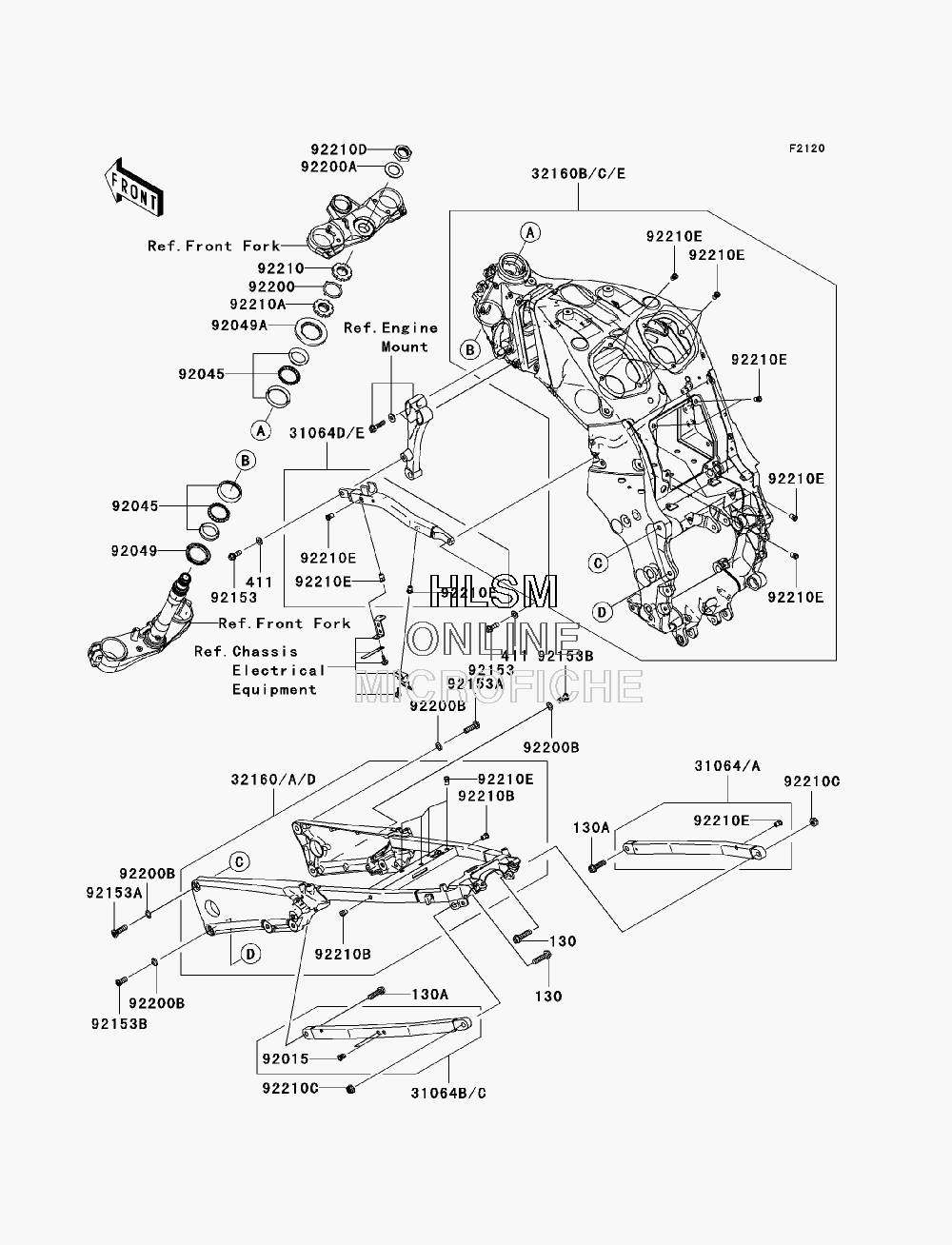

FRAME для Kawasaki NINJA ZX-14 (ZX1400C8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130BA1040 BOLT-FLANGED, 10X40BOLT-FLANGED, 10X40
-
130A130BB1035 BOLT-FLANGED, 10X35BOLT-FLANGED, 10X35
-
411411AA0800 WASHER-PLAINWASHER-PLAIN
-
3106431064-0045-18R PIPE-COMP, REAR, RIGHT HAND, BLACKPIPE-COMP, REAR, RIGHT HAND, BLACK
-
31064B31064-0065-18R PIPE-COMP, REAR, LEFT HAND, BLACKPIPE-COMP, REAR, LEFT HAND, BLACK
-
31064D31064-0099-18R PIPE-COMP, SUB FRAME, LEFT HAND, BLACKPIPE-COMP, SUB FRAME, LEFT HAND, BLACK
-
3216032160-0297-18R FRAME-COMP, REAR, BLACKFRAME-COMP, REAR, BLACK
-
32160B32160-0305-18R FRAME-COMP, FRONT, BLACKFRAME-COMP, FRONT, BLACK
-
9201592015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
9204592045-1384 BEARING-BALL, SF07A17PX1V1BEARING-BALL, SF07A17PX1V1
-
9204992049-0022 SEAL-OIL, DS35X55X4SEAL-OIL, DS35X55X4
-
92049A92049-1382 SEAL-OIL, XMH 43 75 6.4JSEAL-OIL, XMH 43 75 6.4J
-
9215392153-1768 BOLT, FLANGED, 8X25BOLT, FLANGED, 8X25
-
92153A92153-1904 BOLT, SOCKET, 10X35BOLT, SOCKET, 10X35
-
92153B92153-1905 BOLT, SOCKET, 10X22BOLT, SOCKET, 10X22
-
9220092200-0281 WASHERWASHER
-
92200A92200-0282 WASHER, 25.5X42X2.3WASHER, 25.5X42X2.3
-
92200B92200-0324 WASHER, 11X18X1WASHER, 11X18X1
-
9221092210-0095 NUT, 35MMNUT, 35MM
-
92210A92210-0096 NUT, 35MMNUT, 35MM
-
92210B92210-0324 NUT, POP, 6MM, L=16.5NUT, POP, 6MM, L=16.5
-
92210C92210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210D92210-1334 NUT, 25MMNUT, 25MM
-
92210E92210-1397 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
