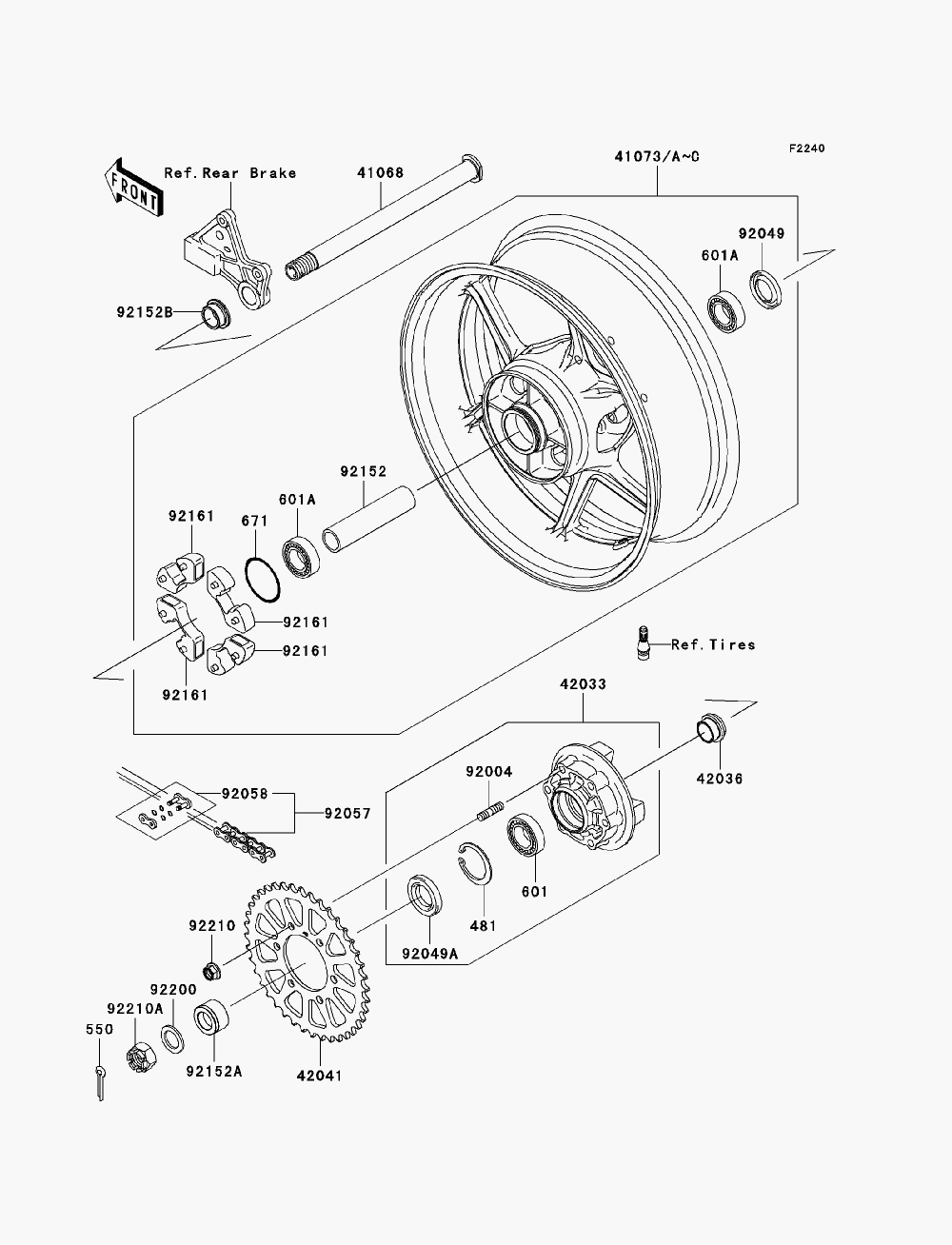

WHEEL - REAR W/ CHAIN для Kawasaki NINJA ZX-6R (ZX600P8F) - 2008 года выпуска
-
№АртикулНазвание
-
481481J5500 CIRCLIPCIRCLIP
-
550550D4040 PIN-COTTER, 4.0X40PIN-COTTER, 4.0X40
-
601601B6006G BEARING-BALL, #6006GBEARING-BALL, #6006G
-
601A601B6205UU BEARING-BALLBEARING-BALL
-
671671B2560 O RING, 60MMO RING, 60MM
-
4106841068-0035 AXLE, REARAXLE, REAR
-
4107341073-0106-R2 WHEEL-ASSY, REAR, BLACK (FOR 723;789)WHEEL-ASSY, REAR, BLACK (FOR 723;789)
-
41073C41073-0106-19T WHEEL-ASSY, REAR, L.GREEN (FOR 777)WHEEL-ASSY, REAR, L.GREEN (FOR 777)
-
4203342033-0026 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-1279 SLEEVE, REAR HUB, L=22SLEEVE, REAR HUB, L=22
-
4204142041-0017 SPROCKET-HUB, 43TSPROCKET-HUB, 43T
-
9200492004-0028 STUD, 10X19STUD, 10X19
-
9204992049-1375 SEAL-OIL, REAR HUBSEAL-OIL, REAR HUB
-
92049A92049-1376 SEAL-OIL, PJN 40 55 8SEAL-OIL, PJN 40 55 8
-
9205792057-0129 CHAIN, DRIVE, EK520MVXL1X112LCHAIN, DRIVE, EK520MVXL1X112L
-
9205892058-0007 JOINT-CHAIN, DRIVEJOINT-CHAIN, DRIVE
-
9215292152-0214 COLLAR, REAR HUB, L=137COLLAR, REAR HUB, L=137
-
92152A92152-0543 COLLAR, REAR HUB, LEFT HAND, L=23.5COLLAR, REAR HUB, LEFT HAND, L=23.5
-
92152B92152-0544 COLLAR, REAR HUB, RIGHT HAND, L=16COLLAR, REAR HUB, RIGHT HAND, L=16
-
9216192161-0342 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-0278 WASHER, 25.5X38X3.2WASHER, 25.5X38X3.2
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-0280 NUT, CASTLE, 24MMNUT, CASTLE, 24MM
